- RS Stock No.:
- 286-8202
- Mfr. Part No.:
- 6303
- Brand:
- SKF
7 In stock - FREE next working day delivery available
62 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.04
(exc. VAT)
£6.05
(inc. VAT)
Units | Per unit |
1 - 4 | £5.04 |
5 - 9 | £4.84 |
10 - 24 | £4.75 |
25 + | £4.63 |
- RS Stock No.:
- 286-8202
- Mfr. Part No.:
- 6303
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

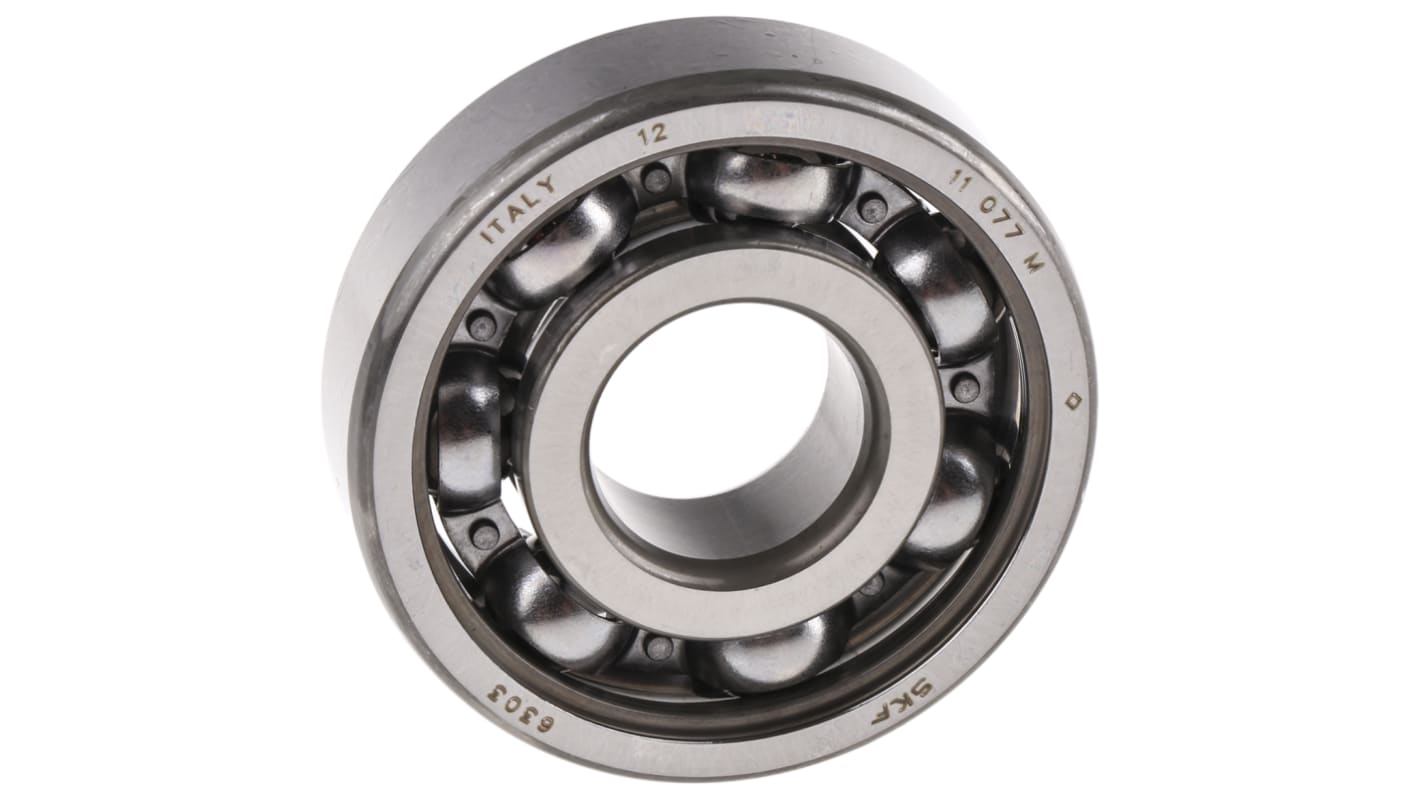

SKF Deep-Groove Ball Bearing, 17mm ID, 47mm OD - 6303
Need to balance both axial and radial loads in your rotating machinery? Choose this deep-groove ball bearing from SKF. It features a single row of rolling elements running in a smooth raceway to minimise the risk of friction. A reference speed rating of 34,000rpm and a limiting speed of 22,000rpm mean you can rely on it to support high-speed applications. The rolling elements are held by a robust cage to withstand vibration. This ball bearing is made from corrosion-resistant steel for durability and extended service life.
• Outer diameter of 47mm to fit on small shafts
• Fatigue load limit of 0.275kN to resist mechanical wear
• Cage is made from impact-resistant steel material for added durability
• Dynamic load rating of 14.3kN for stability in moving applications
• Fatigue load limit of 0.275kN to resist mechanical wear
• Cage is made from impact-resistant steel material for added durability
• Dynamic load rating of 14.3kN for stability in moving applications
Applications
• Material handling
• Medical and pharmaceutical industries
• Printing presses
• Medical and pharmaceutical industries
• Printing presses
Where should I use an open-end ball bearing?
You can use an open-end ball bearing in hygienic applications where there's minimal risk of contamination. Thanks to its open design that makes greasing easy, it's also suitable for use in challenging environments where consistent re-lubrication is needed.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 17mm |
Outside Diameter | 47mm |
Race Width | 14mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Open Type |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 6.55kN |
Dynamic Load Rating | 14.3kN |
Bore Type | Parallel |
Bearing Series | 3 Medium |
Race Type | Plain |
Partial Bearing Code | 6303 |
Model Number p | 6303 |
