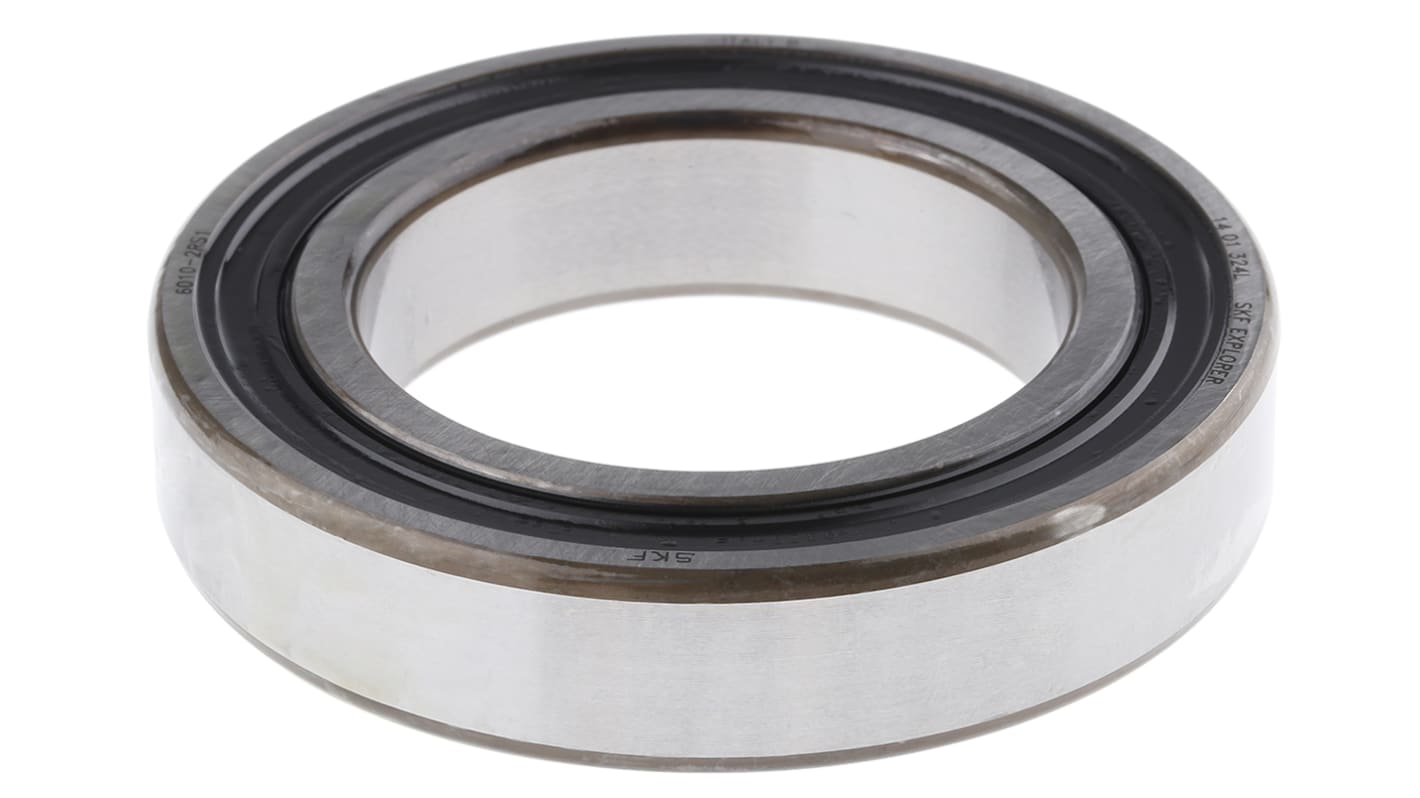

50mm Deep Groove Ball Bearing 80mm O.D

  • RS Stock No. 285-0784
  • Mfr. Part No. 6010-2RS1
  • Brand SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Deep Groove Metric Ball Bearings - Sealed

SKF sealed deep groove ball bearings are versatile ball bearings that suit high and very high speeds, they will accommodate both radial load and axial load in both directions. The ball bearings need very little maintenance. SKF deep groove ball bearings come in a range of different sizes. This range is single row ball bearings.

Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant and entry of dust, water and other harmful material.

Features and Benefits

- The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement
- Operating temperature from -40°C to +120°C
- Accepts radial and axial loads
- Both standard and C3 clearance available

Application Information

Food and Beverage Industry

-Pharmaceutical

-Medical industry

-Engines and Pumps

-Medical Industry

-Printing

-Versatile

More Information

What are deep groove ball bearings?

These are the most popular type of bearings and consists of an inner ring, outer ring, cage and the ball bearings. The bearings have deep raceway grooves. These type of bearings deliver high performance and high load capacity.

Why used sealed ball bearings?

Ball bearings that spin at high speeds require lubrication and a clean environment By having the ball bearings sealed this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.

Specifications
Attribute Value
Inside Diameter 50mm
Outside Diameter 80mm
Ball Bearing Type Deep Groove
Race Width 16mm
End Type Sealed
Number of Rows 1
Static Load Rating 16kN
Cage Material Steel
Race Type Plain
Dynamic Load Rating 22.9kN
Bore Type Parallel
24 in stock for FREE next working day delivery
56 available from Europe for delivery within 1 working day(s).
Price Each
£ 16.46
(exc. VAT)
£ 19.75
(inc. VAT)
Units
Per unit
1 - 4
£16.46
5 - 9
£15.80
10 - 24
£15.47
25 +
£15.14
