- RS Stock No.:
- 260-0564
- Mfr. Part No.:
- 623-2Z-CO7
- Brand:
- FAG
- RS Stock No.:
- 260-0564
- Mfr. Part No.:
- 623-2Z-CO7
- Brand:
- FAG
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

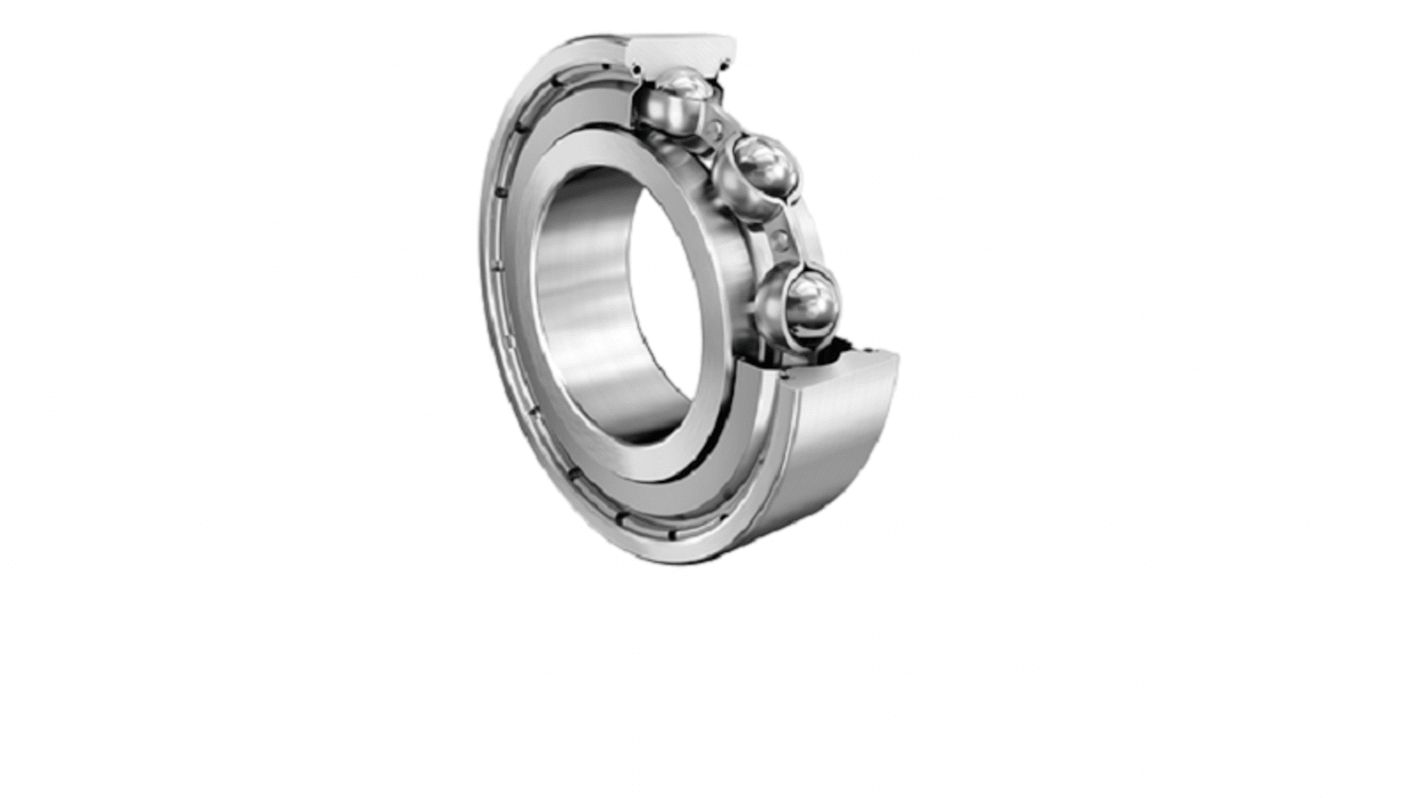

The FAG deep groove ball bearing has 3 mm bore diameter and 4 mm width with 12.8 calculation factor.
Operating temperature -20 to 120 °C
Specifications
Attribute | Value |
---|---|
Inside Diameter | 3mm |
Outside Diameter | 10mm |
Race Width | 4mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Both Sides Shielded |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Steel |
Number of Rows | 1 |
Static Load Rating | 226N |
Dynamic Load Rating | 641N |
Bore Type | Parallel |
Bearing Series | 2 Light |
Partial Bearing Code | 623 |
Race Type | Plain |
