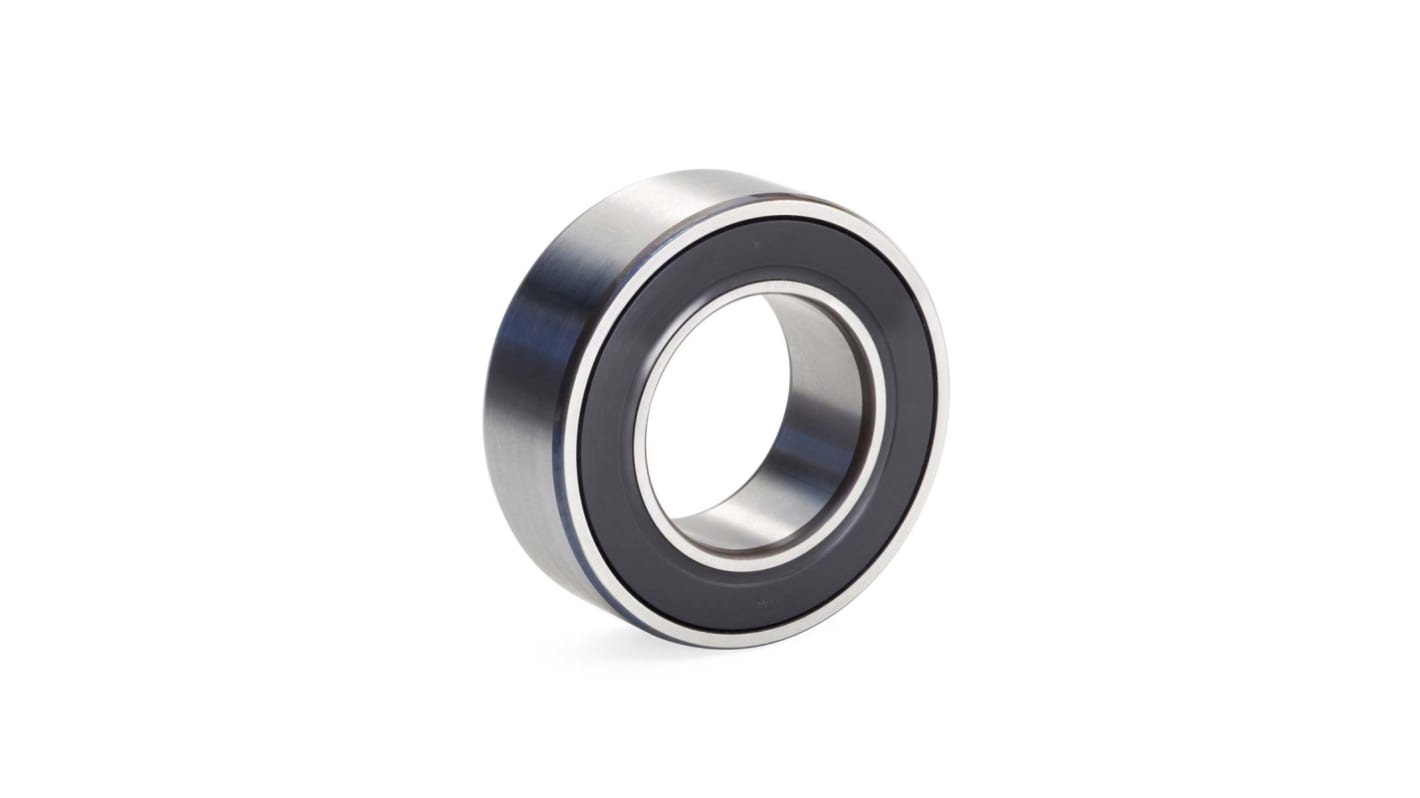

10mm Angular Contact Ball Bearing 30mm O.D

  • RS Stock No. 505-596
  • Mfr. Part No. 3200A-2RS1TN9/MT33
  • Brand SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Double Row - Angular Contact - Sealed Type

Angular Contact Bearings are ideally suited to applications requiring high rotating speeds, combined radial and axial loads and a high degree of stiffness and running accuracy.

High Performance - They have a high load carrying capacity and thus allow smaller bearings to be used while still providing long service life
Quieter and Cooler Running - With their optimal inner geometry, they run quieter and cooler and can tolerate longer maintenance intervals
Precise Shaft Guidance - Due to precision manufacturing processes, almost all SKF angular contacts exceed standard tolerances, to provide a smoother, truer running shaft with less heat and fewer vibrations
High Temperature Capability - They can withstand relatively high operating temperatures without significant loss of dimensional stability.
Integral Sealing Solution - Double-row angular contact ball bearings, with integral seals, are supplied with grease and do not require maintenance. MT33 grease has an operating temperature range of -30 to +120°C

Specifications
Attribute Value
Inside Diameter 10mm
Outside Diameter 30mm
Ball Bearing Type Angular Contact
Race Width 14mm
End Type Sealed
Number of Rows 2
Static Load Rating 4.3kN
Material Steel
Cage Material Fibreglass Reinforced Nylon 66
Race Type Plain
Dynamic Load Rating 7.61kN
Bore Type Parallel
29 In stock - FREE next working day delivery available
50 available from Europe for delivery within 1 working day(s).
Price Each
£ 24.40
(exc. VAT)
£ 29.28
(inc. VAT)
Units
Per unit
1 - 4
£24.40
5 - 9
£23.42
10 - 24
£22.93
25 +
£22.44
