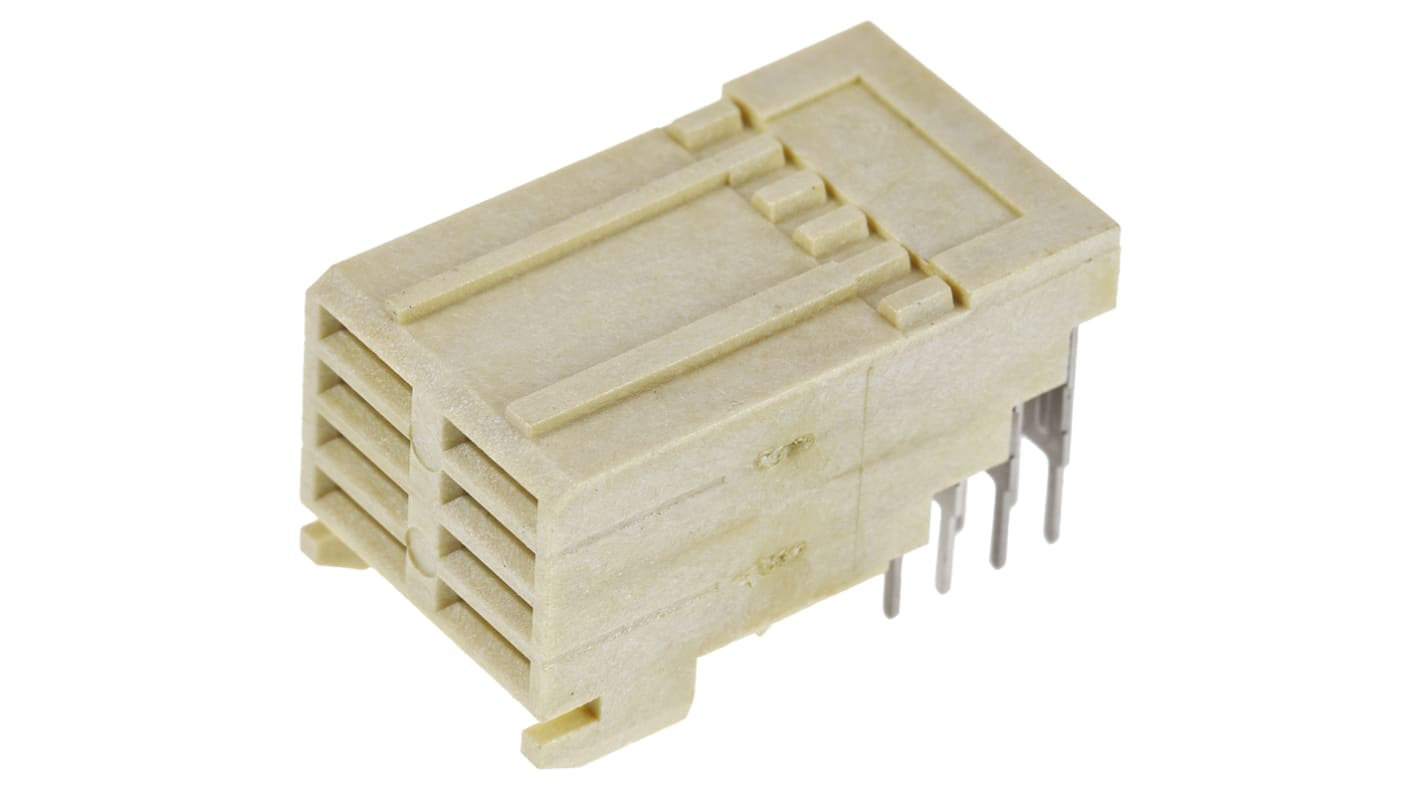

TE Connectivity, Z-PACK 2mm Pitch Futurebus+ Backplane Connector, Female, Right Angle, 8 Way
- RS Stock No.:
- 680-7793
- Mfr. Part No.:
- 5536607-1
- Brand:
- TE Connectivity
Discontinued product
- RS Stock No.:
- 680-7793
- Mfr. Part No.:
- 5536607-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Z-PACK™ 2mm FB (Futurebus+) Connectors
High density, high speed signal and power connectors
Modular design, end to end stackable
Complies with Futurebus+ and IEC 1076-4-0X-(48B)
Modular design, end to end stackable
Complies with Futurebus+ and IEC 1076-4-0X-(48B)
The Z-PACK 2 mm HM Interconnection System is designed as a two part system for the connection of free boards (Daughterboards or PCBs) to fixed boards (Motherboards, Backplane or Backpanel) and feed the connection through the fixed board.
Specifications
Attribute | Value |
|---|---|
| Backplane Connector Type | Futurebus+ |
| Gender | Female |
| Number of Contacts | 8 |
| Body Orientation | Right Angle |
| Housing Material | Liquid Crystal Polymer |
| Pitch | 2mm |
| Contact Material | Phosphor Bronze |
| Mounting Type | Through Hole |
| Contact Plating | Gold over Nickel |
| Voltage Rating | 30 V ac |
| Termination Method | Solder |
| Series | Z-PACK |
