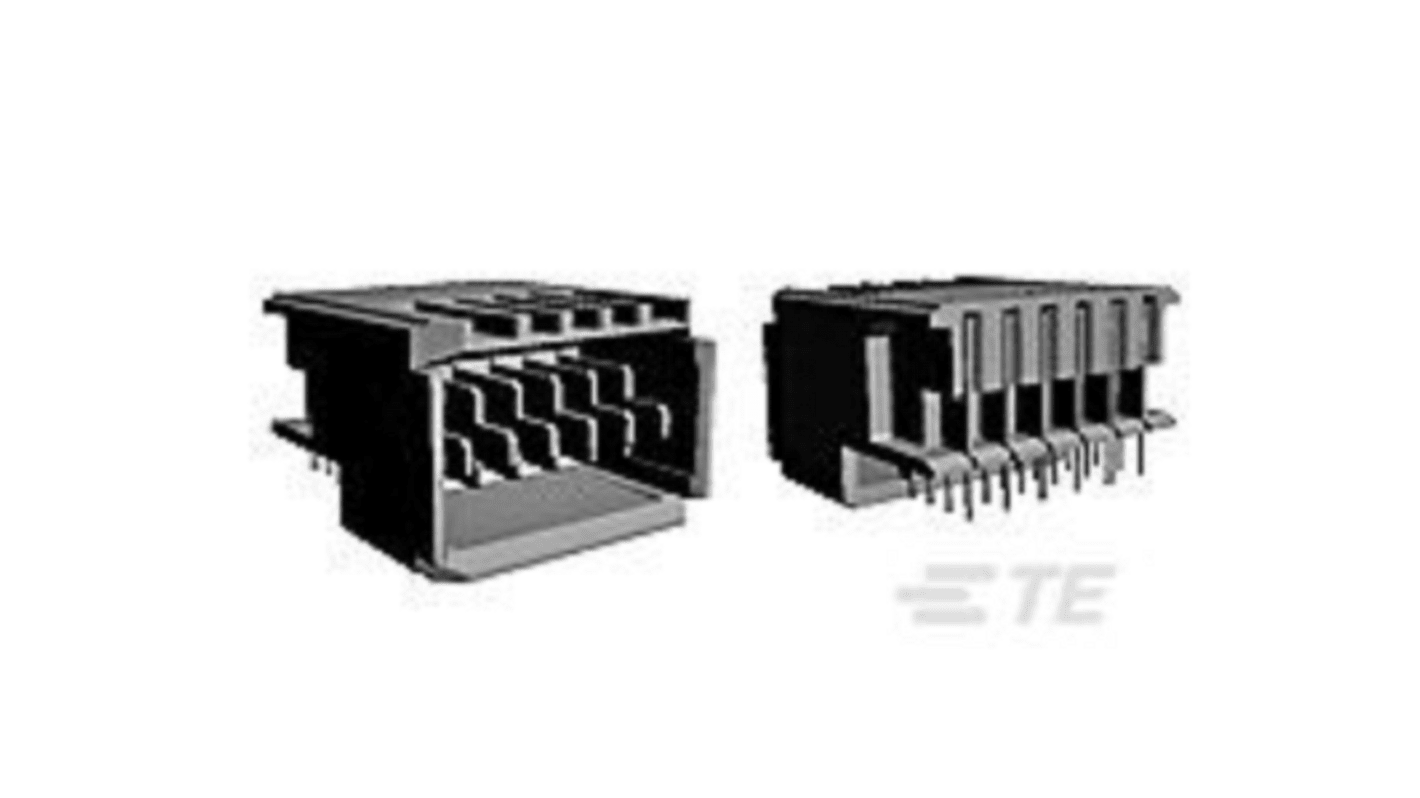

TE Connectivity, Z-PACK HM 2mm Pitch Backplane Connector, Right Angle, 1 Row, 4 Way
- RS Stock No.:
- 165-0770
- Mfr. Part No.:
- 120954-1
- Brand:
- TE Connectivity
Available to back order for despatch 02/07/2024
Added
Price Each (In a Tube of 38)
£7.056
(exc. VAT)
£8.467
(inc. VAT)
| Units | Per unit | Per Tube* |
| 38 + | £7.056 | £268.128 |
| *price indicative | ||
- RS Stock No.:
- 165-0770
- Mfr. Part No.:
- 120954-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Z-PACK™ HS3 Connectors
The TE Conectivity Z-PACK HS3 board to board backplane connector system has been designed for high speed serial data transfer. The controlled impedance microstrip path incorporated into the design of the Z-PACK HS3 minimises crosstalk and signal degradation. The HS3 is compatible with other Z-PACK family connectors as well as the Universal Power Module (UPM). The HS3 supports data rates of 6.2+ Gbits/s per differential pair.
The Z-PACK 2 mm HM Interconnection System is designed as a two part system for the connection of free boards (Daughterboards or PCBs) to fixed boards (Motherboards, Backplane or Backpanel) and feed the connection through the fixed board.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Pitch | 2mm |
| Mounting Type | Through Hole |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Termination Method | Press-Fit |
| Series | Z-PACK HM |
