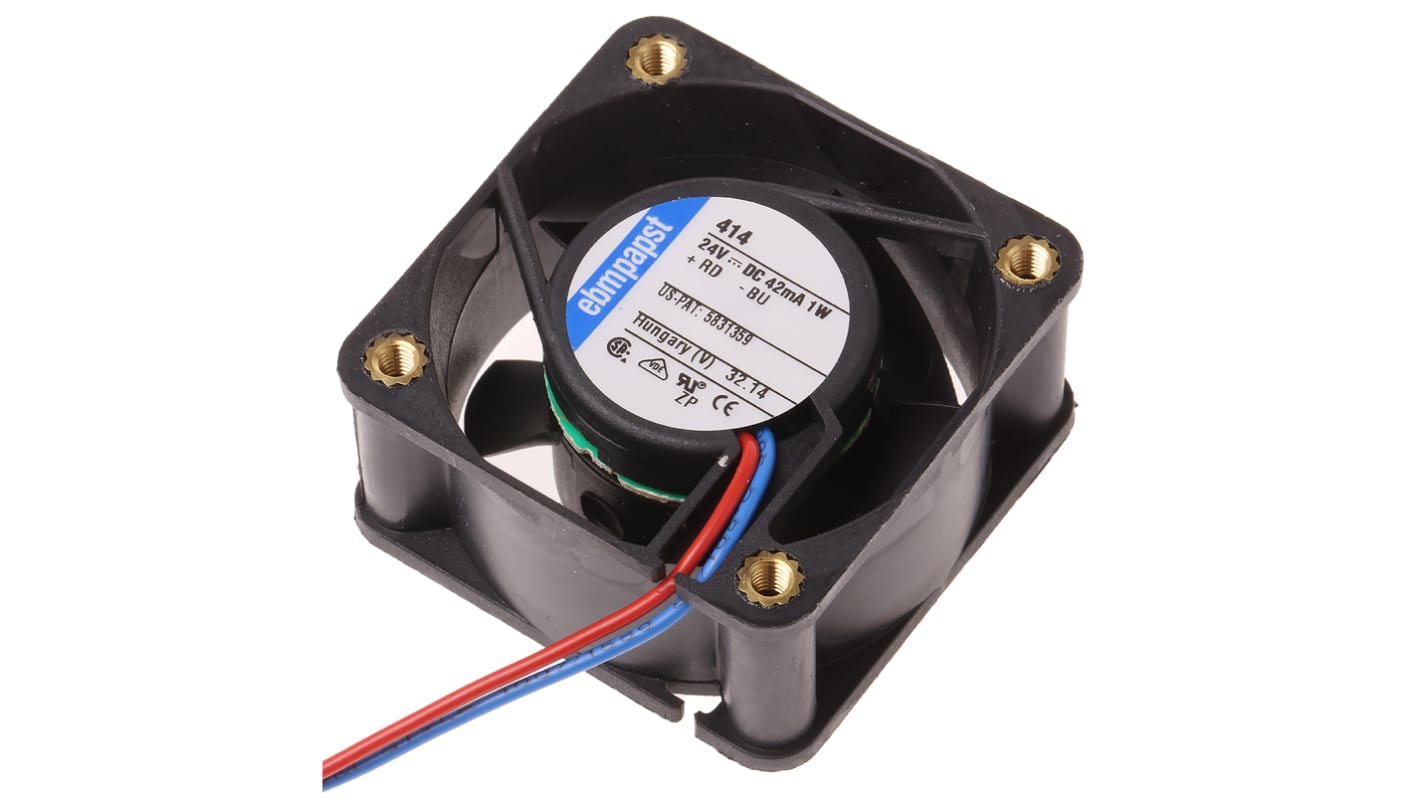

ebm-papst, 24 V dc, DC Axial Fan, 40 x 40 x 20mm, 10m³/h, 1W

  • RS Stock No. 745-0761
  • Mfr. Part No. 414-RS0
  • Brand ebm-papst
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

ebm-papst 400 Series Plug N' Play DC Axial Fans

Ebm-papst make the mounting and installing of their fans even easier with the Plug n’ Play versions of their 400 series fans. With pre-fitted molex connector and threaded brass inserts, Plug n’ Play compact axial fans save you time and effort while installing.

Features and Benefits

• Air exhaust over struts
• Connection via fitted molex connector
• IP20 protection

Applications

With their easy installation and high service life, these Plug N’ Play fans are ideal for PC cooling applications.

FAQ

Q: Is the fan easy to operate?

A: With completely integrated electronic communication, the fans require little input from the user to operate. The threaded brass inserts are ideal for quick and easy mounting, while the pre-fitted molex connector means that no complex wiring is required for connection.

Q: Is the fan durable?

A: 400 series Plug N’ Play axial fans have plastic housing, and are protected against a degree of particle ingress as standard.

Q: Are there accessories available for this fan?

A: There is a finger guard (251-081) available for this series of fans.

Specifications
Attribute Value
Supply Voltage 24 V dc
Dimensions 40 x 40 x 20mm
AC or DC Operation DC
Height 40mm
Power Consumption 1W
Width 40mm
Depth 20mm
Air Flow 10m³/h
Noise Level 18dB
Fan Speed 6000rpm
Bearing Type Sleeve
33 In stock for FREE next working day delivery
Price Each
£ 22.14
(exc. VAT)
£ 26.57
(inc. VAT)
Units
Per unit
1 - 4
£22.14
5 - 9
£19.37
10 - 19
£17.71
20 +
£16.05
