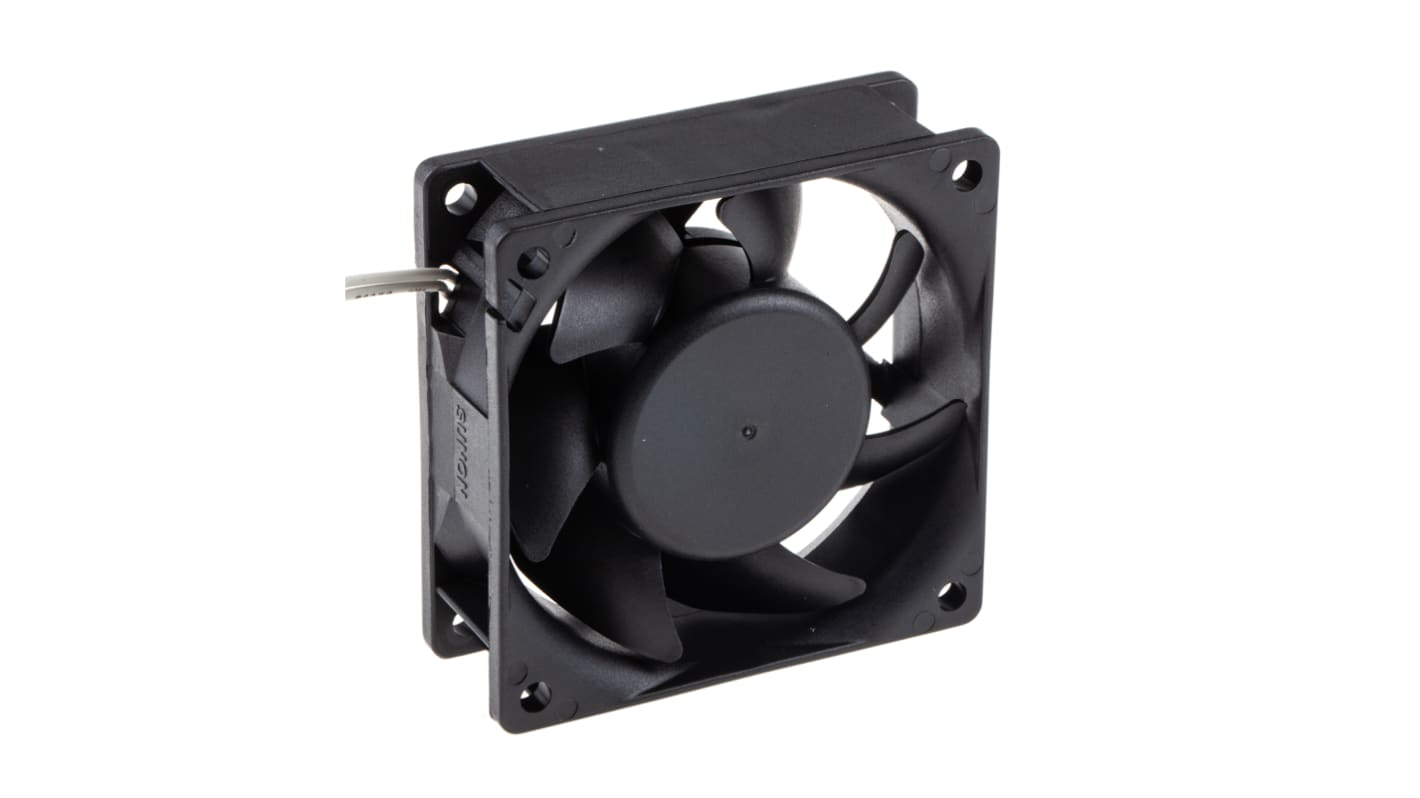

Sunon, 220 → 240 V ac, AC Axial Fan, 70 x 70 x 25mm, 49.3m³/h, 4.4W

  • RS Stock No. 126-212
  • Mfr. Part No. MA2072-HVL.GN
  • Brand Sunon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

AC Axial Fan

Advanced motor design incorporates the high performance and high efficiency of a DC motor but with AC supply, resulting in an AC fan which outperforms any similarly sized conventional AC fan.

220-240 Vac 50-60Hz operation
High efficiency and high performance
Outstanding airflow/size ratio
Maglev bearing system – high reliability

Approvals

UL, CE

Sunon Maglev AC Axial Fan

The Sunon Maglev axial fan has 3900rpm motor speed. It has a supply voltage rating ranging from 220VAC to 240VAC and dimensions of 70mm x 70mm x 25mm. An extended ball bearing life ensures fault-free use for a significant period. This ensures ebm-papst AC fans provide a flexible and dependable cooling solution for applications that require an axial fan to be mounted in any axial position. This fan has a power consumption rating of 4.4W.

Features and Benefits

• High efficiency and high performance
• Outstanding airflow/size ratio
• Maglev bearing system – High-reliability

Applications

• Air conditioners
• Heaters
• Medical equipment
• Automation control equipment

Certifications

• UL approved
• CE certified

Approvals

UL, CE

Specifications
Attribute Value
Dimensions 70 x 70 x 25mm
Supply Voltage 220 → 240 V ac
Height 70mm
AC or DC Operation AC
Width 70mm
Power Consumption 4.4W
Maximum Current 220mA
Depth 25mm
Air Flow 49.3m³/h
Noise Level 31dB
Fan Speed 3900rpm
Bearing Type Vapo
48 In stock for FREE next working day delivery
Price Each
£ 20.78
(exc. VAT)
£ 24.94
(inc. VAT)
Units
Per unit
1 - 4
£20.78
5 - 9
£19.33
10 +
£15.45
