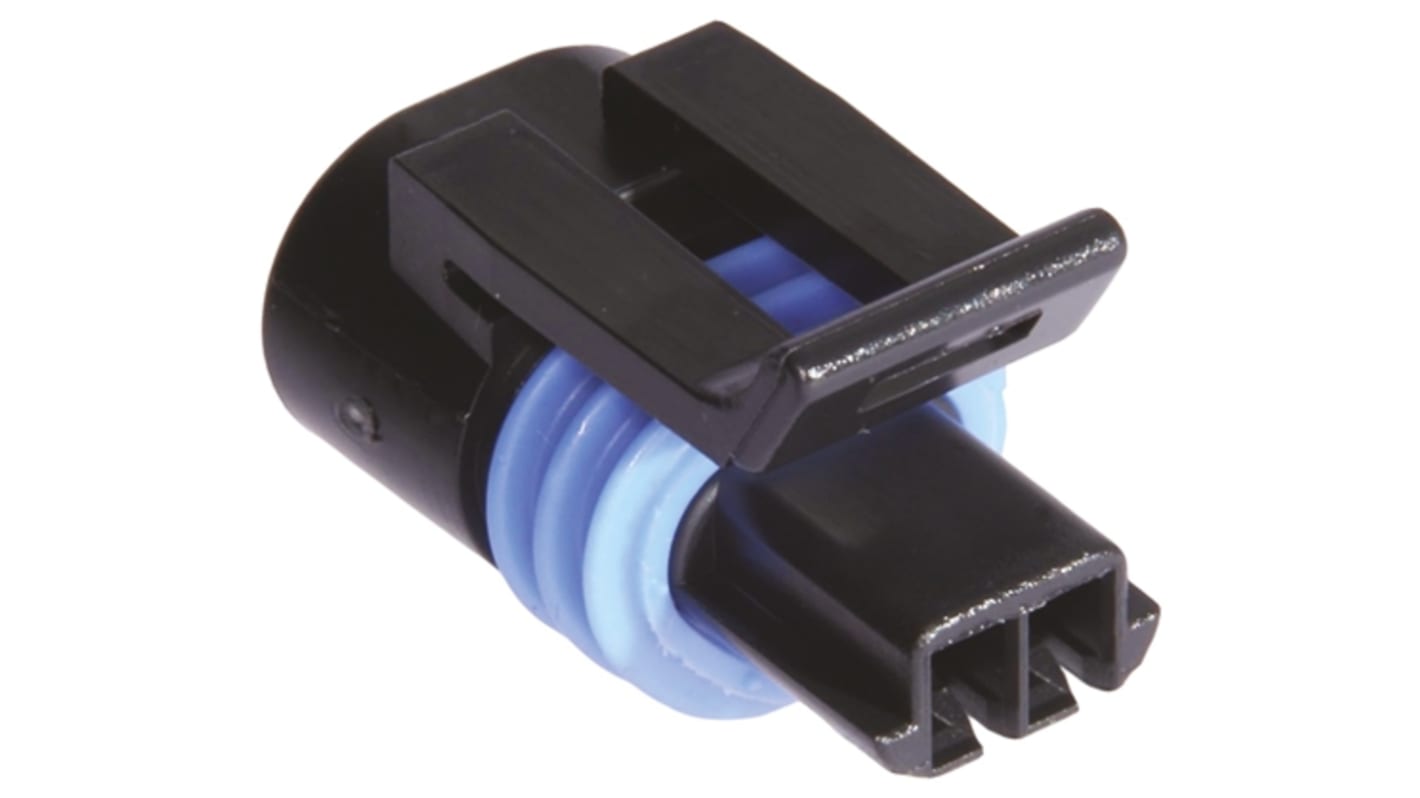

Delphi, Metri-Pack 150.2 Pull-To-Seat Automotive Connector Socket 2 Way, Crimp Termination

  • RS Stock No. 923-2209
  • Mfr. Part No. 12162193
  • Brand Delphi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi Metri-Pack 150.2 Pull-to-Seat Automotive Device Connectors

Metri-Pack 150.2 Pull-to-Seat automotive device connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150.2 Pull-to-Seat automotive device connectors are for use with specific automotive applications.
Stock numbers 801-1017 and 801-1011 are for use with temperature sensors
Stock numbers 801-1020 and 801-1023 are for use with crankshaft sensors
Stock number 801-1027 is for use wth distributor modules
Stock number 801-1036 can be used in various applications
For pull-to-seat crimp terminals see stock numbers 801-1095 and 801-1099

Delphi Metri-Pack 150.2 Series Pull-to-Seat Automotive Device Connectors

Specifications
Attribute Value
Type Automotive Connector
Number of Contacts 2
Gender Female
Number of Rows 1
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack 150.2 Pull-To-Seat
Colour Black
Termination Method Crimp
Height 18.4mm
Width 16mm
Depth 27.1mm
Maximum Operating Temperature +125°C
Housing Material PA
Minimum Operating Temperature -40°C
3000 In stock - FREE next working day delivery available
Price Each (In a Box of 3000)
£ 0.977
(exc. VAT)
£ 1.172
(inc. VAT)
Units
Per unit
Per Box*
3000 - 27000
£0.977
£2,931.00
30000 - 72000
£0.872
£2,616.00
75000 +
£0.829
£2,487.00
*price indicative
