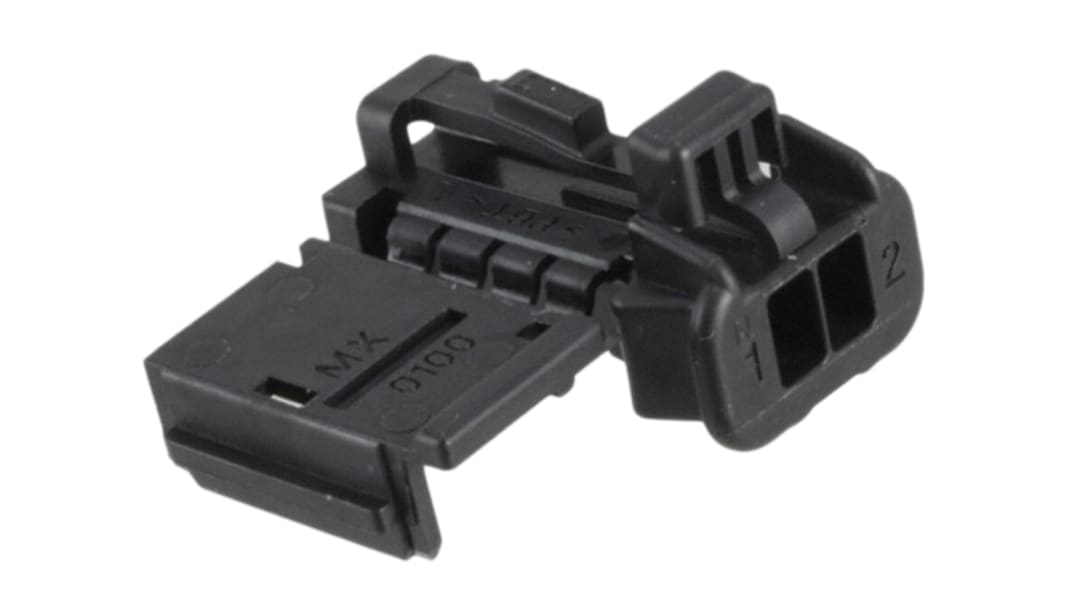

Molex NSCC Series, 98817 Series Number, 1 Row 2 Way Wire Mount Socket Housing, with Crimp Termination Method

  • RS Stock No. 904-8130
  • Mfr. Part No. 98817-1021
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Molex 1.50mm NSCC Series Wire to Wire Crimp Receptacle Housing, Series Number 98817

1.50mm NSCC series unsealed wire to wire automotive crimp receptacle housing which forms part of a connector system designed for carrying power for unsealed automotive body electronics applications. These 1.5mm NSCC automotive receptacle housing connectors have a robust one piece design with an integral hinged TPA for easy harness assembly. A "Go/No-go" locking system provides an audible click that ensures the connectors are securely locked to their mating counterparts and colour coding provides a visual aid for accurate installation.
Typical applications for these NSCC wire to wire crimp receptacle housings include electronic and electrical modules in automotive, commercial vehicles and agricultural equipment: steering alarm systems, electric windows, door-to-body connections, electric and heated seats, loudspeakers and airbag connection systems
These NSC automotive crimp receptacle housings have a mating interface pitch of 3.33mm and accept 2 x 1.5mm receptacle terminals (see stock number 848-6752) and mate with 98822 series male NSCC plug connectors (see stock number 841-1824)

Molex NSCC Power Connector System

Specifications
Attribute Value
Type Housing
Number of Contacts 2
Gender Female
Number of Rows 1
Current Rating 10A
Mounting Type Wire Mount
Series NSCC
Colour Black
Termination Method Crimp
Height 14.1mm
Width 14.4mm
Depth 24.2mm
Contact Material Copper Alloy
Housing Material PBT
Maximum Operating Temperature +100°C
Series Number 98817
Minimum Operating Temperature -40°C
Contact Plating Tin
5775 In stock for FREE next working day delivery
Price Each (In a Pack of 25)
£ 0.235
(exc. VAT)
£ 0.282
(inc. VAT)
Units
Per unit
Per Pack*
25 - 25
£0.235
£5.875
50 - 75
£0.196
£4.90
100 - 475
£0.186
£4.65
500 - 1975
£0.177
£4.425
2000 +
£0.167
£4.175
*price indicative
