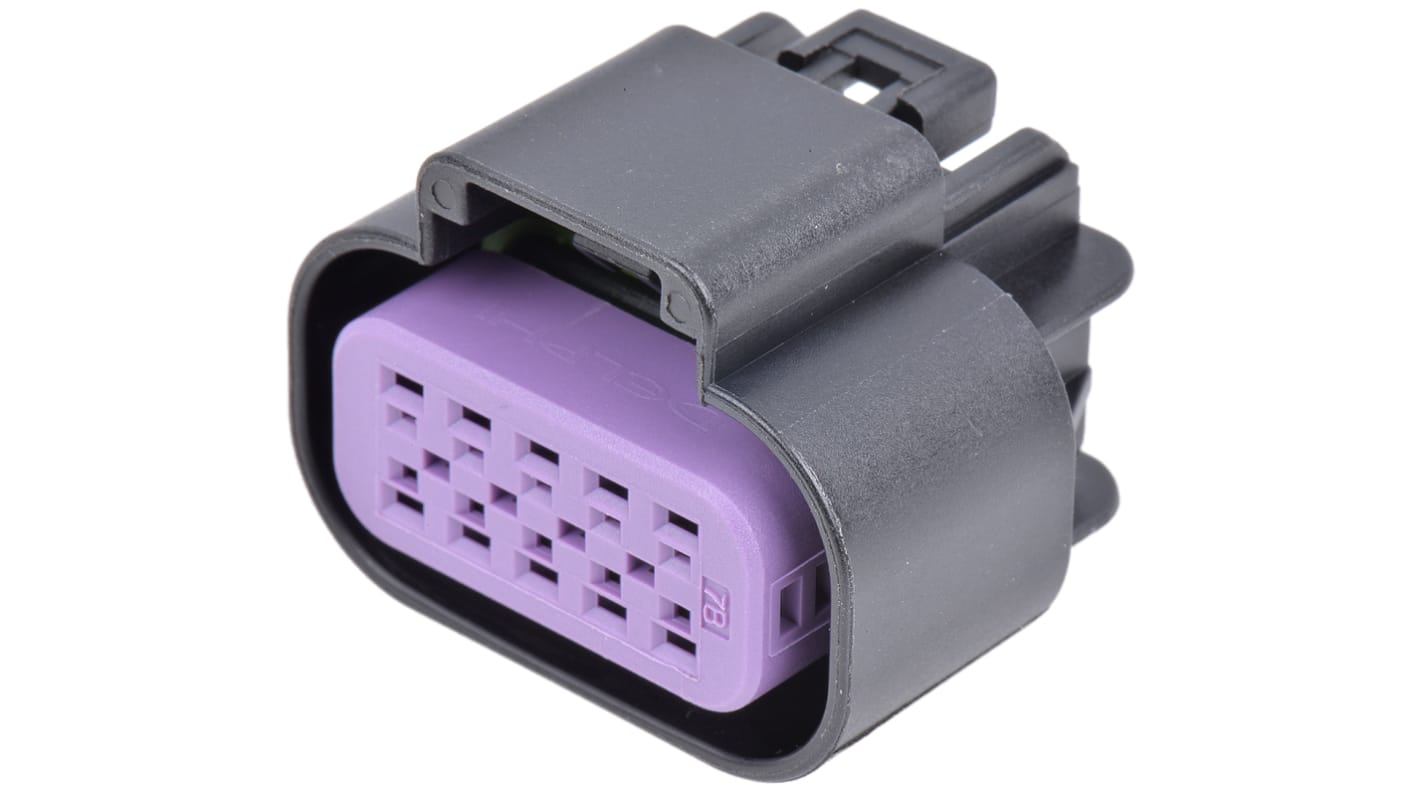

Delphi, GT 150 4 Row 10 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 896-1962
  • Mfr. Part No. 15326842
  • Brand Delphi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): AT
Product Details

Delphi GT150 Sealed Female Automotive Connectors

The Delphi GT150 series of sealed female automotive connectors have a 1.5mm blade width.These automotive connectors have silver interface platings which pass the SAE ® J2030 Heavy Duty Connector standard.The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.

Delphi GT150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 10
Type Connector
Gender Female
Number of Rows 4
Current Rating 15A
Mounting Type Cable Mount
Series GT 150
Colour Black
Termination Method Crimp
Height 28.2mm
Width 37.2mm
Depth 29.3mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Contact Plating Tin
Housing Material PA 6
Contact Material Tin Brass
190 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 2.588
(exc. VAT)
£ 3.106
(inc. VAT)
Units
Per unit
Per Pack*
10 - 90
£2.588
£25.88
100 - 240
£2.327
£23.27
250 - 490
£2.199
£21.99
500 - 990
£2.072
£20.72
1000 +
£1.941
£19.41
*price indicative
