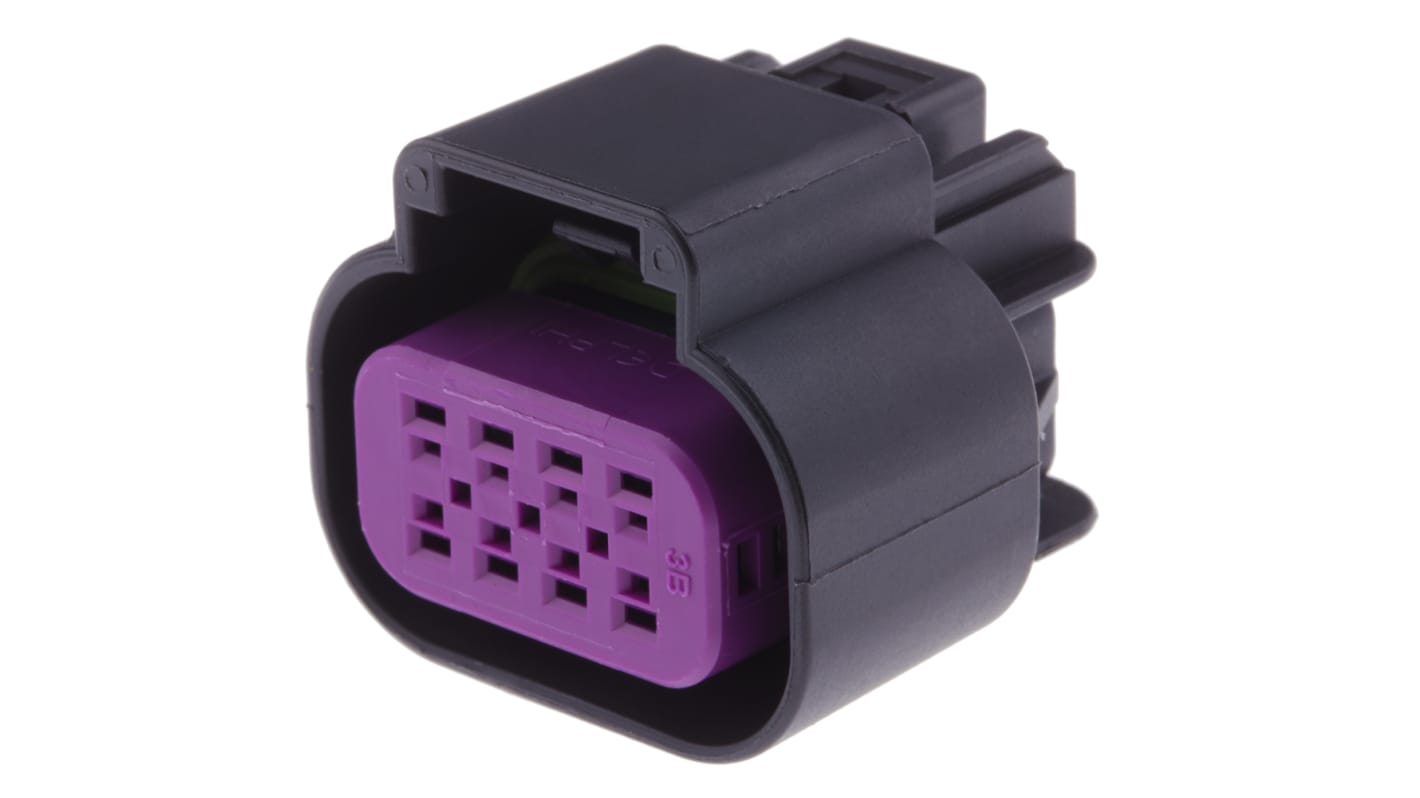

Delphi GT 150 Series, 4 Row 8 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 896-1950
  • Mfr. Part No. 15326835
  • Brand Delphi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi GT150 Sealed Female Automotive Connectors

The Delphi GT150 series of sealed female automotive connectors have a 1.5mm blade width.These automotive connectors have silver interface platings which pass the SAE ® J2030 Heavy Duty Connector standard.The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.

Delphi GT150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 8
Type Connector
Gender Female
Number of Rows 4
Current Rating 15A
Mounting Type Cable Mount
Series GT 150
Colour Black
Termination Method Crimp
Height 28.2mm
Width 32.7mm
Depth 29.3mm
Contact Plating Tin
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Contact Material Tin Brass
Housing Material PA 6
270 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 2.774
(exc. VAT)
£ 3.329
(inc. VAT)
Units
Per unit
Per Pack*
10 - 90
£2.774
£27.74
100 - 240
£2.497
£24.97
250 - 490
£2.358
£23.58
500 - 990
£2.22
£22.20
1000 +
£2.08
£20.80
*price indicative
