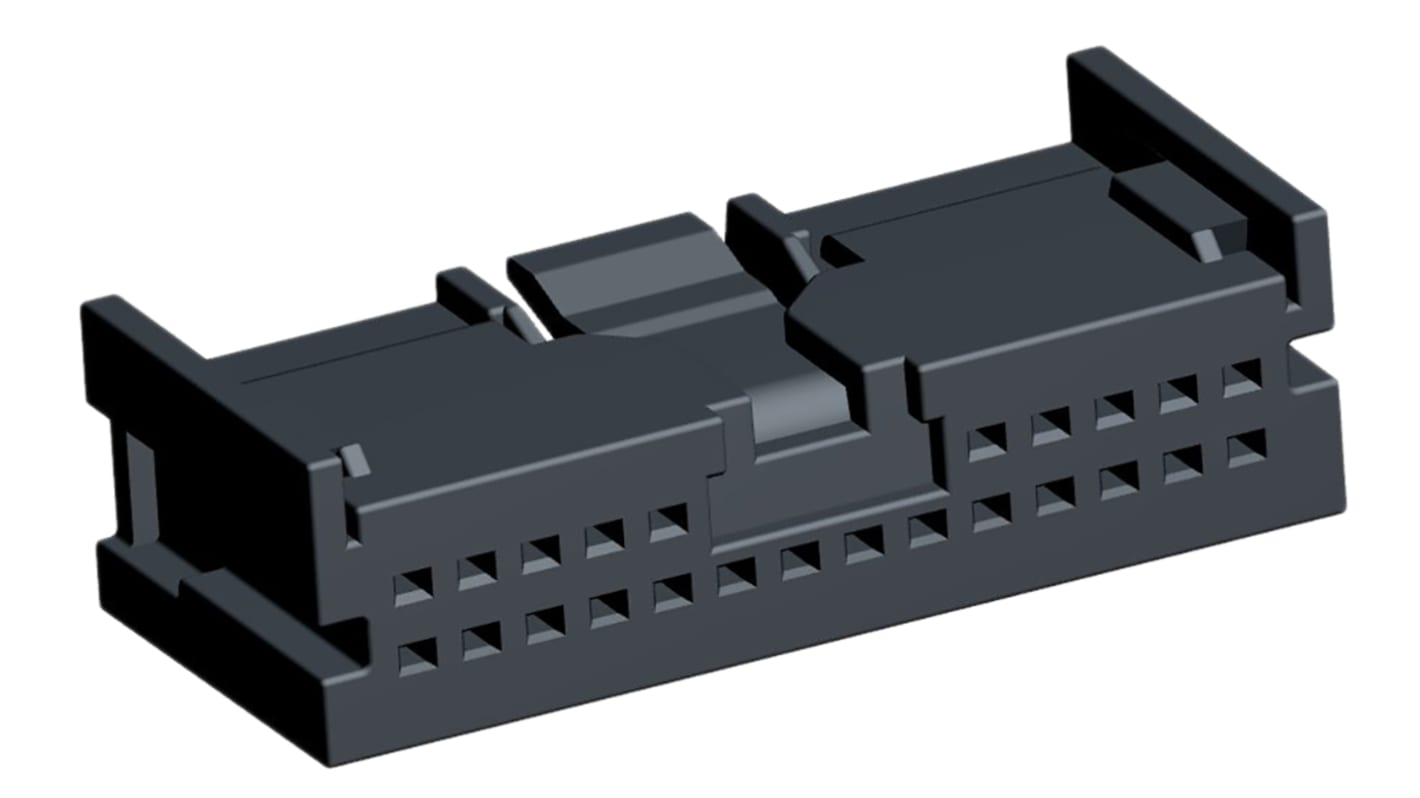

Molex, Mini50 Automotive Connector Socket 24 Way, Crimp Termination

  • RS Stock No. 884-2518
  • Mfr. Part No. 34824-0240
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Molex Mini50™ Unsealed Automotive Receptacle Housings

Mini50™ Unsealed cable mount automotive receptacle style crimp housings with an industry approved USCAR 050 interface. These Mini50™ automotive connector crimp housings are made from high temperature thermoplastic and feature a built in independent secondary lock that secures the terminal inside the housing, keying and polarization. Typical applications for these Mini50™ receptacle housings include internal automotive and commercial vehicle transportation applications such as mirrors, cameras, interior lighting, radios, switches, cluster/navigation and HVAC. For mating connectors please see the Mini50™ Unsealed automotive PCB automotive headers (stock number 884-2492 typically)

Molex 2.00mm Mini50 Automotive Connectors

The Mini50 series automotive connector system with its compact, low profile design and small footprint offers 50% space savings over traditional USCAR 0.64 mm connectors. The smaller terminals of the Mini50 series automotive connectors enable more signals to be fitted into vehicle interiors. The Mini50 connector system is designed and tested to USCAR 050 specifications and is approved as the industry’s only USCAR 050 interface.

Specifications
Attribute Value
Type Crimp Housing
Number of Contacts 24
Gender Female
Number of Rows 2
Mounting Type Free Hanging
Series Mini50
Colour Black
Termination Method Crimp
Height 9.43mm
Width 32.1mm
Depth 14.25mm
Series Number 34824
Housing Material PBT
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Available to back order for despatch 06/10/2020
Price Each (In a Pack of 10)
£ 0.758
(exc. VAT)
£ 0.91
(inc. VAT)
Units
Per unit
Per Pack*
10 - 40
£0.758
£7.58
50 - 90
£0.665
£6.65
100 - 240
£0.552
£5.52
250 - 490
£0.478
£4.78
500 +
£0.453
£4.53
*price indicative
