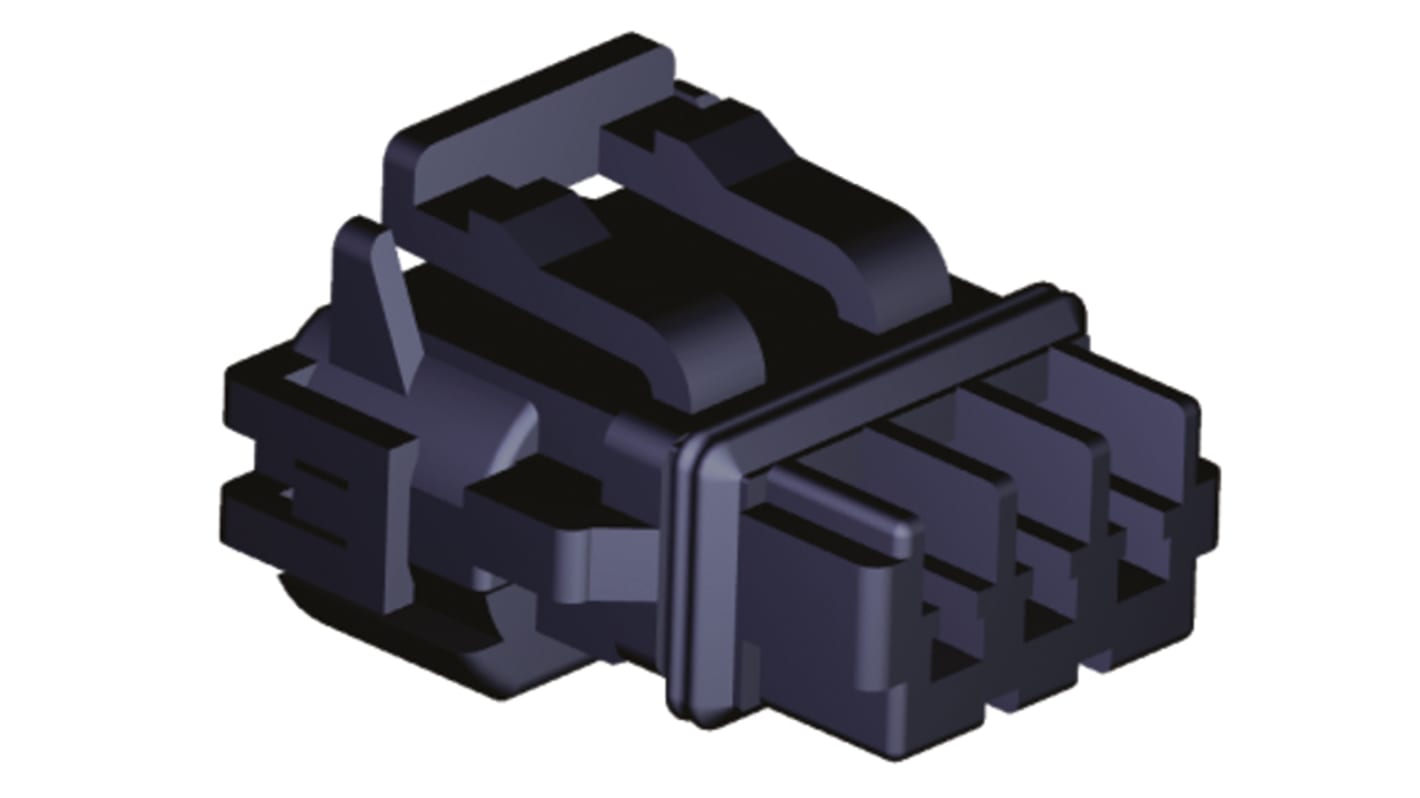

Molex, Mizu-P25 Automotive Connector Socket 3 Way, Crimp Termination
- RS Stock No.:
- 841-1833
- Mfr. Part No.:
- 52117-0341
- Brand:
- Molex
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 5)
£2.048
(exc. VAT)
£2.458
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £2.048 | £10.24 |
| 25 - 95 | £1.488 | £7.44 |
| 100 + | £1.392 | £6.96 |
| *price indicative | ||
- RS Stock No.:
- 841-1833
- Mfr. Part No.:
- 52117-0341
- Brand:
- Molex
Legislation and Compliance
Product Details
Mizu-P25 250 Volts Type IP67 Waterproof Receptacle - 52117 Series
These Molex Mizu-P25 IP67 72117 series Sealed Receptacles have an inner positive lock to provide secure connection.
For female Crimp Terminal contacts see stock number 797-8711 .
For female Crimp Terminal contacts see stock number 797-8711 .
White Mizu-P25 part numbers end in 72117-xxx0
Black Mizu-P25 part numbers end in 72117-xxx1
Black Mizu-P25 part numbers end in 72117-xxx1
Molex Splash Proof Range
The Molex Mizu-P25 Sealed Wire-to-Wire range of automotive connectors features a unique seal stopper to provide waterproof protection coupled with a low-insertion force. These Mizu-P25 connectors have friction locks to save space and protect the latch plus polarizing ribs for correct mating on assembly. The Mizu-P25 terminals have a spring-beam design to provide high-pressure with a small-deflection ideal for high-vibration applications. These Mizu-P25 connectors also meet the JIS DO203S2 waterproof compliant standards.
Specifications
Attribute | Value |
|---|---|
| Type | Crimp Housing |
| Number of Contacts | 3 |
| Gender | Female |
| Number of Rows | 1 |
| Current Rating | 3A |
| Mounting Type | Cable Mount |
| Series | Mizu-P25 |
| Colour | Black |
| Termination Method | Crimp |
| Height | 12.4mm |
| Width | 12.2mm |
| Depth | 15.7mm |
| Housing Material | PET |
| Maximum Operating Temperature | +105°C |
| Series Number | 52117 |
| Minimum Operating Temperature | -40°C |
