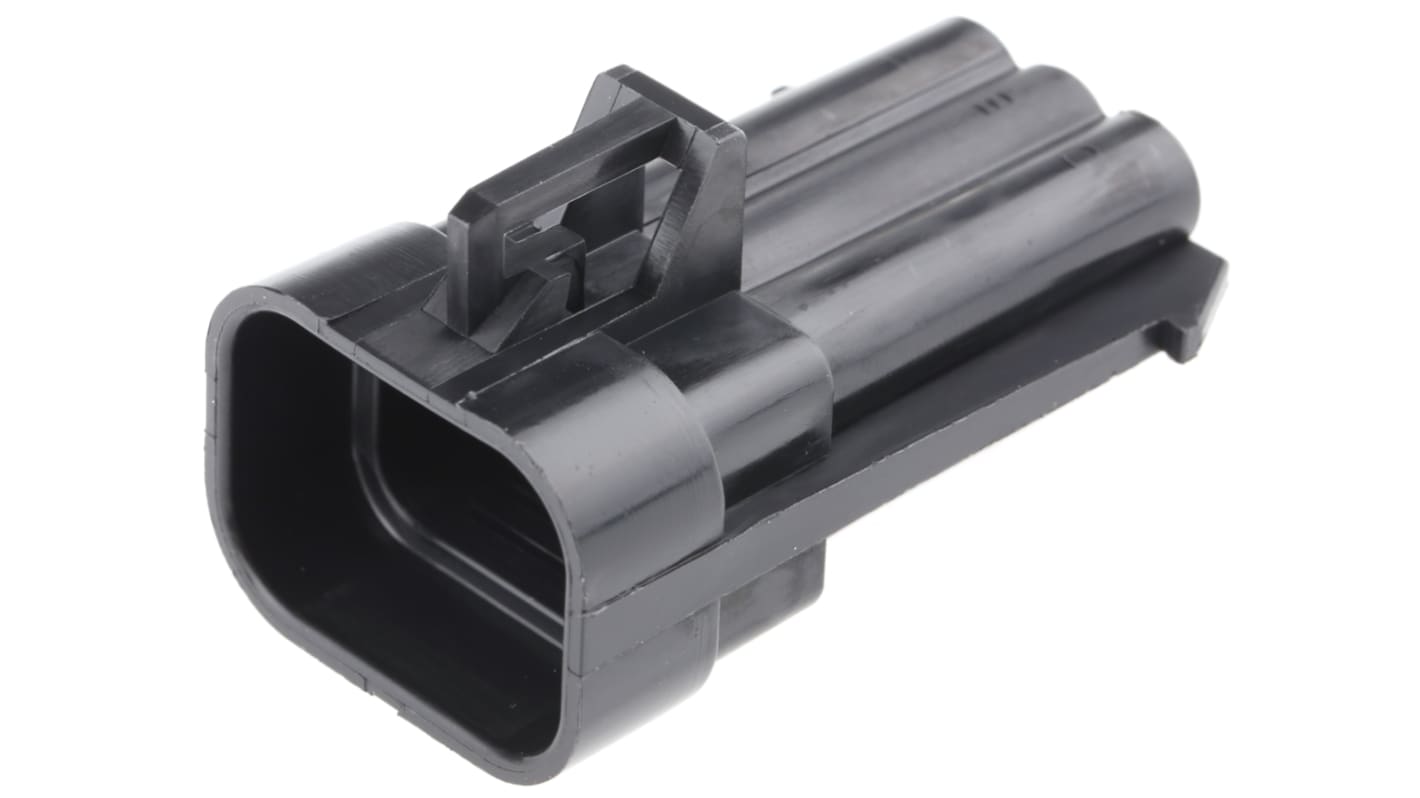

Delphi, Metri-Pack 150 Automotive Connector Plug 6 Way, Crimp Termination
- RS Stock No.:
- 801-0929
- Mfr. Part No.:
- 12124107
- Brand:
- Delphi
639 In stock - FREE next working day delivery available
90 available from Europe for delivery within 1 working day(s).
Added
Price Each
£1.53
(exc. VAT)
£1.84
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £1.53 |
| 10 - 99 | £1.40 |
| 100 + | £1.26 |
- RS Stock No.:
- 801-0929
- Mfr. Part No.:
- 12124107
- Brand:
- Delphi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Delphi Metri-Pack 150 Sealed Male Automotive Connectors
Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.
Standards
Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.
Delphi Metri-Pack 150 Series Automotive Connectors
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Type | Automotive Connector |
| Gender | Male |
| Number of Rows | 2 |
| Current Rating | 14A |
| Mounting Type | Cable Mount |
| Series | Metri-Pack 150 |
| Colour | Black |
| Termination Method | Crimp |
| Height | 28.1mm |
| Width | 29mm |
| Housing Material | PA |
| Depth | 45.5mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
