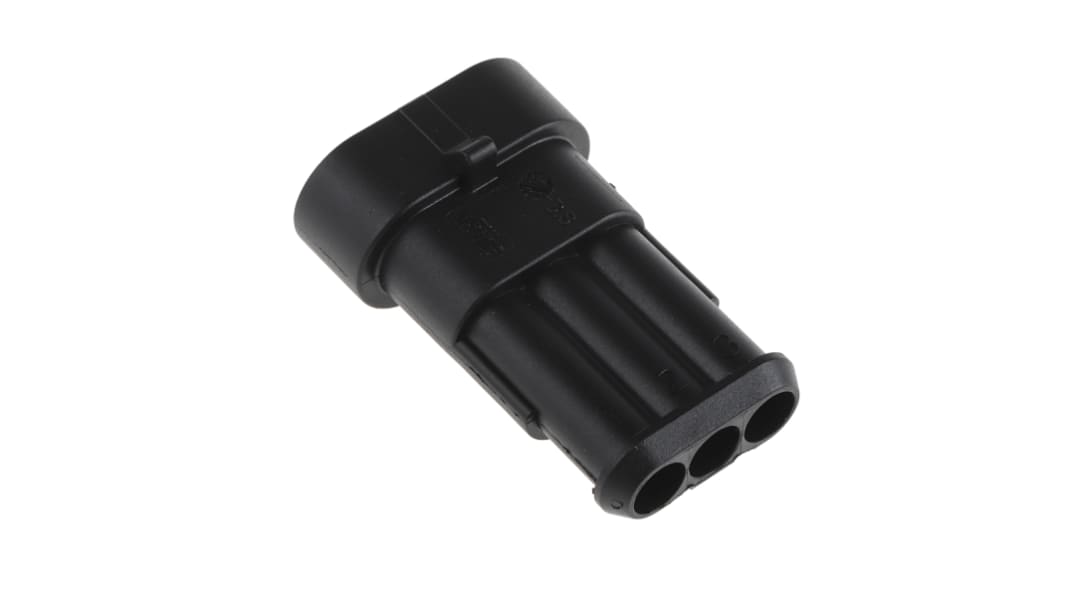

TE Connectivity AMP Superseal 1.5 Male Connector Housing, 6mm Pitch, 3 Way, 1 Row

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity 1.5 Superseal Series, Connector Housings - AMP Superseal 1.5

Our range of TE Connectivity, PCB Connector Housings form part of the 1.5 superseal series. A typical applications for these types of housings are to provide a receptacle for connectors when they ate mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connection that it is housing.

Features and Benefits

• Comprised of black 6.6 glass filled poly-amide
• 1 - 6 positions
• Plug housings for receptacle contacts, cap housings and tab contact variants
• Pre-assembled secondary lock
• Silicon rubber seals
• Panel or cable mount
• Temperature range of the 1.5 mm pitch superseal series is of -40 to +125°C
• Suitable for powertrain, security, and body & chassis systems
• Dielectric withstand voltage 1500 Vrms

Note

For Superseal series 1.5 contacts see 314-1334 , and range. For crimp tool see 314-1362 , and for secondary lock extraction tool see 368-4516

For suitable female housings see 314-1277 , and associated ranges.

Specifications
Attribute Value
Number of Contacts 3
Gender Male
Number of Rows 1
Mounting Type Cable Mount
Series AMP Superseal 1.5
Depth 42mm
Housing Material Nylon
2645 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 1.32
(exc. VAT)
£ 1.58
(inc. VAT)
Units
Per unit
Per Pack*
5 - 95
£1.32
£6.60
100 - 370
£1.028
£5.14
375 - 1495
£0.934
£4.67
1500 - 2995
£0.794
£3.97
3000 +
£0.714
£3.57
*price indicative
