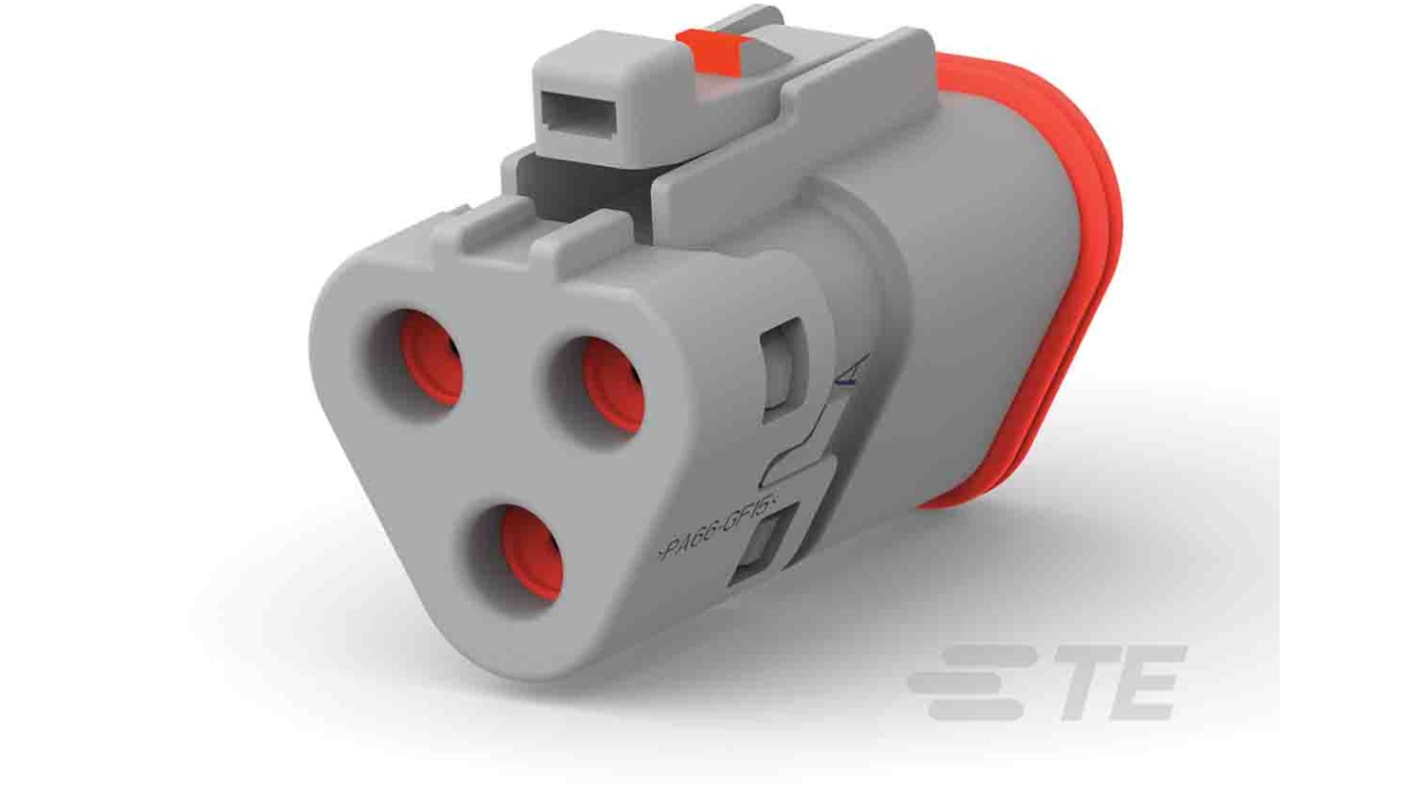

Deutsch, DT 2/3 Position Connector Automotive Connector Male Black, Grey, Grey Flange 3 Way Crimp Termination
- RS Stock No.:
- 196-1543
- Mfr. Part No.:
- DT06-3S-TE31 / 1-2303816-1
- Brand:
- Deutsch
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 196-1543
- Mfr. Part No.:
- DT06-3S-TE31 / 1-2303816-1
- Brand:
- Deutsch
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deutsch | |
| Product Type | Automotive Connector | |
| Number of Contacts | 3 | |
| Termination Type | Crimp | |
| Sub Type | Snap Cap | |
| Gender | Male | |
| Current | 13A | |
| Number of Rows | 2 | |
| Mount Type | Flange | |
| Series | DT 2/3 Position Connector | |
| Cord Included | No | |
| Colour | Black, Grey, Grey | |
| IP Rating | IP67, IP68, IP68 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL 94 V-0 | |
| Width | 31.2mm | |
| Depth | 20.17mm | |
| Height | 23.89mm | |
| Housing Material | Resin | |
| Select all | ||
|---|---|---|
Brand Deutsch | ||
Product Type Automotive Connector | ||
Number of Contacts 3 | ||
Termination Type Crimp | ||
Sub Type Snap Cap | ||
Gender Male | ||
Current 13A | ||
Number of Rows 2 | ||
Mount Type Flange | ||
Series DT 2/3 Position Connector | ||
Cord Included No | ||
Colour Black, Grey, Grey | ||
IP Rating IP67, IP68, IP68 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL 94 V-0 | ||
Width 31.2mm | ||
Depth 20.17mm | ||
Height 23.89mm | ||
Housing Material Resin | ||
- COO (Country of Origin):
- CN
DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.
