- RS Stock No.:
- 183-9110
- Mfr. Part No.:
- DT15-08PA
- Brand:
- Deutsch
- RS Stock No.:
- 183-9110
- Mfr. Part No.:
- DT15-08PA
- Brand:
- Deutsch
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

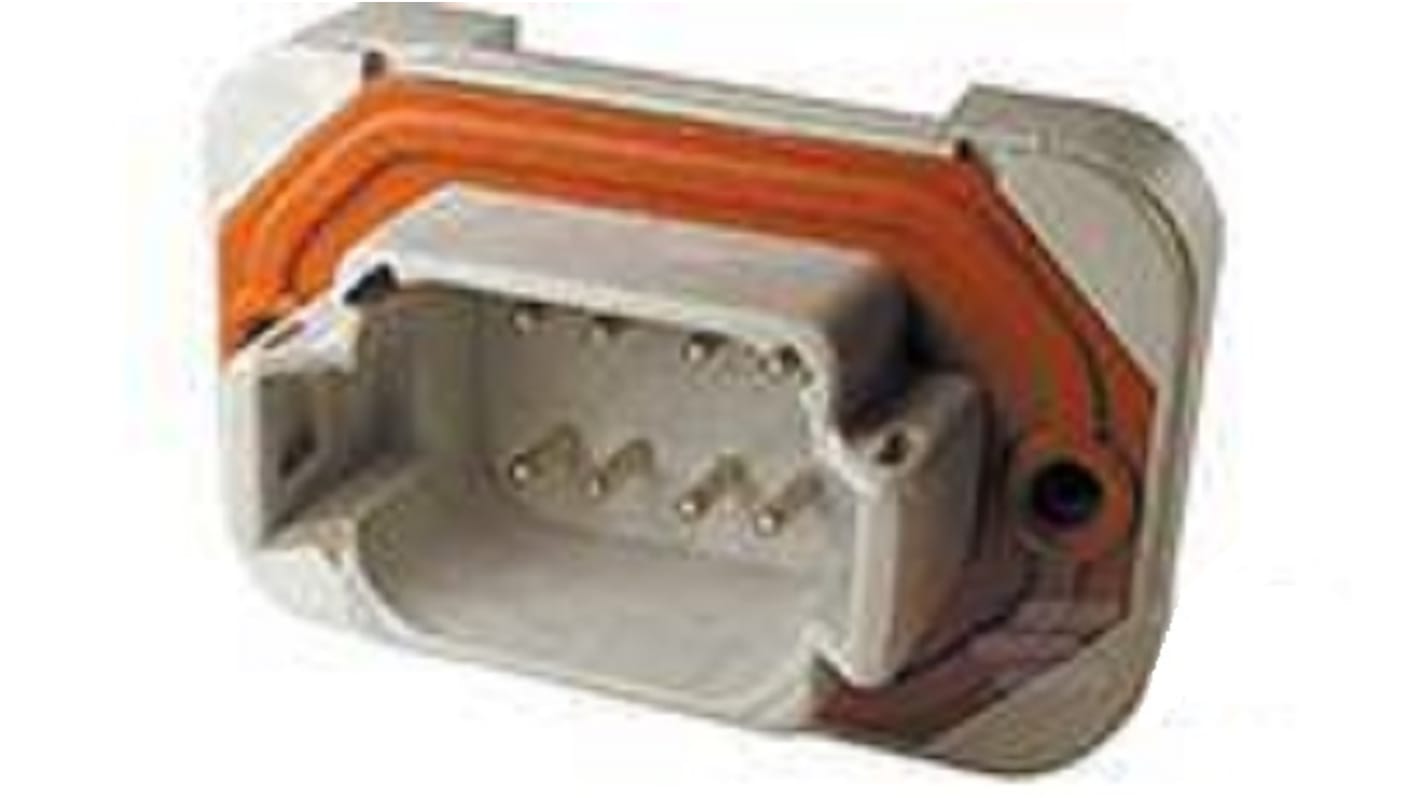

DEUTSCH DT headers are printed circuit board connectors available in 2, 3, 4, 6, 8, and 12 cavity arrangements. They are available in straight, right angle, flanged and flangeless configurations. All versions utilize and accept the DEUTSCH size 16 contacts, rated for 13 amps each.
Specifications
Attribute | Value |
---|---|
Type | Receptacle Housing |
Number of Contacts | 8 |
Gender | Female |
Number of Rows | 2 |
Mounting Type | PCB |
Series | DT |
Colour | Grey |
Termination Method | Solder |
IP Rating | IP68 |
Height | 35.26mm |
Width | 55.12mm |
Housing Material | Plastic |
Depth | 30.1mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
