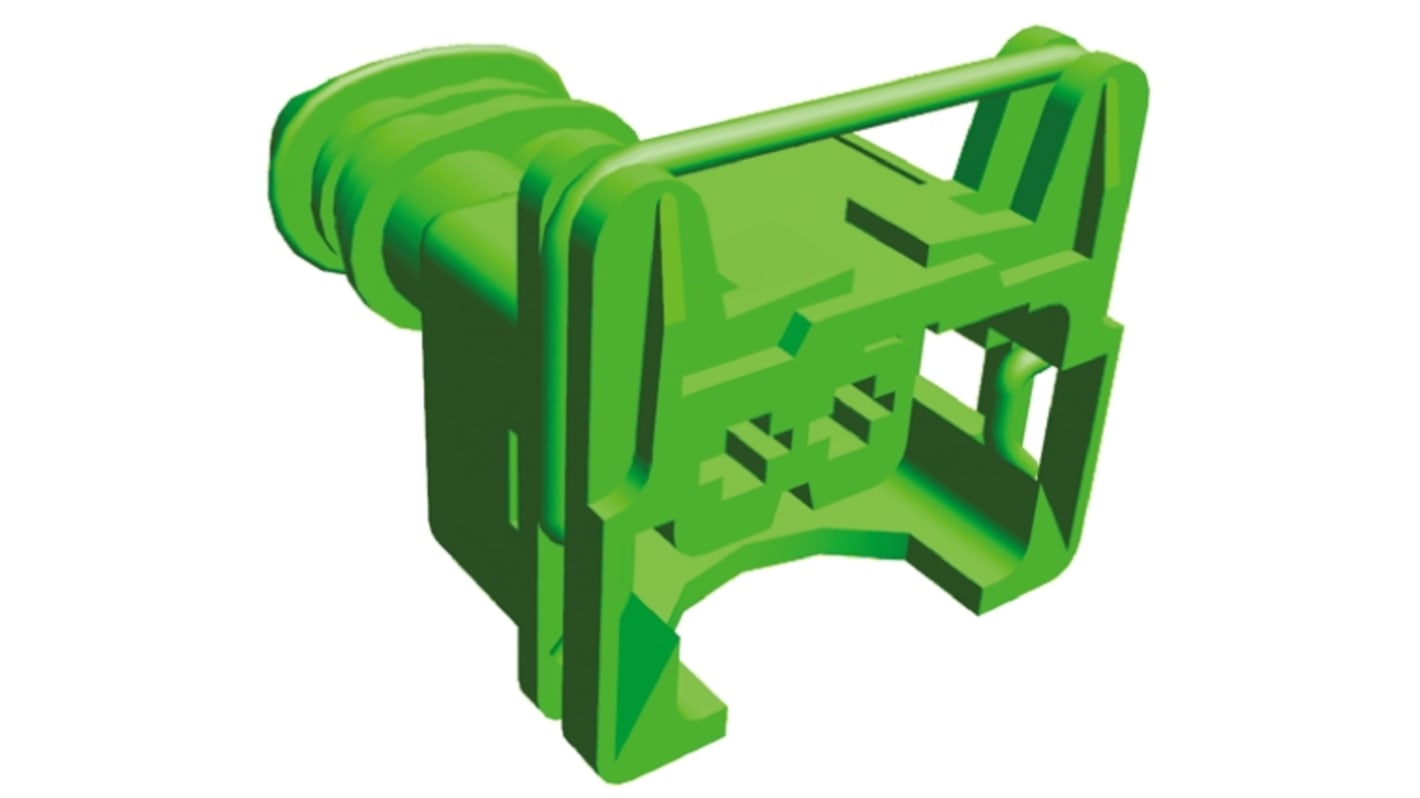

TE Connectivity, Junior Power Timer Automotive Connector Socket 2 Way
- RS Stock No.:
- 161-9894
- Mfr. Part No.:
- 282189-4
- Brand:
- TE Connectivity
Available to back order for despatch 06/12/2024
Added
Price Each (In a Bag of 1200)
£0.699
(exc. VAT)
£0.839
(inc. VAT)
| Units | Per unit | Per Bag* |
| 1200 + | £0.699 | £838.80 |
| *price indicative | ||
- RS Stock No.:
- 161-9894
- Mfr. Part No.:
- 282189-4
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
TE Connectivity Automotive Connectors
Specifications
Attribute | Value |
|---|---|
| Type | Automotive connector housing |
| Number of Contacts | 2 |
| Gender | Female |
| Number of Rows | 1 |
| Mounting Type | Cable Mount |
| Series | Junior Power Timer |
| Colour | Green |
| Height | 23mm |
| Width | 23.8mm |
| Depth | 37.5mm |
| Housing Material | Nylon |
