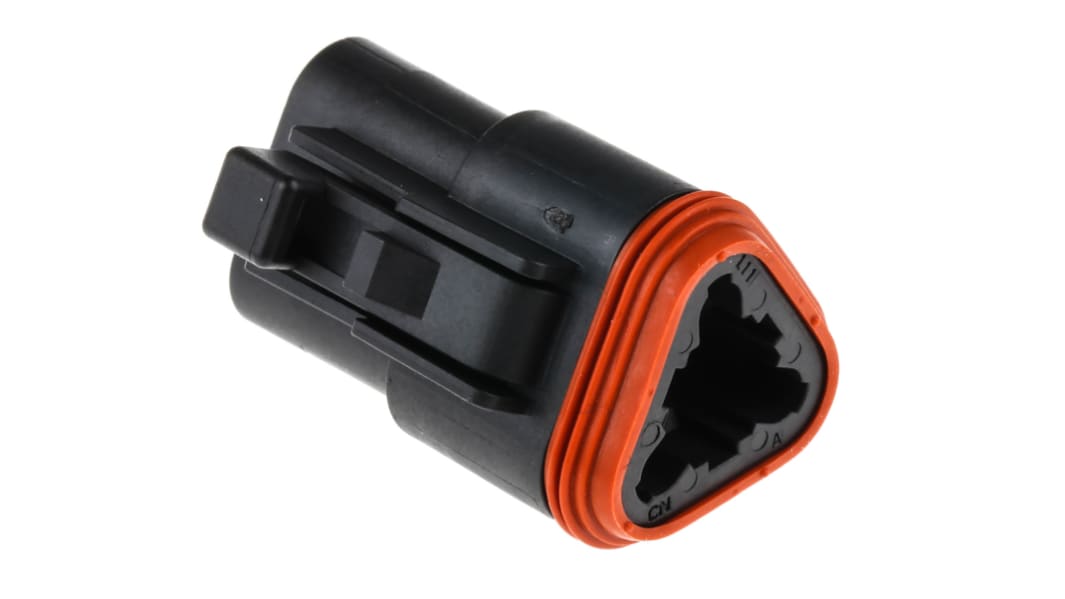

Deutsch, DT Automotive Connector Plug 3 Way

  • RS Stock No. 425-682
  • Mfr. Part No. DT063S-CE06
  • Brand Deutsch
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

DEUTSCH DT Series Plugs

DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.
You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

Features and Benefits

• IP68 waterproof rating
• 14-20 AWG (2.5-0.5mm²)
• Wire-to-wire connection
• 2/3/4/6/8/12 cavity arrangements
• In-line, flange or PCB mount options
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
• Operating Temperature: -55°C to +125°C

//media.rs-online.com/t_line/L0425765-01.gif
Specifications
Attribute Value
Number of Contacts 3
Type Automotive Connector
Gender Male
Current Rating 13A
Series DT
Maximum Operating Temperature +125°C
Contact Plating Nickel
Minimum Operating Temperature -55°C
Contact Material Copper Alloy
Housing Material Thermoplastic
3071 In stock - FREE next working day delivery available
Price Each
£ 1.45
(exc. VAT)
£ 1.74
(inc. VAT)
Units
Per unit
1 - 14
£1.45
15 - 49
£1.31
50 - 99
£1.16
100 - 249
£1.05
250 +
£0.95
