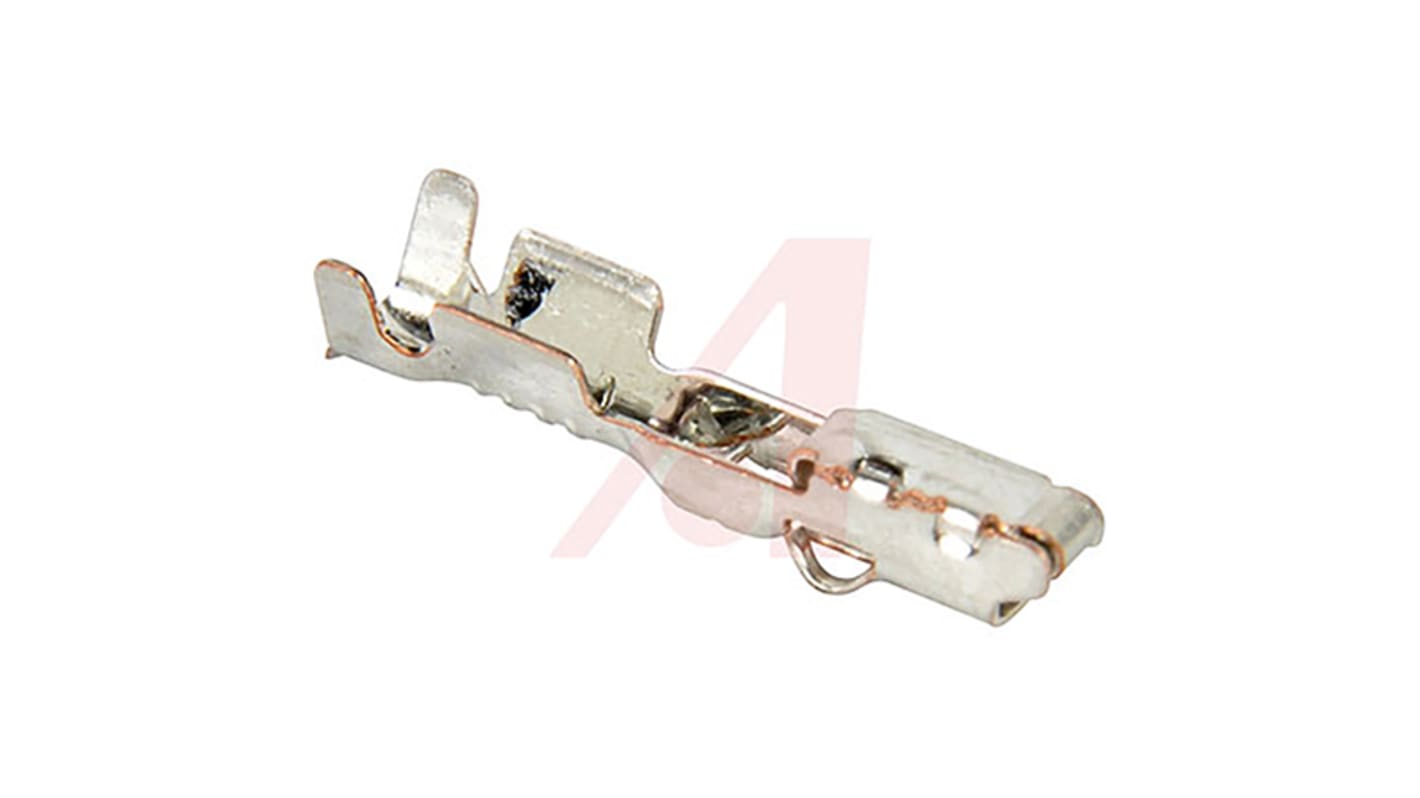

Cinch Connectors, SHS Terminal for SHS Harness Connectors Connectors

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): US
Product Details

300 Series Plugs

Cinch Connectivity 300 Series Jones Plugs are designed to provide a quick, reliable and economical means of solving high current-carrying capacity needs. The Jones connectors have flat blade contacts with solder lug terminals, and are polarised to prevent wrong-way insertion.

Solder lug terminals
Cable-to panel and cable-to-cable applications
Polarised contacts
Designed for light and medium duty

Cinch Connectivity Range

Specifications
Attribute Value
Type Crimp Terminal
Series SHS
Gender Female
Mounting Type PCB Mount
Termination Method Crimp
Series Number 425
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
IP Rating IP67, IP69K
Available to back order for despatch 09/10/2020
Price Each (In a Pack of 500)
£ 0.097
(exc. VAT)
£ 0.116
(inc. VAT)
Units
Per unit
Per Pack*
500 +
£0.097
£48.50
*price indicative
