- RS Stock No.:
- 136-1728
- Mfr. Part No.:
- 282104-1
- Brand:
- TE Connectivity
1500 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Box of 1500)
£0.349
(exc. VAT)
£0.419
(inc. VAT)
Units | Per unit | Per Box* |
1500 + | £0.349 | £523.50 |
*price indicative |
- RS Stock No.:
- 136-1728
- Mfr. Part No.:
- 282104-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

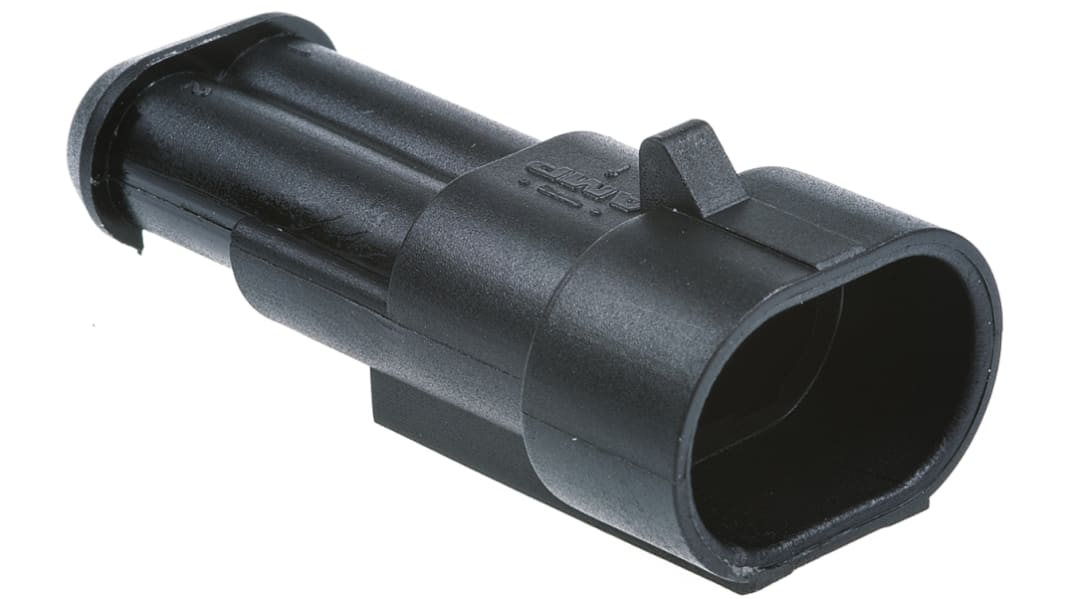

TE Connectivity 1.5 Superseal Series, Connector Housings - AMP Superseal 1.5
Our range of TE Connectivity, PCB Connector Housings form part of the 1.5 Superseal series. A typical applications for these types of housings are to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connection that it is housing.
Features and Benefits
Comprised of black 6.6 glass filled poly-amide
1 - 6 positions
Plug housings for receptacle contacts, cap housings and tab contact variants
Pre-assembled secondary lock
Silicon rubber seals
Panel or cable mount
Temperature range of the 1.5 mm pitch superseal series is of -40 to +125°C
Suitable for powertrain, security, and body & chassis systems
Dielectric withstand voltage 1500 Vrms
1 - 6 positions
Plug housings for receptacle contacts, cap housings and tab contact variants
Pre-assembled secondary lock
Silicon rubber seals
Panel or cable mount
Temperature range of the 1.5 mm pitch superseal series is of -40 to +125°C
Suitable for powertrain, security, and body & chassis systems
Dielectric withstand voltage 1500 Vrms
Note
Specifications
Attribute | Value |
---|---|
For Use With | Centerline Wire-to-Wire Connector |
Series | AMP Superseal 1.5 |
Body Orientation | Straight |
Gender | Male |
Number of Contacts | 2 |
- RS Stock No.:
- 136-1728
- Mfr. Part No.:
- 282104-1
- Brand:
- TE Connectivity
