- RS Stock No.:
- 222-4957
- Mfr. Part No.:
- IRS2093MTRPBF
- Brand:
- Infineon
- RS Stock No.:
- 222-4957
- Mfr. Part No.:
- IRS2093MTRPBF
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details

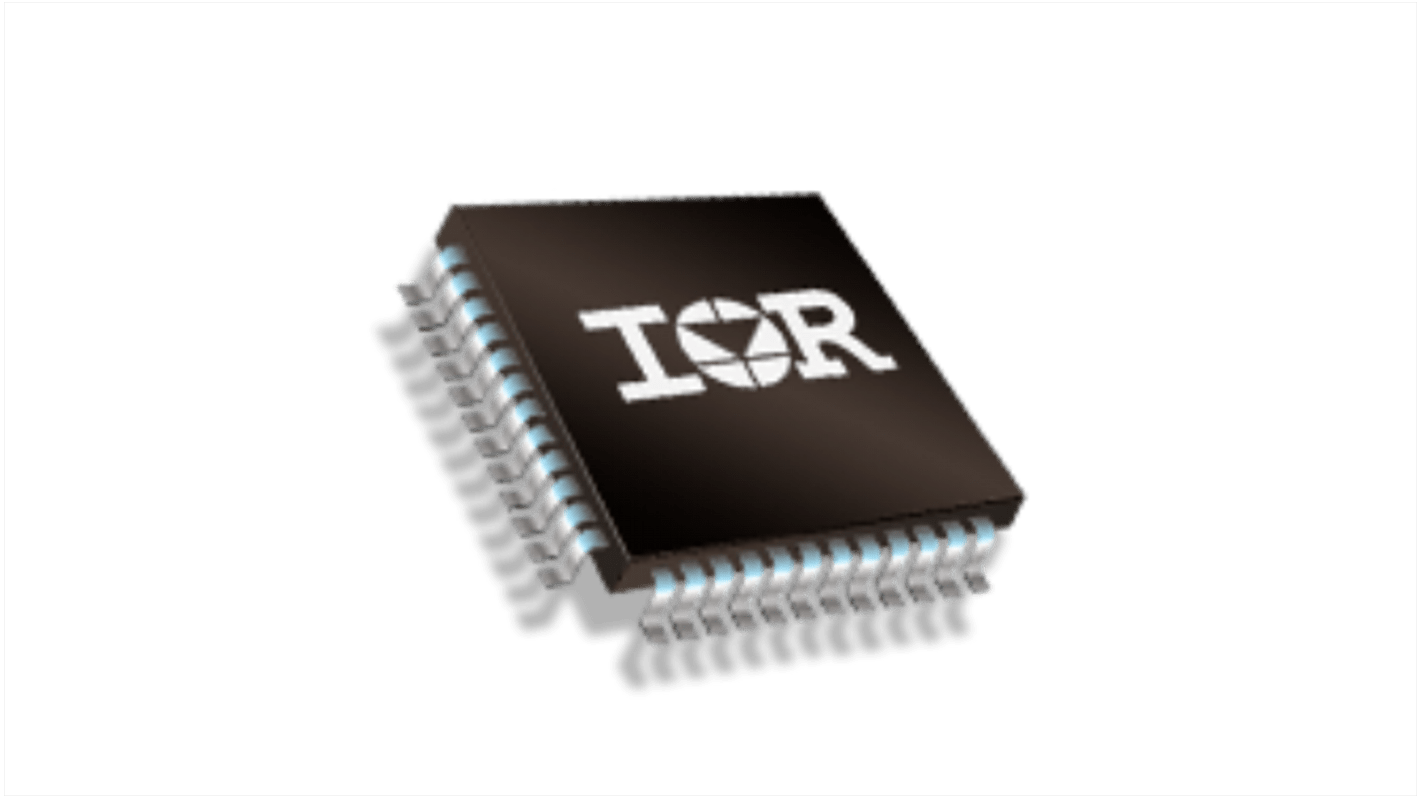

The Infineon IRS2093 integrates four channels of high voltage, high performance Class D audio amplifier drivers with PWM modulators and protections.
4 channel integrated analog input Class D audio amplifier drivers in a 48 pin MLPQ package
Programmable over current protection
Programmable dead-time generation
Versatile protection control enabling latched, non-latched, or host controlled shutdown function
Programmable over current protection
Programmable dead-time generation
Versatile protection control enabling latched, non-latched, or host controlled shutdown function
Specifications
Attribute | Value |
---|---|
Amplifier Type | Digital Amplifier |
Maximum Power | 6.2W |
Mounting Type | Surface Mount |
Typical Single Supply Voltage | 10 → 15 V |
Number of Channels per Chip | 1 |
Package Type | MLPQ 48 pins |
Pin Count | 48 |
Typical Gain Bandwidth Product | 9MHz |
