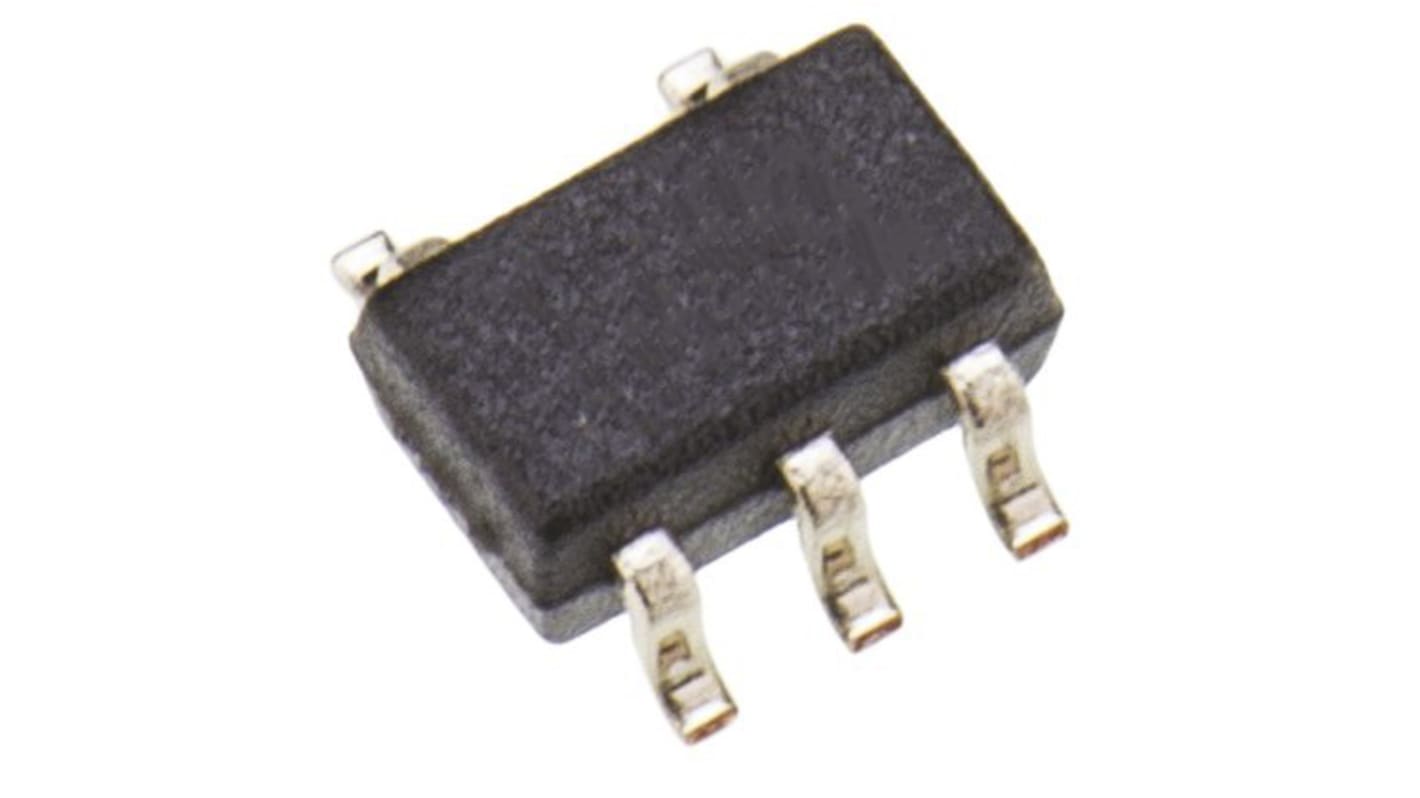

Maxim Integrated,Audio, 5-Pin SC-70 MAX4465EXK+T
- RS Stock No.:
- 191-4838
- Mfr. Part No.:
- MAX4465EXK+T
- Brand:
- Maxim Integrated
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Pack of 25)
£0.282
(exc. VAT)
£0.338
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 + | £0.282 | £7.05 |
| *price indicative | ||
- RS Stock No.:
- 191-4838
- Mfr. Part No.:
- MAX4465EXK+T
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
+2.4V to +5.5V Supply Voltage Operation
Versions with 5nA Complete Shutdown Available (MAX4467/MAX4468)
Excellent Power-Supply Rejection Ratio: 112dB
Excellent Common-Mode Rejection Ratio: 126dB
High AVOL: 125dB (RL = 100kΩ)
Rail-to-Rail Outputs
Low 24μA Quiescent Supply Current
Gain Bandwidth Product:
200kHz (MAX4465/MAX4467/MAX4469)
600kHz AV ≥ 5 (MAX4466/MAX4468)
Available in Space-Saving Packages
5-Pin SC70 (MAX4465/MAX4466)
8-Pin SOT23 (MAX4467/MAX4468/MAX4469)
Applications/Uses
Cell Phones
Digital Dictation Devices
Headsets
Hearing Aids
Microphone Preamplifiers
Portable Computing
Voice-Recognition Systems
Versions with 5nA Complete Shutdown Available (MAX4467/MAX4468)
Excellent Power-Supply Rejection Ratio: 112dB
Excellent Common-Mode Rejection Ratio: 126dB
High AVOL: 125dB (RL = 100kΩ)
Rail-to-Rail Outputs
Low 24μA Quiescent Supply Current
Gain Bandwidth Product:
200kHz (MAX4465/MAX4467/MAX4469)
600kHz AV ≥ 5 (MAX4466/MAX4468)
Available in Space-Saving Packages
5-Pin SC70 (MAX4465/MAX4466)
8-Pin SOT23 (MAX4467/MAX4468/MAX4469)
Applications/Uses
Cell Phones
Digital Dictation Devices
Headsets
Hearing Aids
Microphone Preamplifiers
Portable Computing
Voice-Recognition Systems
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Audio |
| Output Type | Rail to Rail |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | +2.4 → +5.5 V |
| Power Supply Type | Single |
| Package Type | SC-70 |
| Pin Count | 5 |
| Input Signal Type | Single Ended |
| Typical Gain Bandwidth Product | 200kHz |
| Minimum CMRR | 126dB |
| Dimensions | 2.2 x 1.35 x 1mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
