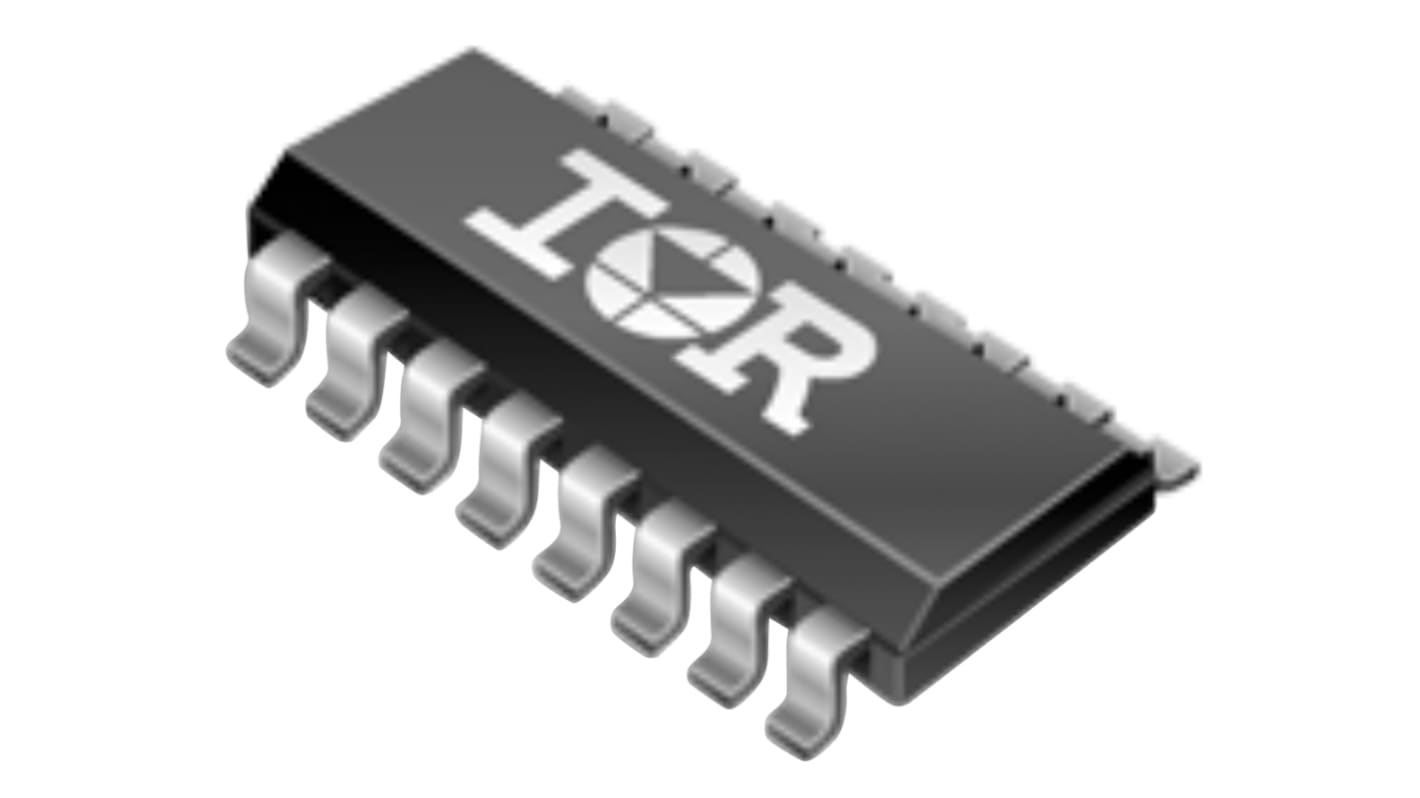

IRS20957STRPBF Infineon, Audio Amplifier IC, 16-Pin SOIC

  • RS Stock No. 170-2310
  • Mfr. Part No. IRS20957STRPBF
  • Brand Infineon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Protected Digital Audio Driver with Floating PWM input in a 16-Lead SOIC Narrow Package

Benefits:
Floating PWM input enables easy half bridge implementation
Programmable bidirectional over-current protection with self-reset function
Programmable preset dead-time for improved THD performances
High noise immunity
+ - 100V ratings deliver up to 500W in output power
3.3 V/ 5 V logic compatible input
Operates up to 800kHz
Target Applications:
Class D Audio

Specifications
Attribute Value
Amplifier Type Class-D
Output Type Monolithic
Maximum Power 500W
Mounting Type Surface Mount
Amplifier Class Class D
Power Supply Type Single
Number of Channels per Chip 1
Package Type SOIC
Pin Count 16
Input Signal Type Single
Output Signal Type Single
Minimum Operating Temperature -40 °C
Height 1.5mm
Width 3.99mm
Dimensions 9.98 x 3.99 x 1.5mm
Maximum Operating Temperature +125 °C
Length 9.98mm
2500 In stock - FREE next working day delivery available
Price Each (On a Reel of 2500)
£ 1.15
(exc. VAT)
£ 1.38
(inc. VAT)
Units
Per unit
Per Reel*
2500 +
£1.15
£2,875.00
*price indicative
