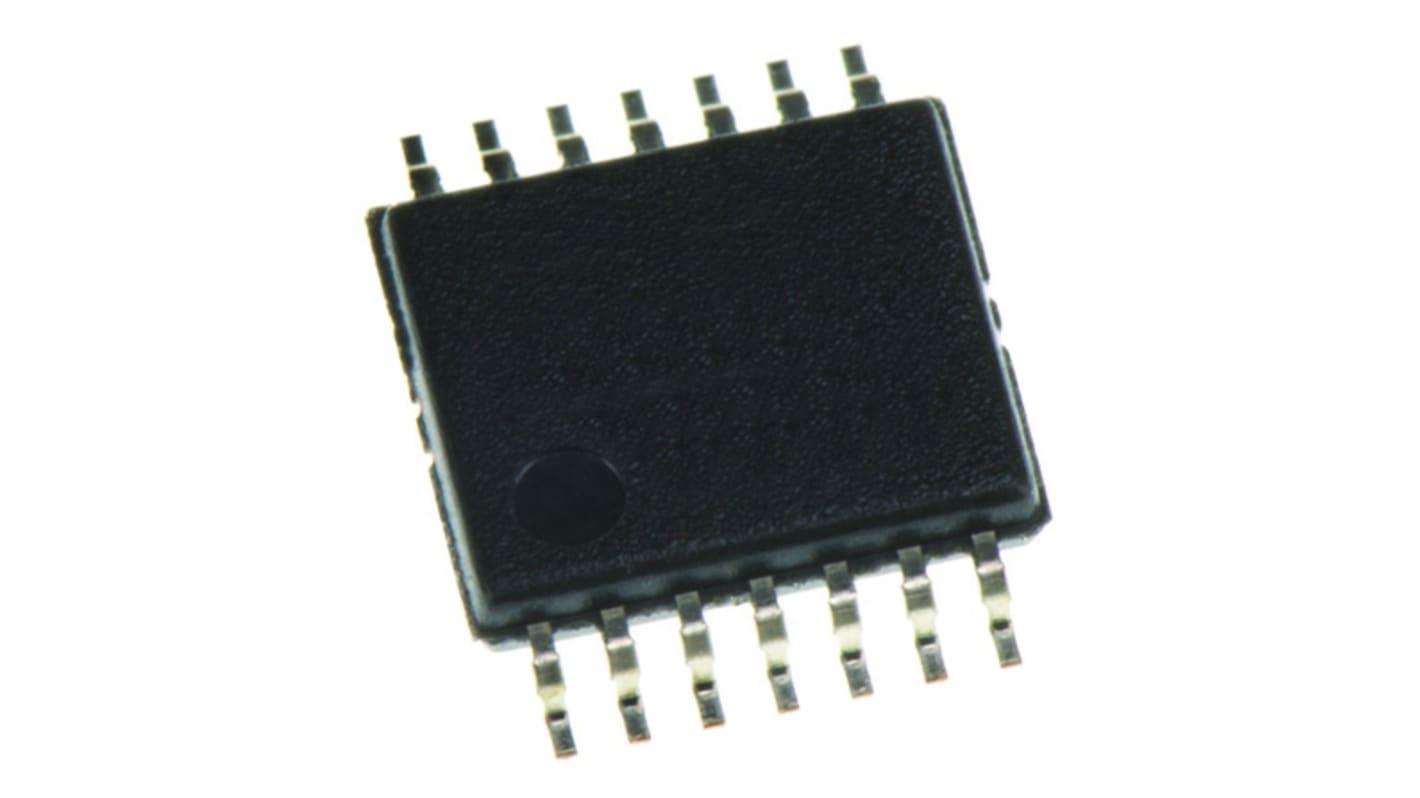

Texas Instruments, 2-ChannelAudio0.04W, 14-Pin TSSOP TPA6138A2PW
- RS Stock No.:
- 145-7431
- Mfr. Part No.:
- TPA6138A2PW
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (In a Bag of 90)
£0.556
(exc. VAT)
£0.667
(inc. VAT)
| Units | Per unit | Per Bag* |
| 90 - 360 | £0.556 | £50.04 |
| 450 - 1710 | £0.454 | £40.86 |
| 1800 - 4410 | £0.442 | £39.78 |
| 4500 + | £0.431 | £38.79 |
| *price indicative | ||
- RS Stock No.:
- 145-7431
- Mfr. Part No.:
- TPA6138A2PW
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Audio Power Amplifiers, Dual & Multiple, Texas Instruments
A range of highly integrated Class AB Audio Power Amplifier ICs from Texas Instruments with dual or multiple outputs suitable for stereo and multi-channel applications. The amplifiers range from low-power devices suitable for driving headphones to high-power types with outputs of up to 60W or more.
Audio Amplifiers, Texas Instruments
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Audio |
| Output Type | 2 Channel Stereo |
| Maximum Power | 0.04W |
| Application | Audio Equipment |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3.3 V |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Package Type | TSSOP |
| Pin Count | 14 |
| Input Signal Type | Differential |
| Output Signal Type | Single Ended |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
