- RS Stock No.:
- 124-4687
- Mfr. Part No.:
- DFR0305
- Brand:
- DFRobot
2 In stock - FREE next working day delivery available
Added
Price Each
£29.99
(exc. VAT)
£35.99
(inc. VAT)
Units | Per unit |
1 - 4 | £29.99 |
5 - 9 | £29.30 |
10 + | £28.54 |
- RS Stock No.:
- 124-4687
- Mfr. Part No.:
- DFR0305
- Brand:
- DFRobot
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

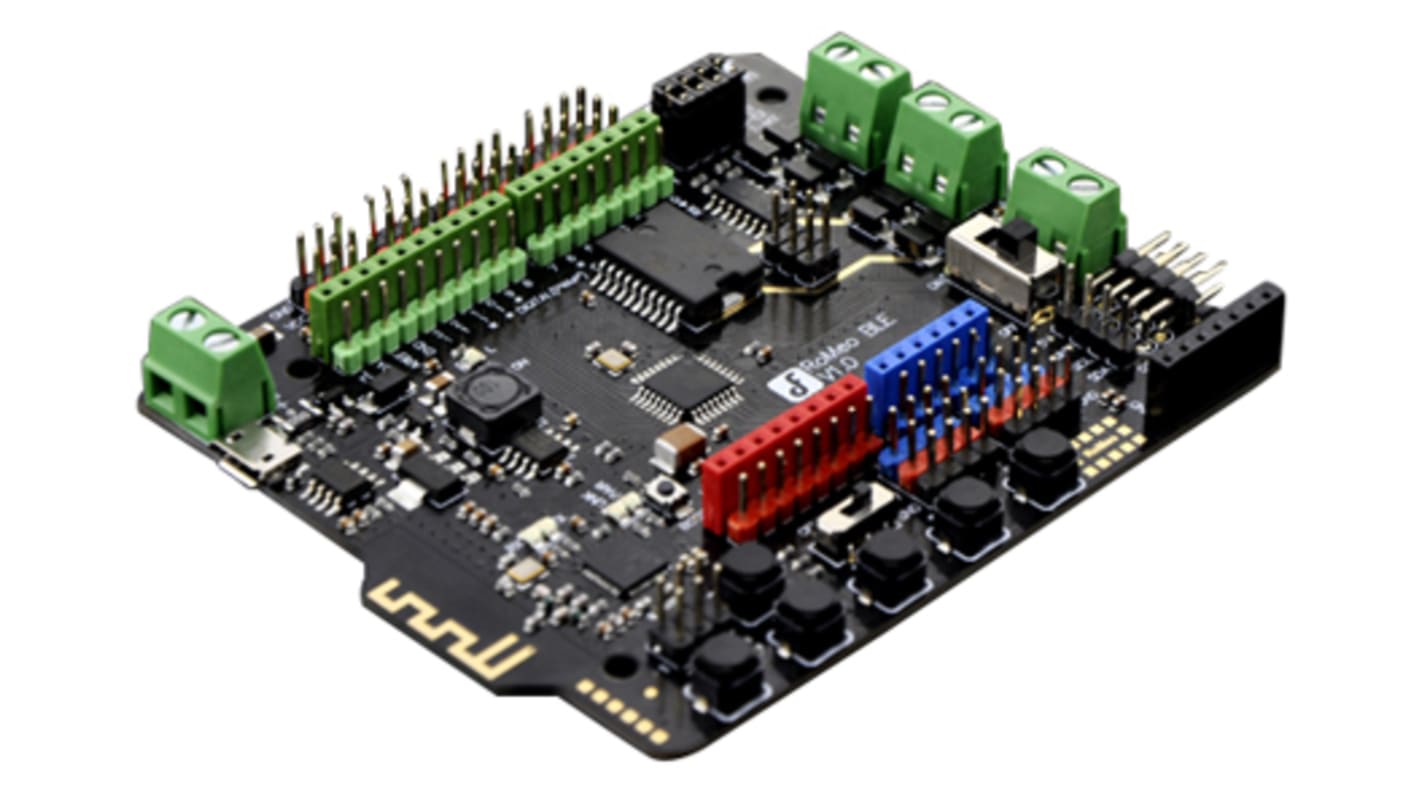

Romeo BLE Arduino Motor Driver Board
The Romeo BLE is a all in one robot controller board with integrated CC2540 Bluetooth 4.0 (BLE) chip. The board design makes it suitable for robotic applications and the new code can be uploaded without a need to plug in a cable.
Features:
Microcontroller: ATmega328P
Bootloader: Arduino UNO
On-board BLE chip: TI CC2540
Transmission range: 70 m in free space
Support bluetooth remote update the Arduino program
Support Bluetooth HID
Support iBeacon
Support AT command to config the BLE
Support Transparent communication through Serial
Support the master-salve machine switch
Support USB update BLE chip program
14 Digital I/O ports
6 PWM Outputs (Pin11, Pin10, Pin9, Pin6, Pin5, Pin3)
8 10-bit analogue input ports
3 I2Cs
2 way H-bridged Motor Driver with 2A maximum current
5 Buttons
Support Male and Female Pin Header
Integrated sockets for APC220 RF Module
Power Supply Port: USB or DC2.1
External Power Supply Range: 5 to 23 V
DC output: 5V/3.3V
Auto sensing/switching external power input
Size: 94 x 80 mm(3.70"x3.15")
Microcontroller: ATmega328P
Bootloader: Arduino UNO
On-board BLE chip: TI CC2540
Transmission range: 70 m in free space
Support bluetooth remote update the Arduino program
Support Bluetooth HID
Support iBeacon
Support AT command to config the BLE
Support Transparent communication through Serial
Support the master-salve machine switch
Support USB update BLE chip program
14 Digital I/O ports
6 PWM Outputs (Pin11, Pin10, Pin9, Pin6, Pin5, Pin3)
8 10-bit analogue input ports
3 I2Cs
2 way H-bridged Motor Driver with 2A maximum current
5 Buttons
Support Male and Female Pin Header
Integrated sockets for APC220 RF Module
Power Supply Port: USB or DC2.1
External Power Supply Range: 5 to 23 V
DC output: 5V/3.3V
Auto sensing/switching external power input
Size: 94 x 80 mm(3.70"x3.15")
Romeo family
Specifications
Attribute | Value |
---|---|
Product Name | Romeo BLE |
Kit Classification | Controller Board |
