RS PRO Arbitrary Waveform Generator 160MHz RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

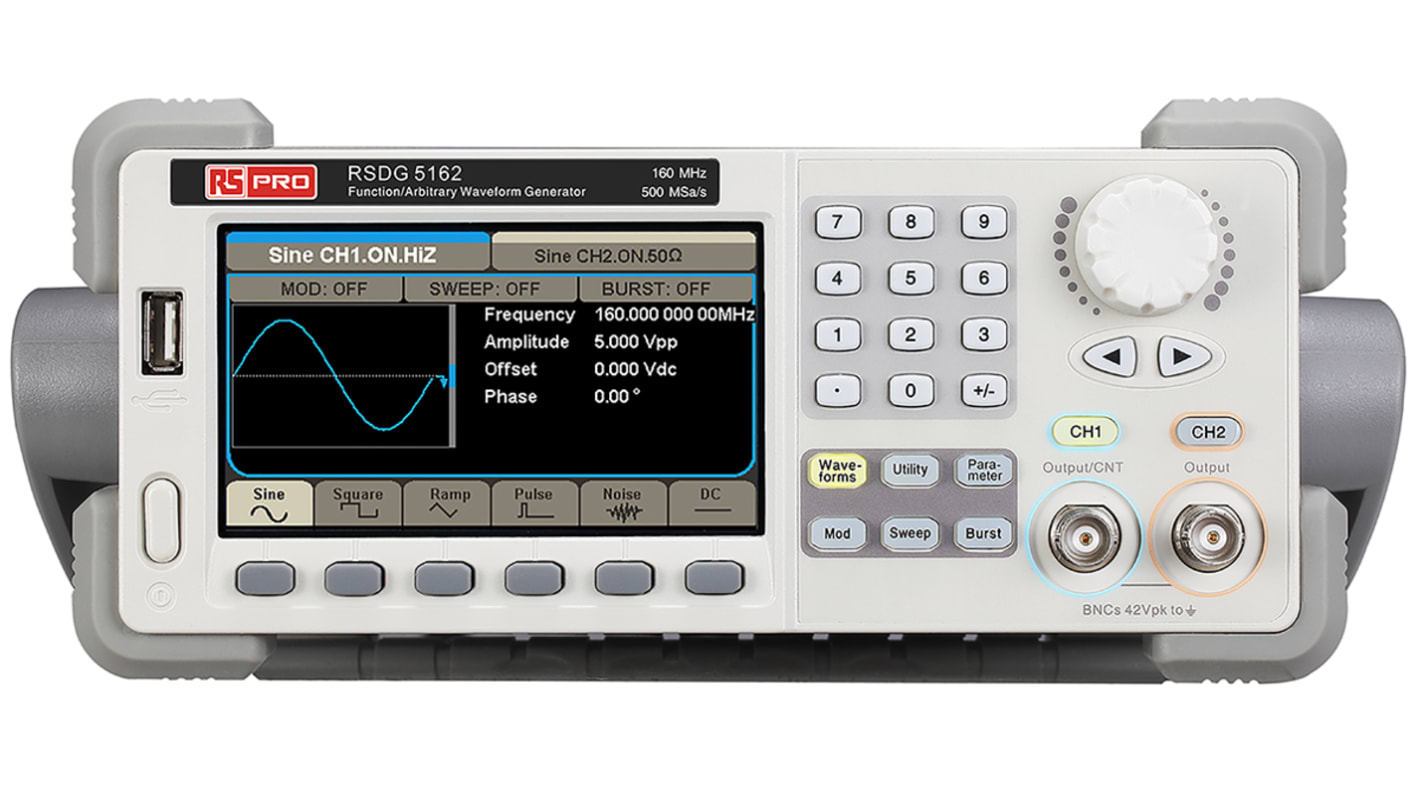

RS Pro RSDG5000 Series Function/Arbitrary Waveform Generators

RS Pro RSDG5000 Series function/arbitrary waveform generators adopt Direct Digital Synthesis (DDS) technology, which can provide stable, high-precision, pure and low distortion signals. The models incorporate the pulse generator algorithm EasyPulse. Using EasyPulse, the RSDG5000 is capable of generating a pulse signal with low jitter, fast rising and falling edge (frequency independent effect) and small duty cycle. Edge and pulse width are adjustable over a wide range.

Features and Benefits

80 MHz or160 MHz output frequency (depending on choice of model)
500 MSa/S sampling rate
14-bit vertical resolution
Memory depths of 512 kpts for CH2 and 16 kpts for CH1
Dual floating output channel
EasyPulse technology

Supplied with

USB cable, quick start guide, product qualification certificate, power cord, CD (containing EasyScope PC software)

Specifications
Attribute Value
Maximum Frequency 160MHz
Minimum Frequency 1 μHz
Maximum Frequency Triangle Ramps 4MHz
Minimum Frequency Triangle Ramps 1µHz
Maximum Sampling Frequency 500Msps
Resolution 1 μHz
Calibrated RSCAL
Minimum Pulse Width 50ns
Arbitrary Waveforms Yes
Maximum Storage 8
Display Type TFT LCD
Height 105mm
Inputs External Trigger
Width 261mm
Weight 2.8kg
Rise - Fall Time 380s
Data Entry Keyboard
Connector Type BNC
Sweep Linear, Logarithmic
Length 344mm
Maximum Operating Temperature +40°C
Dimensions 344 x 261 x 105mm
Interface Type USB Device, USB Host
Maximum Output Amplitude 20V Pk-Pk
Minimum Operating Temperature 0°C
Waveform Memory per Channel 16k points
9 In stock for delivery within 2 working days
Price Each
£ 1,058.01
(exc. VAT)
£ 1,269.61
(inc. VAT)
Units
Per unit
1 +
£1,058.01
Not available for guaranteed pre 9am/10am delivery
