- RS Stock No.:
- 162-3241
- Brand:
- RS PRO
Available to back order for despatch 21/10/2024
Added
Price Each
£140.49
(exc. VAT)
£168.59
(inc. VAT)
Units | Per unit |
1 + | £140.49 |
- RS Stock No.:
- 162-3241
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

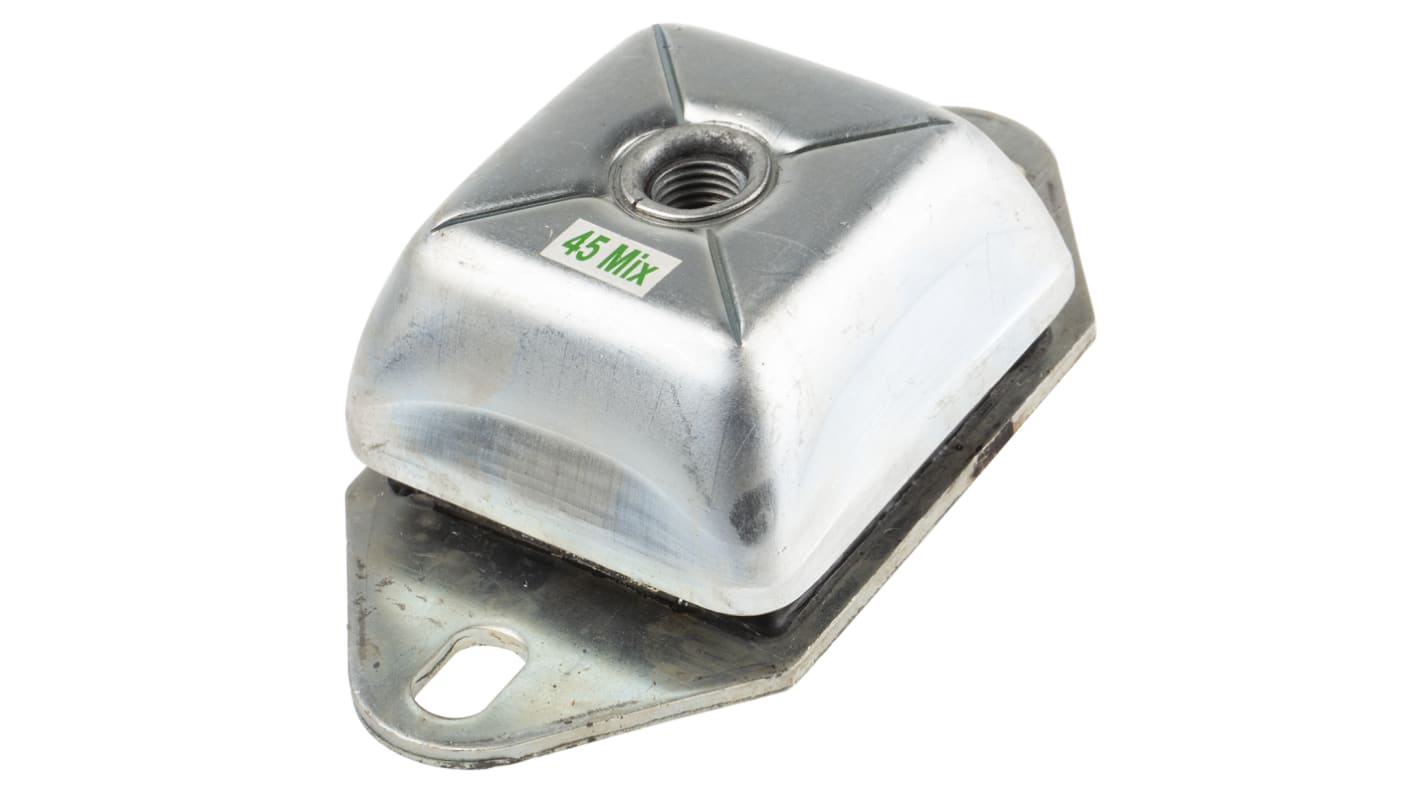

Originally designed for mounting a marine boat engines taking propeller thrust and shock loads due usage at sea and now they are extensively used for mobile and static machinery to reduce vibration.
Metal top cover protects the rubber element from oil and diesel fuel contamination
Built-in shock load and rebound control feature
50% Low stiffness across the mount to vertical stiffness
Longitudinal stiffness is 2.5 times the vertical and suitable to take engine thrust for marine engines
Built-in shock load and rebound control feature
50% Low stiffness across the mount to vertical stiffness
Longitudinal stiffness is 2.5 times the vertical and suitable to take engine thrust for marine engines
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Marine Mount |
Thread Size | M20 |
Diameter | 230mm |
Overall Height | 70mm |
Static Load Capacity | 350kg |
Material | Natural Rubber |
Shore Hardness | 45 Shore A |
Metalwork | Zinc Plated Steel |
Foot Shape | Rectangular |
Compression Load | 350kg |
Compression Deflection | 5mm |
Series | KMR |
Maximum Operating Temperature | +100°C |
