- RS Stock No.:
- 162-9859
- Mfr. Part No.:
- TDC1000PW
- Brand:
- Texas Instruments
- RS Stock No.:
- 162-9859
- Mfr. Part No.:
- TDC1000PW
- Brand:
- Texas Instruments
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

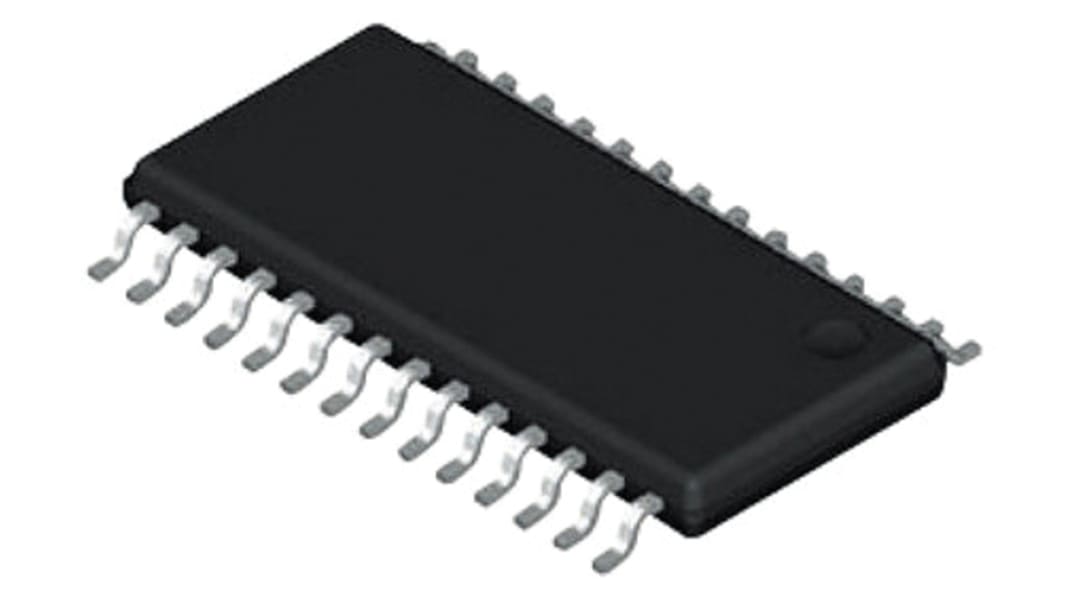

Ultrasonic Sensing Analogue Front End, Texas Instruments
The TDC1000 is a fully integrated Analogue Front-End (AFE) for Ultrasonic Sensing measurements of level, fluid identification/concentration, flow, and proximity/distance applications.
Sensor Interfaces, Texas Instruments
Specifications
Attribute | Value |
---|---|
Application | Concentration Sensing, Flow Sensing, Proximity Sensing, Ultrasonic Sensing |
Interface Type | SPI |
Number of Channels per Chip | 2 |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 28 |
Power Supply Type | Single |
Dimensions | 9.8 x 4.5 x 1.05mm |
Height | 1.05mm |
Length | 9.8mm |
Maximum Operating Supply Voltage | 5.5 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Minimum Operating Supply Voltage | 2.7 V |
Width | 4.5mm |
