STMicroelectronics STEVAL-CCA057V4, Operational Amplifier Evaluation Board

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

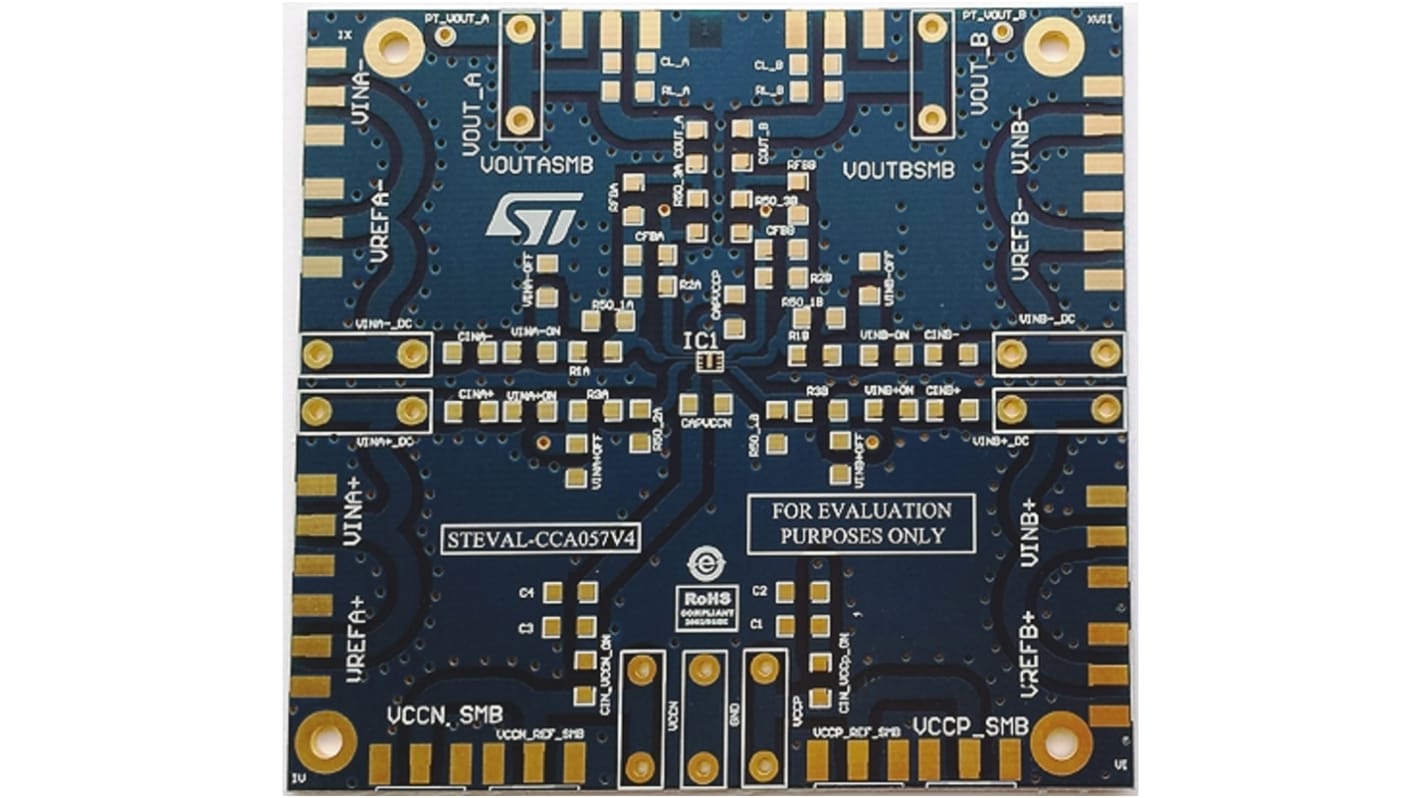

Bare PCB Evaluation Board for Dual Operational Amplifiers from STMicroelectronics

The STEVAL-CCA057Vx evaluation boards are designed to help customers quickly prototype new dual operational amplifier circuits in different packages and reduce design time.
It can be used with almost any STMicroelectronics dual op amp in various configurations and applications.
These are bare boards with no components or amplifier ICs soldered on the board.

Specifications
Attribute Value
Analogue Function Operational Amplifier
Kit Classification Evaluation Board
Available to back order for despatch 25/01/2021
Price Each
£ 16.61
(exc. VAT)
£ 19.93
(inc. VAT)
Units
Per unit
1 - 9
£16.61
10 - 24
£16.18
25 - 49
£15.76
50 +
£15.37
