Cornell-Dubilier Aluminium Electrolytic Capacitor 12000μF 63V dc 35mm Snap-In A05 380LX Series Aluminium, Through Hole

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

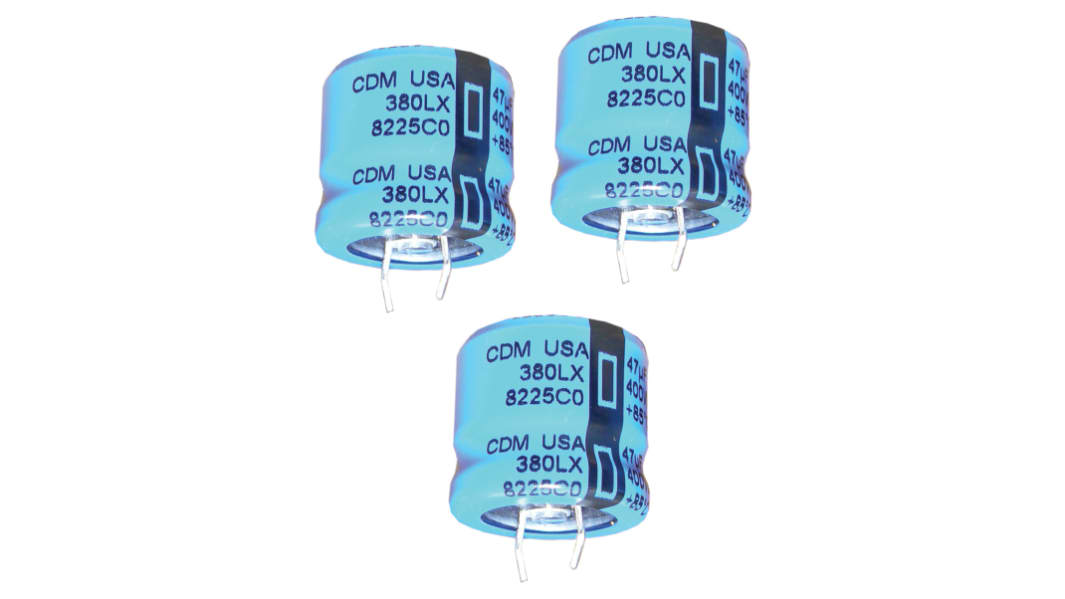

Cornell-Dubilier 380LX Series

Cornell-Dubilier 380LX series snap-in aluminium electrolytic capacitors offer a long life and high capacitance per can size. The 380LX readily handles tough switching power supply input and output circuits and motor-drive bus capacitor applications.

Features and Benefits:
High temperature range
Compact can size
Long life
High capacitance per can size
Variety of case sizes

Specifications
Attribute Value
Voltage 63 V dc
Capacitance 12000 µF
Mounting Type Through Hole
Dimensions 35 x 50mm
Length 50mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Package/Case A05
Lead Pitch 10mm
Lead Diameter 0.8 mm, 1.5 mm
Lead Length 6.3mm
Lifetime 1000 (Shelf) h, 3000 (Endurance) h
Series 380LX
Construction Cylindrical
Diameter 35mm
Tolerance ±20%
Tolerance Minus -20%
Terminal Type Snap-In
Technology Electrolytic
Dielectric Material Family Aluminium
Tolerance Plus +20%
47 In stock for FREE next working day delivery
Price Each
£ 6.82
(exc. VAT)
£ 8.18
(inc. VAT)
Units
Per unit
1 +
£6.82
