Cornell-Dubilier 10000μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 30 x 50mm +85°C 30mm 10mm 50mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

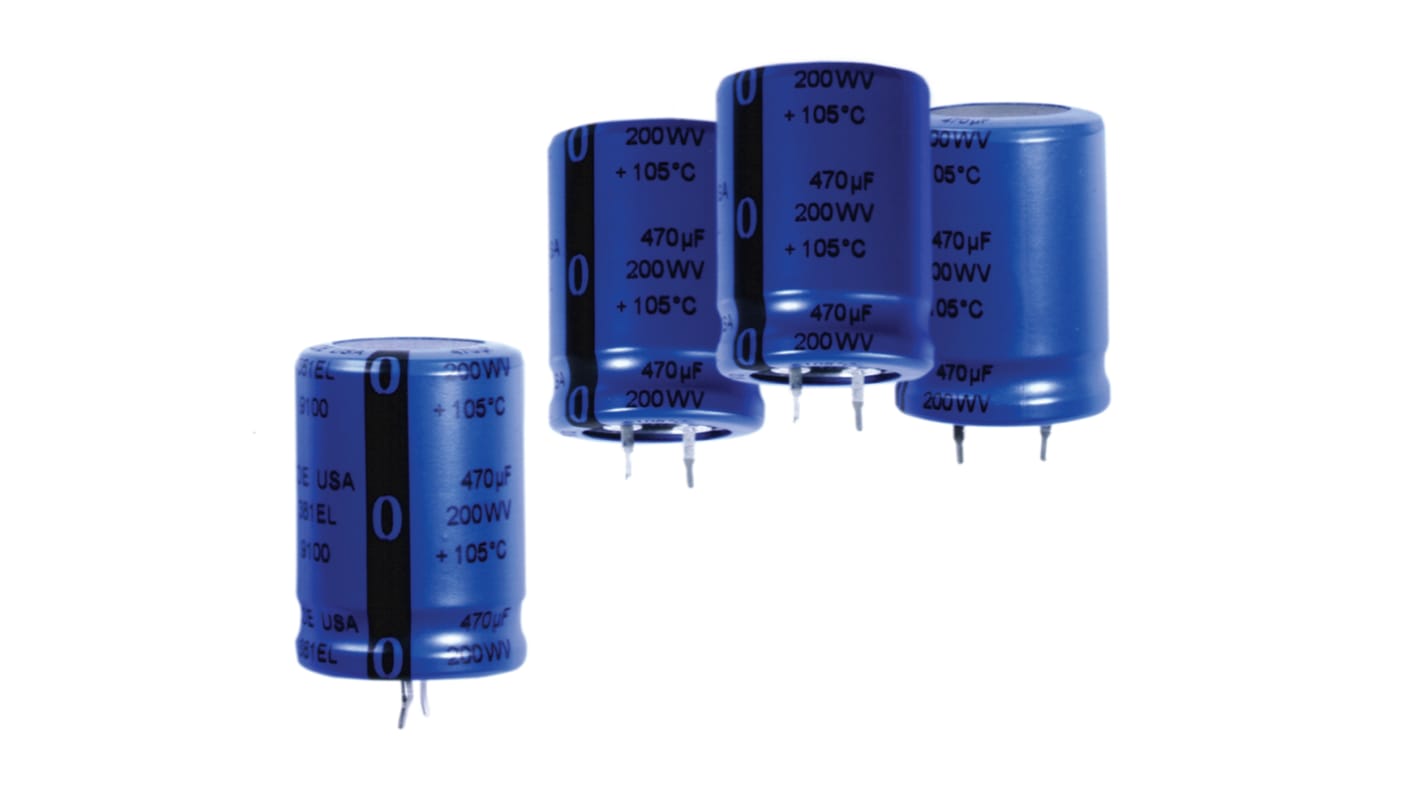

Cornell-Dubilier SLPX Series

Cornell-Dubilier SLPX series snap-In aluminium electrolytic capacitors are general purpose small cased capacitors that offer high ripple current and wide temperature range. The SLPX series is designed for DC filtering and power supply applications where long life and high ripple capability are needed.

Features and Benefits:
3000 h ripple load life at rated voltage
Small case size with high capacitance
Suitable for switching power supplies
10 mm lead spacing
High ripple current
Cost effective
22 mm to 35 mm diameter

Specifications
Attribute Value
Capacitance 10000 µF
Voltage 63 V dc
Mounting Type Through Hole
Technology Electrolytic
Dimensions 30 x 50mm
Length 50mm
Minimum Operating Temperature -40°C
Diameter 30mm
Maximum Operating Temperature +85°C
Lead Pitch 10mm
Lifetime 1000 (Shelf) h, 3000 (Endurance) h
Series SLPX
Tolerance ±20%
Ripple Current 5.78 Arms @ 120 Hz, 7.23 Arms @ 20 kHz
Equivalent Series Resistance 30 mΩ @ 20 kHz, 40 mΩ @ 120 Hz
1773 In stock for FREE next working day delivery
Price Each
£ 4.04
(exc. VAT)
£ 4.85
(inc. VAT)
Units
Per unit
1 +
£4.04
