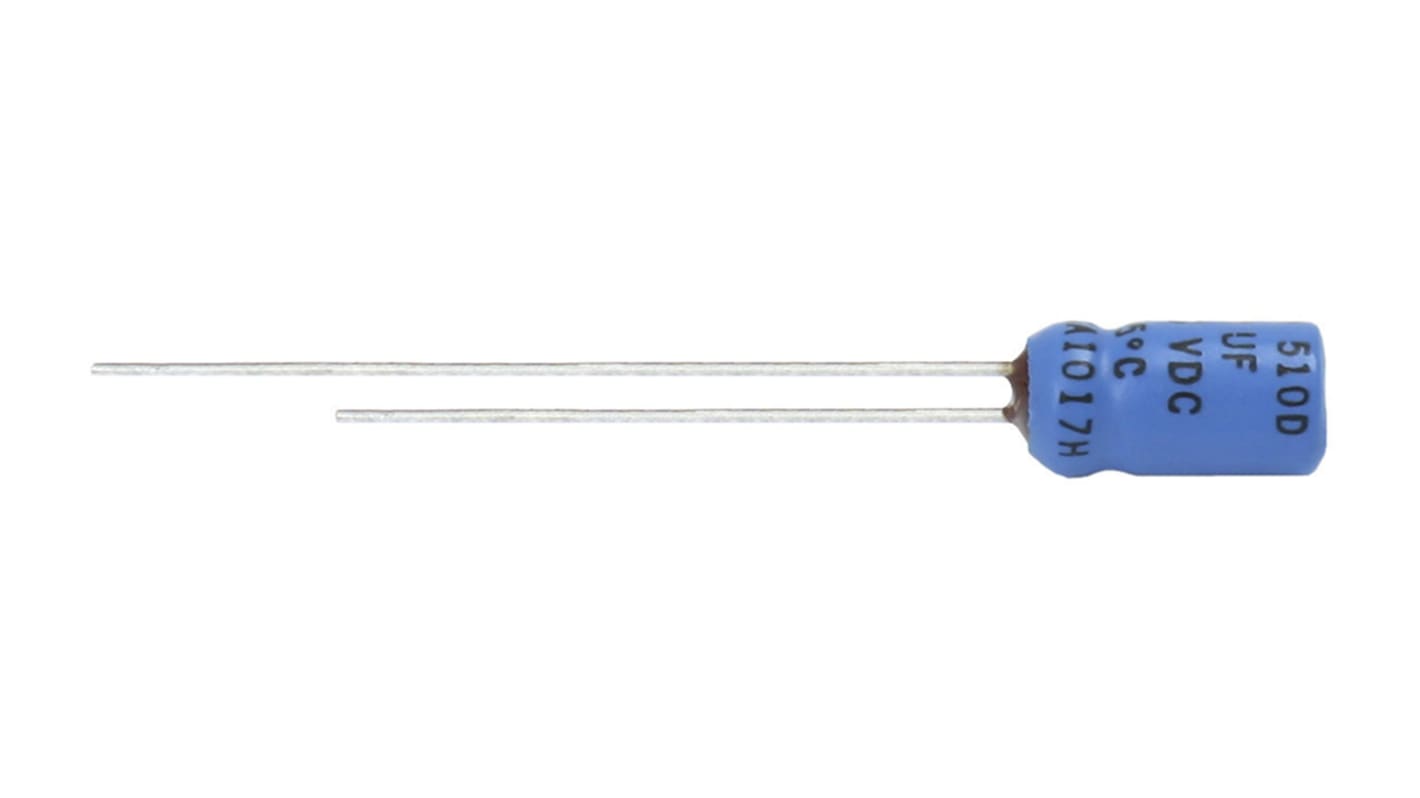

Vishay 100μF Electrolytic Capacitor 35V dc, Through Hole - 515D107M035BB6AE3
- RS Stock No.:
- 855-6126
- Mfr. Part No.:
- 515D107M035BB6AE3
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 855-6126
- Mfr. Part No.:
- 515D107M035BB6AE3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Vishay 515D Series
Vishay 515D series aluminium electrolytic capacitors are polarized radial lead capacitors that offer high CV per case size. The 515D series is suitable for a range of applications including automotive, telecommunication, industrial, audio-video, coupling, decoupling, smoothing, filtering, buffering, timing, portable and mobile equipment.
Reduced leakage current
Non-solid electrolyte
Charge and discharge proof
Non-solid electrolyte
Charge and discharge proof
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100µF |
| Voltage | 35V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 x 11.5mm |
| Height | 11.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 3.5mm |
| Lifetime | 2000h |
| Tolerance | ±20% |
| Series | 515D |
| Ripple Current | 230mA |
