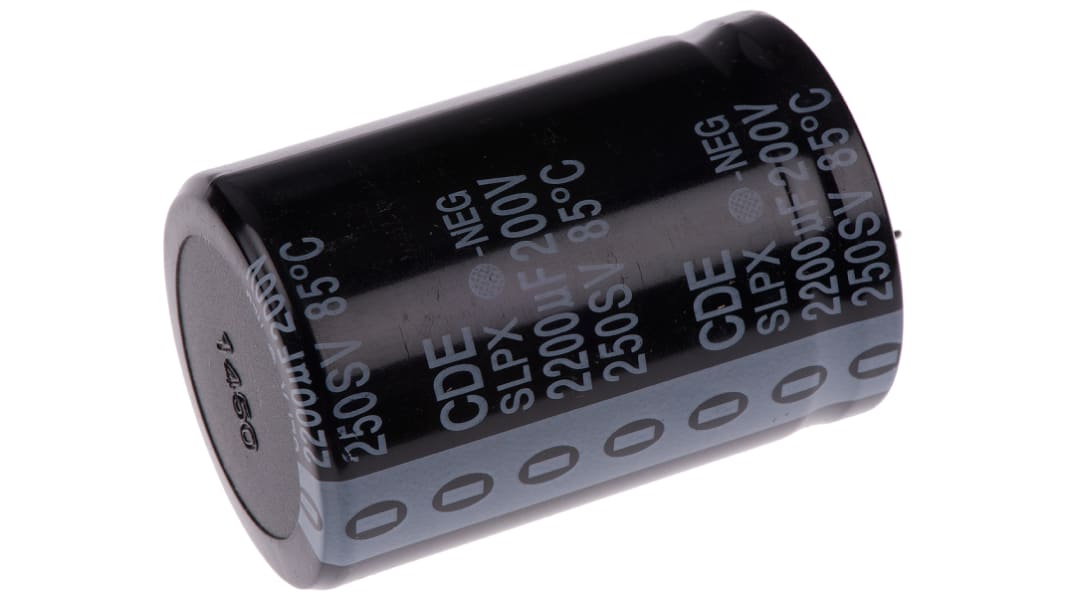

Cornell-Dubilier Aluminium Electrolytic Capacitor 2200μF 200V dc 35mm H9 SLPX Series, Through Hole Electrolytic, ±20%

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Cornell-Dubilier SLPX Series

Cornell-Dubilier SLPX series snap-In aluminium electrolytic capacitors are general purpose small cased capacitors that offer high ripple current and wide temperature range. The SLPX series is designed for DC filtering and power supply applications where long life and high ripple capability are needed.

Features and Benefits:
3000 h ripple load life at rated voltage
Small case size with high capacitance
Suitable for switching power supplies
10 mm lead spacing
High ripple current
Cost effective
22 mm to 35 mm diameter

Specifications
Attribute Value
Voltage 200 V dc
Capacitance 2200 µF
Mounting Type Through Hole
Dimensions 35 (Dia.) x 50mm
Height 50mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Package/Case H9
Lead Pitch 10mm
Lead Diameter 1.5mm
Series SLPX
Lifetime 3000h
Diameter 35mm
Equivalent Series Resistance 68mΩ
Ripple Current 7.72A
Leakage Current <=3√CV μA @ 5 min
Tolerance ±20%
Tolerance Minus -20%
Tolerance Plus 20%
Technology Electrolytic
50 In stock for FREE next working day delivery
Price Each
£ 5.61
(exc. VAT)
£ 6.73
(inc. VAT)
Units
Per unit
1 - 9
£5.61
10 - 49
£5.32
50 - 99
£5.05
100 +
£4.77
