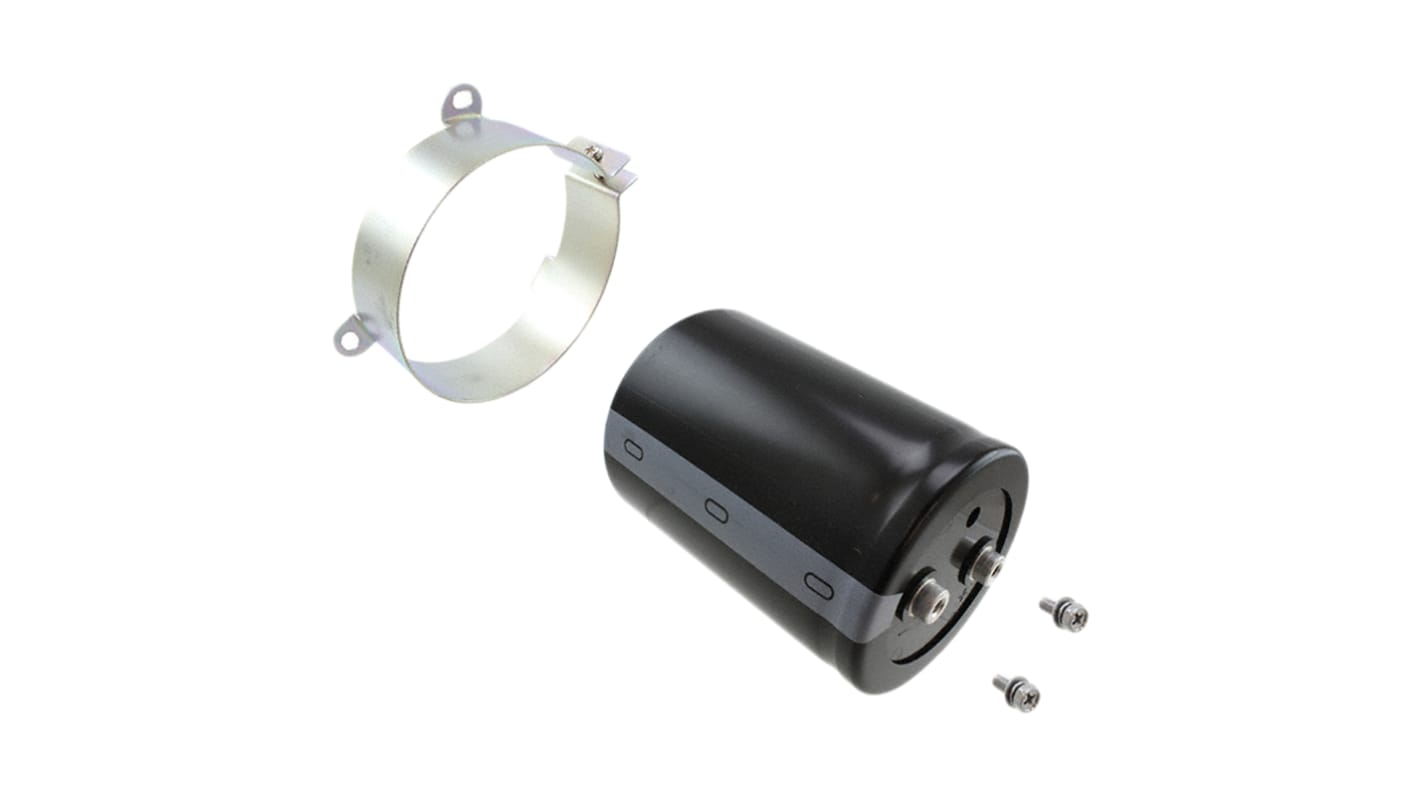

Nichicon 4700μF Electrolytic Capacitor 400V dc Screw Mount - LNY2G472MSEH

  • RS Stock No. 714-8651
  • Mfr. Part No. LNY2G472MSEH
  • Brand Nichicon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Nichicon NY Series

Nichicon NY Series aluminium electrolytic capacitors are screw terminal clamp fixing capacitors that offer a wide operating temperature range, rated capacitance range of 620 to 22000μF, high ripple current, and a load life of 2000 hours. These NY electrolytic capacitors are suited for use in industrial power supplies for inverter circuitry.

Load life of 2000 hours
High ripple current
Flame retardant

Clamp-fixing +85°C

Ideal for computer power supply applications or other applications that require long operational life

Specifications
Attribute Value
Capacitance 4700 µF
Voltage 400 V dc
Mounting Type Screw Mount
Technology Electrolytic
Dimensions 76.2 (Dia.) x 95mm
Height 95mm
Minimum Operating Temperature -40°C
Diameter 76.2mm
Maximum Operating Temperature +85°C
Lifetime 2000h
Series NY
Tolerance ±20%
Ripple Current 16.2A
Leakage Current 4110 μA
9 In stock for FREE next working day delivery
Price Each
£ 71.21
(exc. VAT)
£ 85.45
(inc. VAT)
Units
Per unit
1 - 4
£71.21
5 +
£61.50
