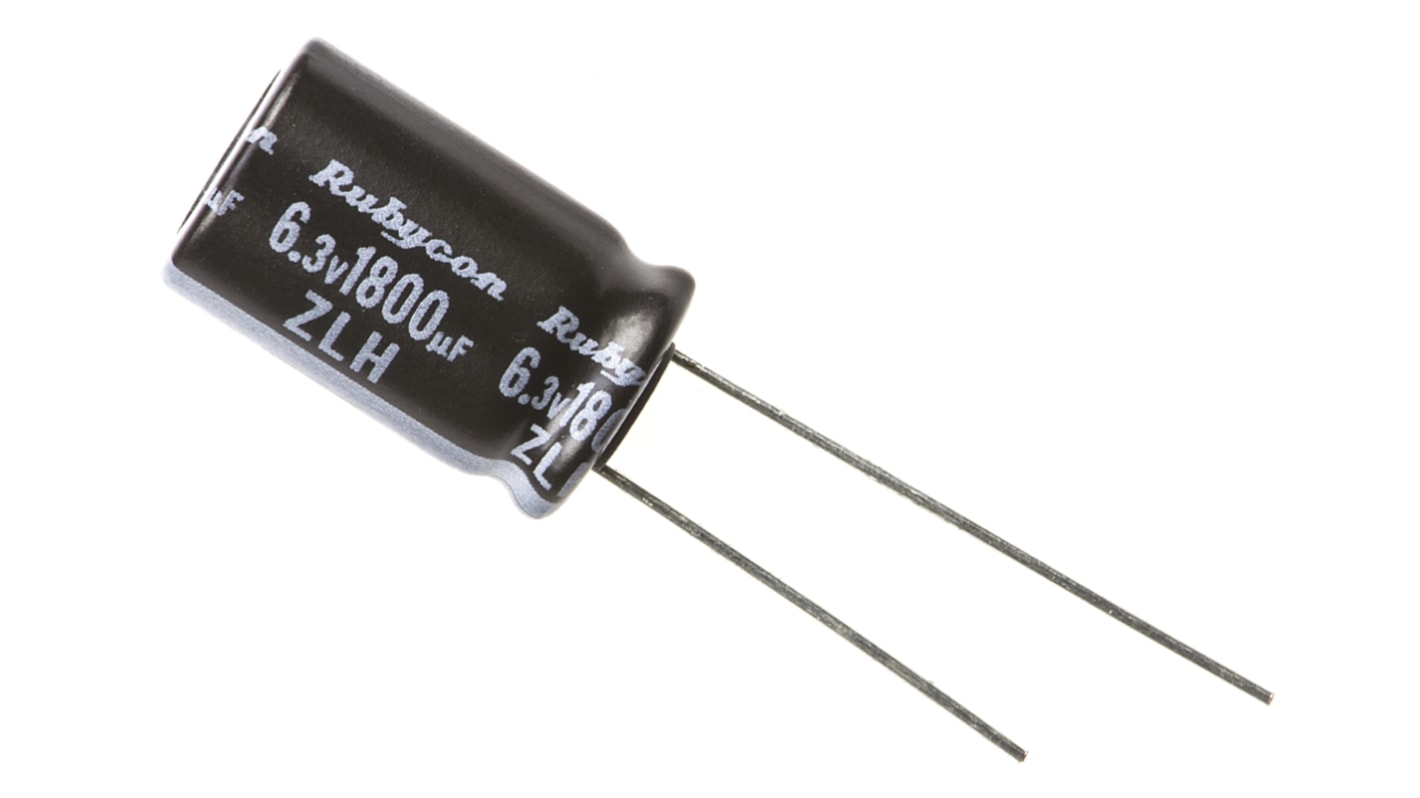

Rubycon 1800μF Electrolytic Capacitor 6.3V dc Through Hole - 6.3ZLH1800MEFC10X16

  • RS Stock No. 703-7456
  • Mfr. Part No. 6.3ZLH1800MEFC10X16
  • Brand Rubycon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

ZLH Series

ZLH Series 105°C Miniaturized, Long Life, Low impedance Aluminium Electrolytic Capacitor
High Endurance, Load Life: 6000 to 10000h at 105°C

Specifications
Attribute Value
Capacitance 1800 µF
Voltage 6.3 V dc
Mounting Type Through Hole
Technology Electrolytic
Dimensions 10 (Dia.) x 16mm
Height 16mm
Minimum Operating Temperature -40°C
Diameter 10mm
Maximum Operating Temperature +105°C
Lead Pitch 5mm
Lifetime 10000h
Series ZLH
Ripple Current 1.76A
Leakage Current 0.01 CV or 3 μA
Tolerance ±20%
