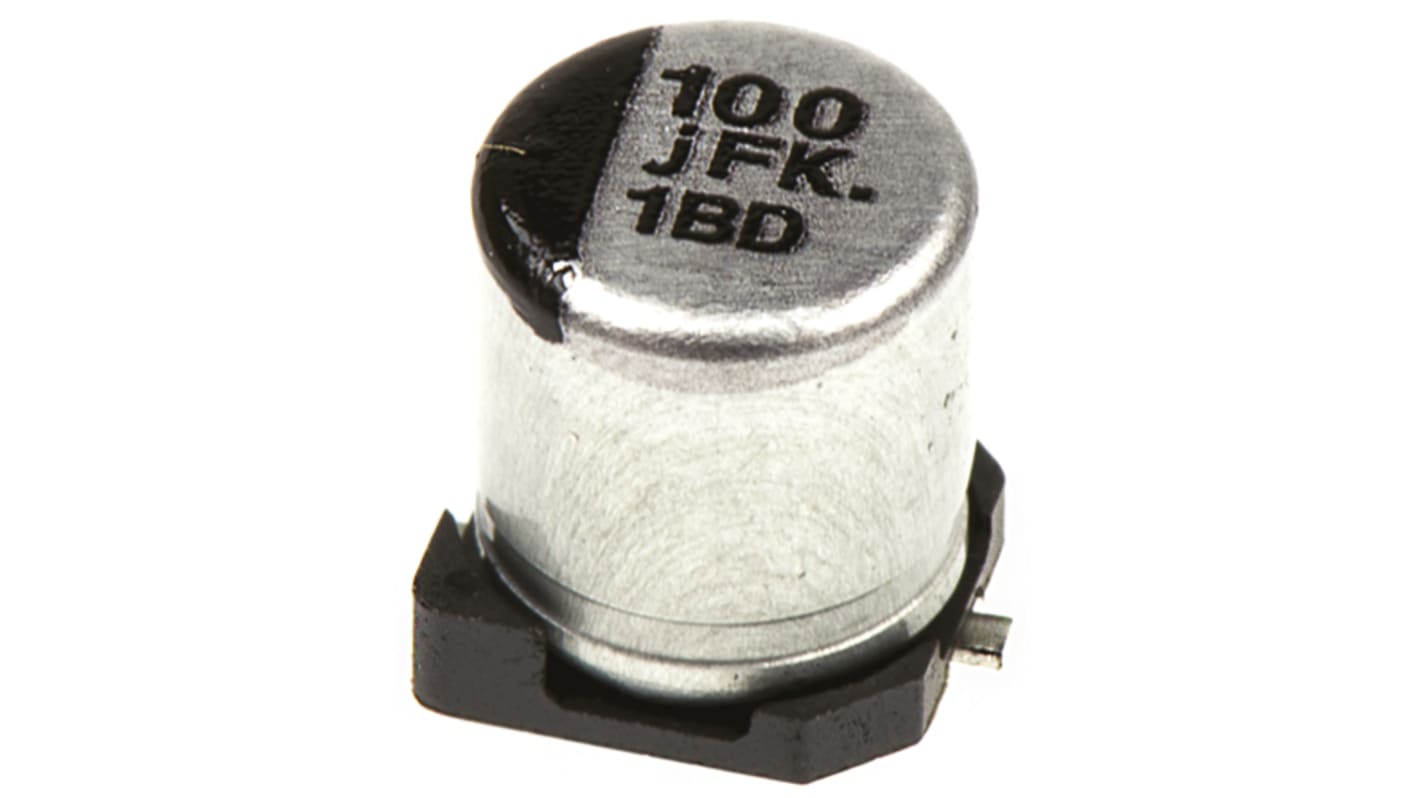

Panasonic 100μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - EEEFK0J101UR
- RS Stock No.:
- 628-3936
- Mfr. Part No.:
- EEEFK0J101UR
- Brand:
- Panasonic
65 In stock - FREE next working day delivery available
90 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.36
(exc. VAT)
£0.43
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.36 | £1.80 |
| 50 - 95 | £0.338 | £1.69 |
| 100 - 245 | £0.318 | £1.59 |
| 250 - 495 | £0.296 | £1.48 |
| 500 + | £0.268 | £1.34 |
| *price indicative | ||
- RS Stock No.:
- 628-3936
- Mfr. Part No.:
- EEEFK0J101UR
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
FK Series reels
Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series. These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications. Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100µF |
| Voltage | 6.3V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 5 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 1.5mm |
| Series | FK SMD |
| Tolerance | ±20% |
| Automotive Standard | AEC-Q200 |
| Equivalent Series Resistance | 700mΩ |
| Ripple Current | 160mA |
| Leakage Current | 6.3 μA |
| Polarised | Polar |
