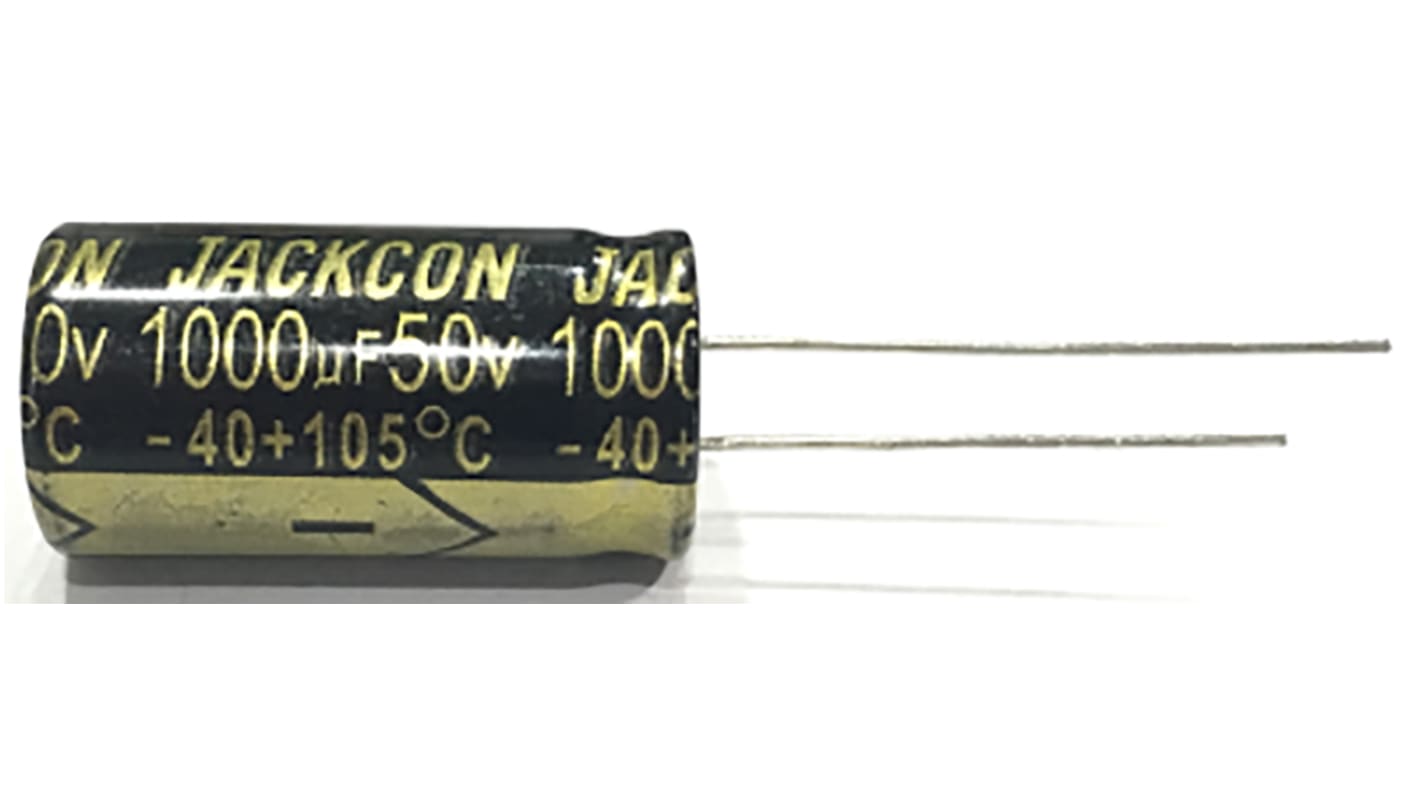

RS PRO 1000μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole
- RS Stock No.:
- 181-5064
- Brand:
- RS PRO
750 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 250)
£0.46
(exc. VAT)
£0.55
(inc. VAT)
| Units | Per unit | Per Bag* |
| 250 - 500 | £0.46 | £115.00 |
| 750 + | £0.412 | £103.00 |
| *price indicative | ||
- RS Stock No.:
- 181-5064
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Electrolytic Capacitor
The RS PRO electrolytic capacitor has a safety vent design with through-hole mounting and features a capacitance of 1000μF, at a rated voltage of 50VDC. The RS PRO capacitor has a lifetime of 1000 hours and tolerance is ±20%.
Features and Benefits
• Diameter is 13mm
• Dissipation factor is 10%
• Height is 26mm
• Lead pitch is 5mm
• Leakage current is 3μA
• Operating temperature ranging between -40°C and 105°C
• Ripple current is 2A
• Working voltage is 50VDC
• Dissipation factor is 10%
• Height is 26mm
• Lead pitch is 5mm
• Leakage current is 3μA
• Operating temperature ranging between -40°C and 105°C
• Ripple current is 2A
• Working voltage is 50VDC
Applications
• Computer peripheral
• Mother board
• Mother board
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1000µF |
| Voltage | 50V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 13 Dia. x 26mm |
| Height | 26mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 13mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 1000h |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
| Ripple Current | 2A |
| Dissipation Factor | 10% |
