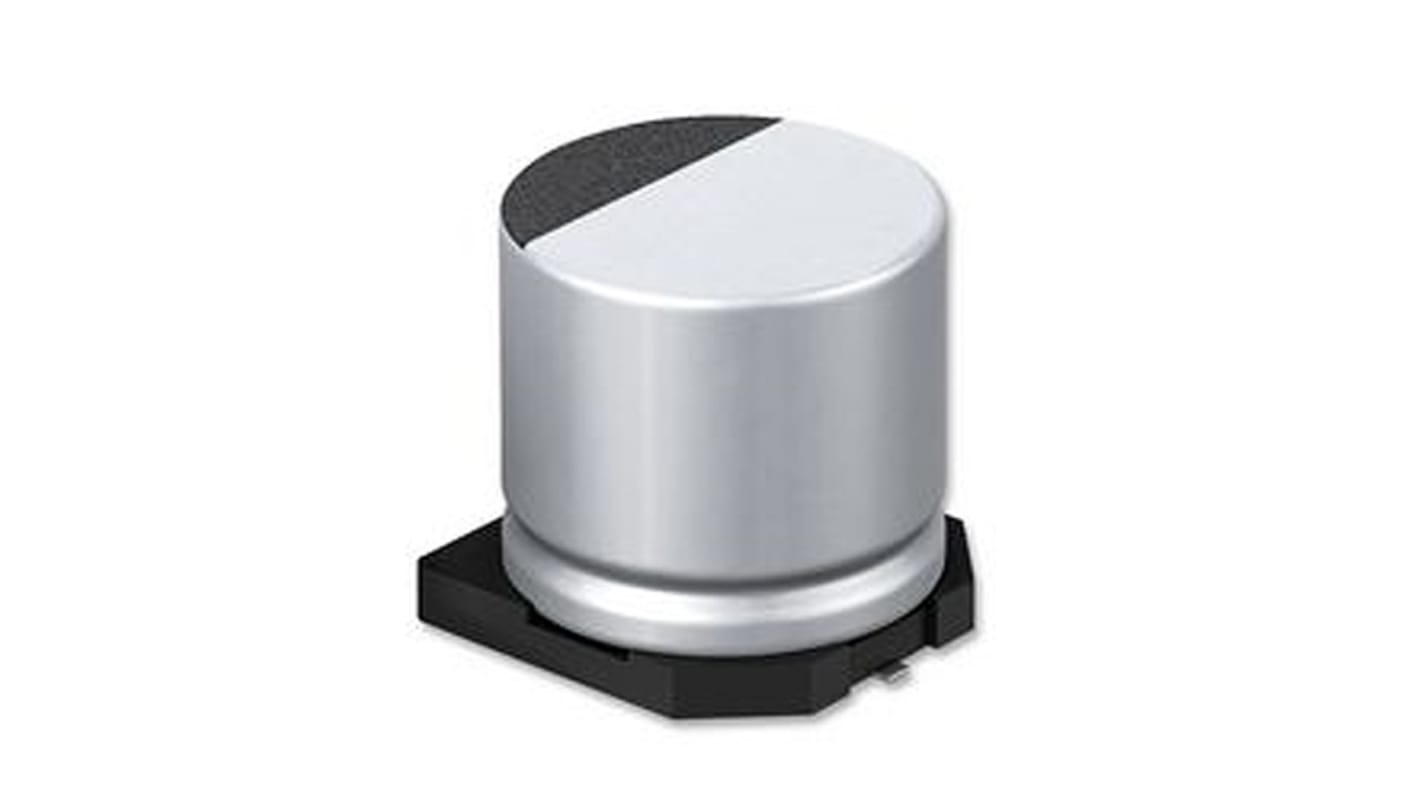

Panasonic 220μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - EEETC1V221P
- RS Stock No.:
- 172-4528
- Mfr. Part No.:
- EEETC1V221P
- Brand:
- Panasonic
Available to back order for despatch 20/09/2024
Added
Price Each (On a Reel of 500)
£0.355
(exc. VAT)
£0.426
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 + | £0.355 | £177.50 |
| *price indicative | ||
- RS Stock No.:
- 172-4528
- Mfr. Part No.:
- EEETC1V221P
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Panasonic TC Series High Temperature Lead Free Reflow
Panasonic TC series aluminium electrolytic capasitors are high temperature lead free reflow. These capacitors offer 50% higher ripple than the TP series. The temperature range of these capacitors is-40°c to +125°C. The TC series offer 3000h endurance at 125°C.The electrolytic capacitors have a nominal capacitance range of 47μF to 470μF with a capacitance tolerance of ±20% (120Hz/+20°C).
Approvals
AEC-Q200 qualified
SMT 125°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 220µF |
| Voltage | 35V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 3000h |
| Lead Pitch | 4.6mm |
| Series | TC |
| Equivalent Series Resistance | 0.15 Ω @ +20 °C, 2 Ω @ -40 °C |
| Tolerance | ±20% |
| Leakage Current | ≤0.01 CV μA |
| Polarised | Polar |
| Ripple Current | 750mArms |
| Dissipation Factor | 0.16% |
