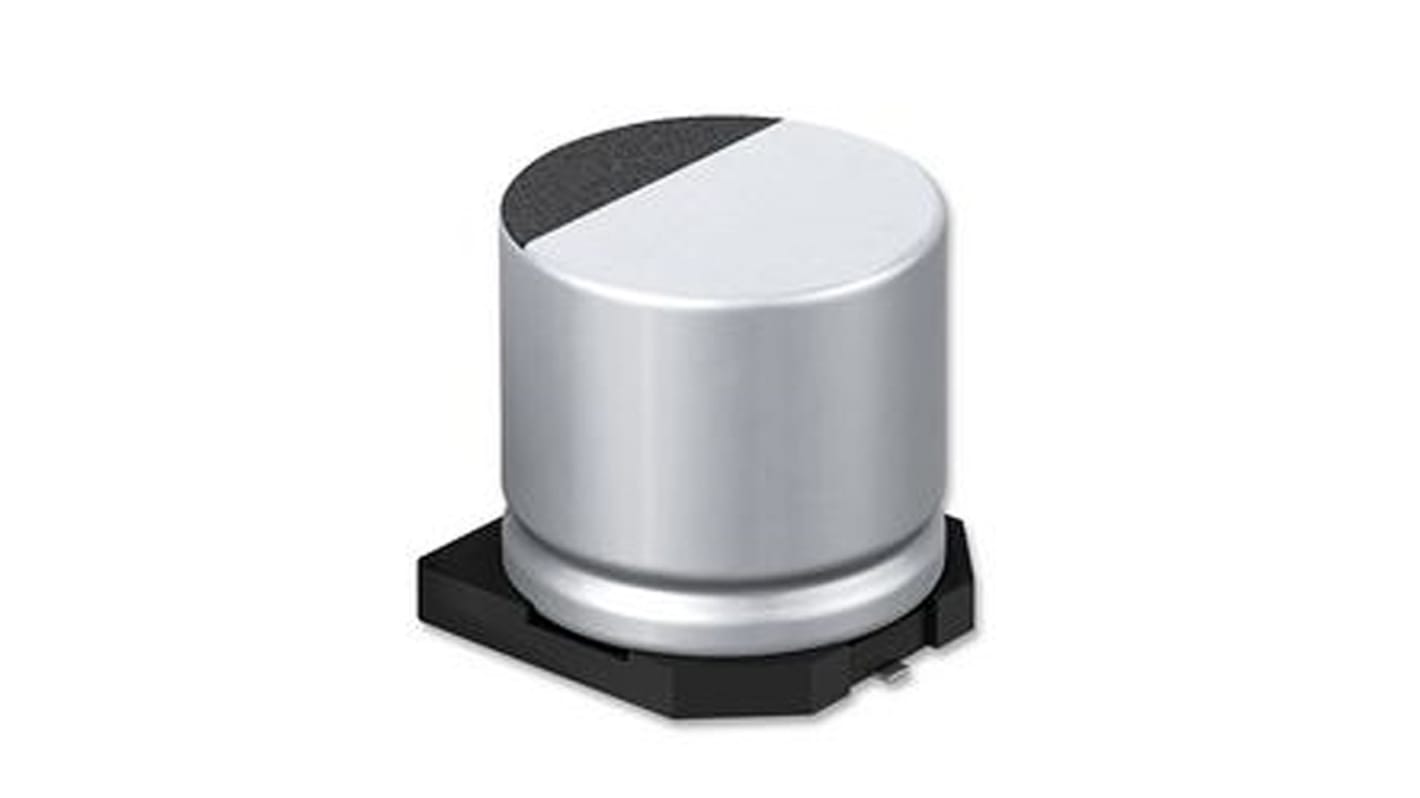

Panasonic 390μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - EEETC1V391UP
- RS Stock No.:
- 172-4156
- Mfr. Part No.:
- EEETC1V391UP
- Brand:
- Panasonic
1000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 500)
£0.391
(exc. VAT)
£0.469
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 + | £0.391 | £195.50 |
| *price indicative | ||
- RS Stock No.:
- 172-4156
- Mfr. Part No.:
- EEETC1V391UP
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
Panasonic TCU Series High Temperature Lead Free Reflow
Panasonic TCU series aluminium electrolytic capacitors feature a high ripple current and 3000 h endurance at 125°C,. The temperature range of these capacitors is -40°C to 125°C.The capacitors offer a rated voltage range of 10 V dc to 35 V dc. These aluminium electrolytic capacitors are available in 8 mm and 10 mm diameters.
Approvals
AEC-Q200 qualified
SMT 125°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 390µF |
| Voltage | 35V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 4.6mm |
| Lifetime | 3000h |
| Series | TCU |
| Tolerance | ±20% |
| Leakage Current | ≤0.01 CV μA |
| Polarised | Polar |
| Automotive Standard | AEC-Q200 |
| Ripple Current | 750mArms |
| Equivalent Series Resistance | 0.15 Ω @ +20 °C, 2 Ω @ -40 °C |
| Dissipation Factor | 0.16% |
