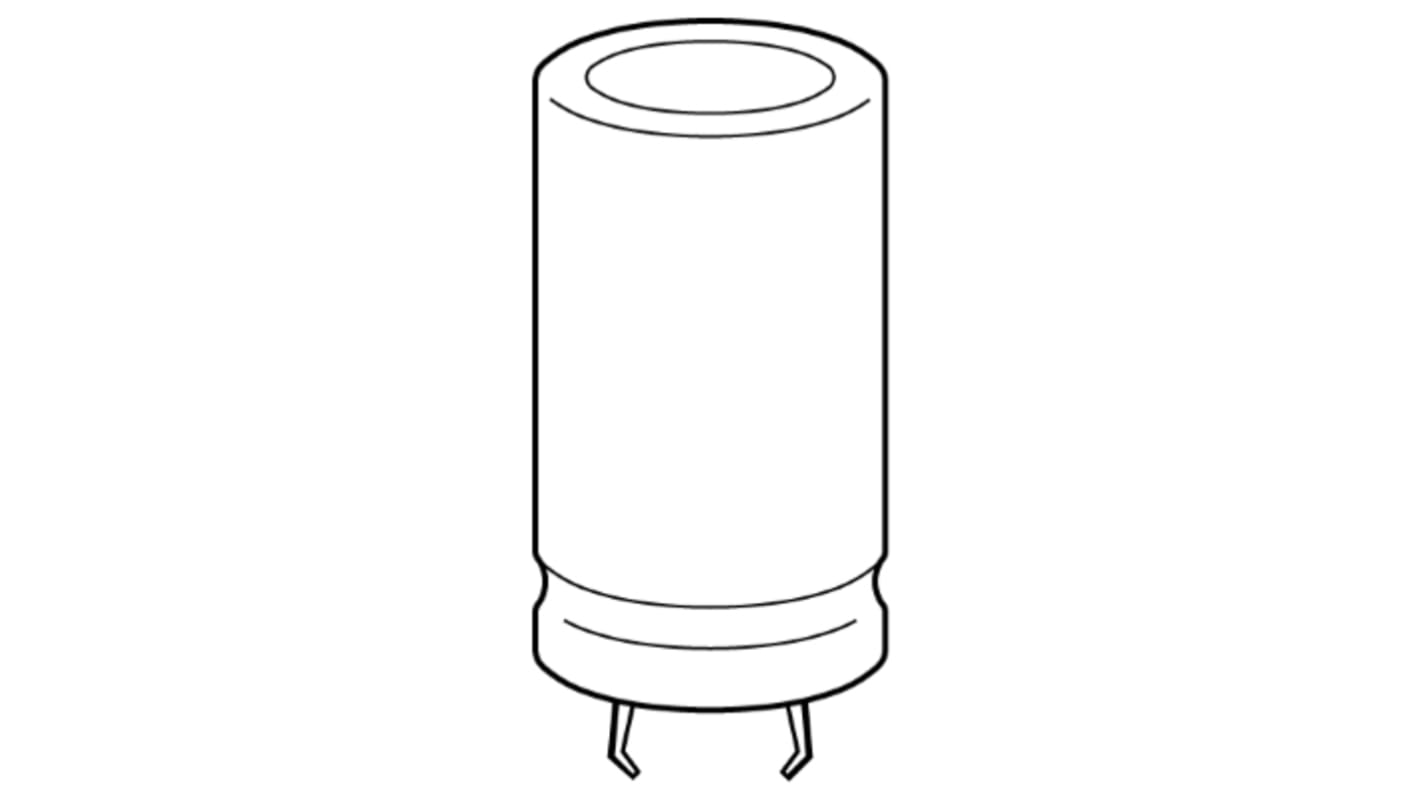

EPCOS 470μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 45mm +85°C 35mm 10mm

  • RS Stock No. 171-3221
  • Mfr. Part No. B43544E5477M000
  • Brand EPCOS
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

Applications:
Frequency converters
Solar inverters
Uninterruptible power supplies
Professional power supplies
Medical appliances
Features:
Outstanding ripple current capability
Base cooling available upon request for case sizes with
diameters of 30 to 35 mm and lengths of 35 to 55 mm
Rated voltages up to 550 V DC
Very high CV product, compact
High reliability
Extremely improved performance at high frequencies
Very low ESR at operating conditions above 50 °C
Optimized internal thermal resistance
Construction:
Charge/discharge-proof, polar
Aluminium case, fully insulated with PET or PVC
Version with additional PET insulation cap on terminal side
available for insulating the capacitor from the PCB
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on case surface
Minus pole not insulated from case
Overload protection by safety vent on the case wall
Terminals

Specifications
Attribute Value
Capacitance 470 µF
Voltage 450 V dc
Mounting Type Snap-In
Technology Electrolytic
Dimensions 35 (Dia.) x 45mm
Height 45mm
Minimum Operating Temperature -40°C
Diameter 35mm
Maximum Operating Temperature +85°C
Lifetime 3000h
Lead Pitch 10mm
Series B43544
Equivalent Series Resistance 210mΩ
Polarised Polar
Dissipation Factor 0.2%
Ripple Current 2.83A
Tolerance ±20%
480 In stock for FREE next working day delivery
Price Each (In a Box of 60)
£ 4.43
(exc. VAT)
£ 5.32
(inc. VAT)
Units
Per unit
Per Box*
60 - 120
£4.43
£265.80
180 +
£4.208
£252.48
*price indicative
