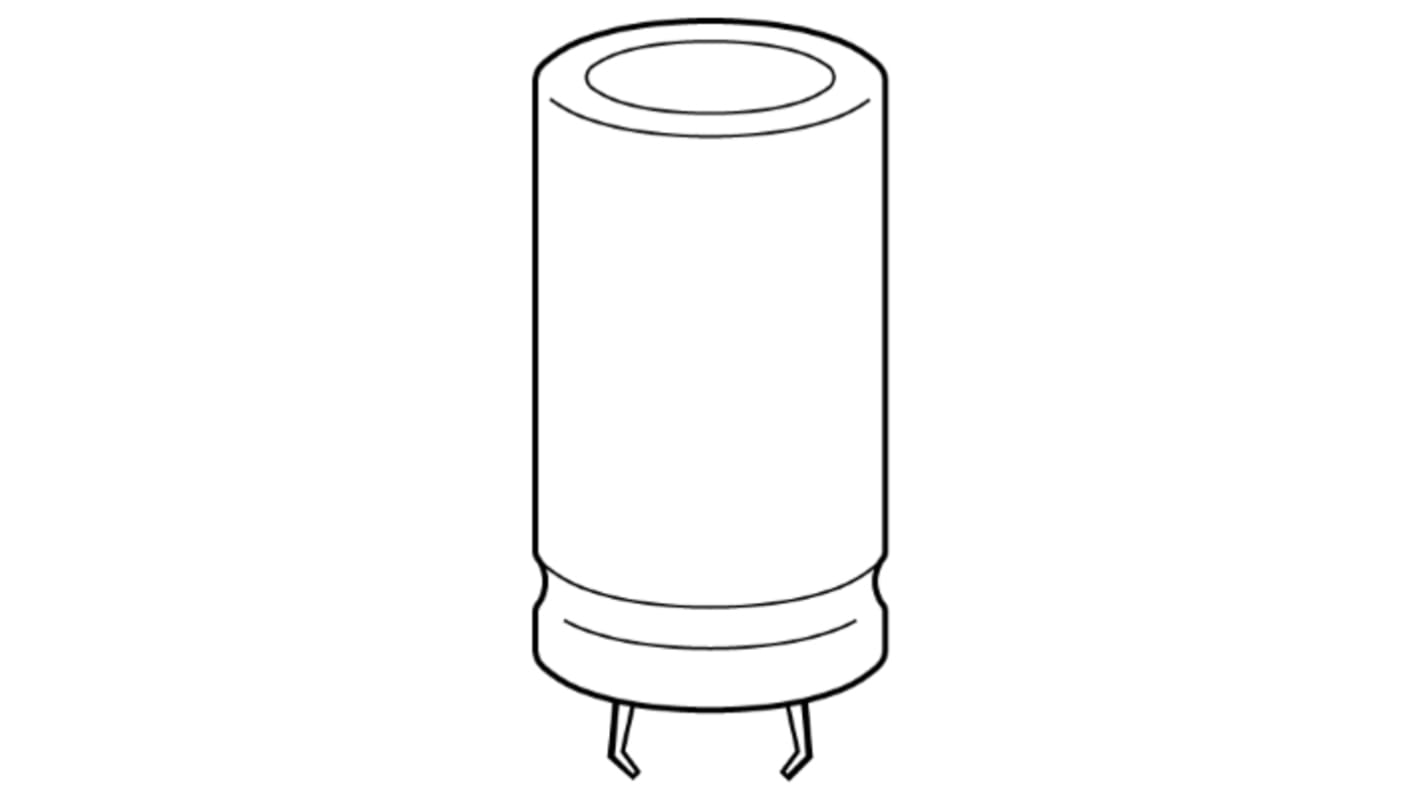

Epcos 2200μF Electrolytic Capacitor 100V dc, Snap-In - B41231C9228M000

  • RS Stock No. 171-3207
  • Mfr. Part No. B41231C9228M000
  • Brand EPCOS
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Applications:
Professional power supplies
Features:
High ripple current capability
Useful life of 2000 h at 85 °C
Construction:
Aluminium case, fully insulated with PET or PVC
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on the insulating sleeve
Case with safety vent on the base

Specifications
Attribute Value
Capacitance 2200 µF
Voltage 100 V dc
Mounting Type Snap-In
Technology Electrolytic
Dimensions 30 (Dia.) x 30mm
Height 30mm
Minimum Operating Temperature -40°C
Diameter 30mm
Maximum Operating Temperature +85°C
Lead Pitch 10mm
Lifetime 2000h
Series B41231
Polarised Polar
Dissipation Factor 0.15%
Ripple Current 3.66A
Tolerance ±20%
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each (In a Box of 80)
£ 1.46
(exc. VAT)
£ 1.75
(inc. VAT)
Units
Per unit
Per Box*
80 - 160
£1.46
£116.80
240 +
£1.114
£89.12
*price indicative
