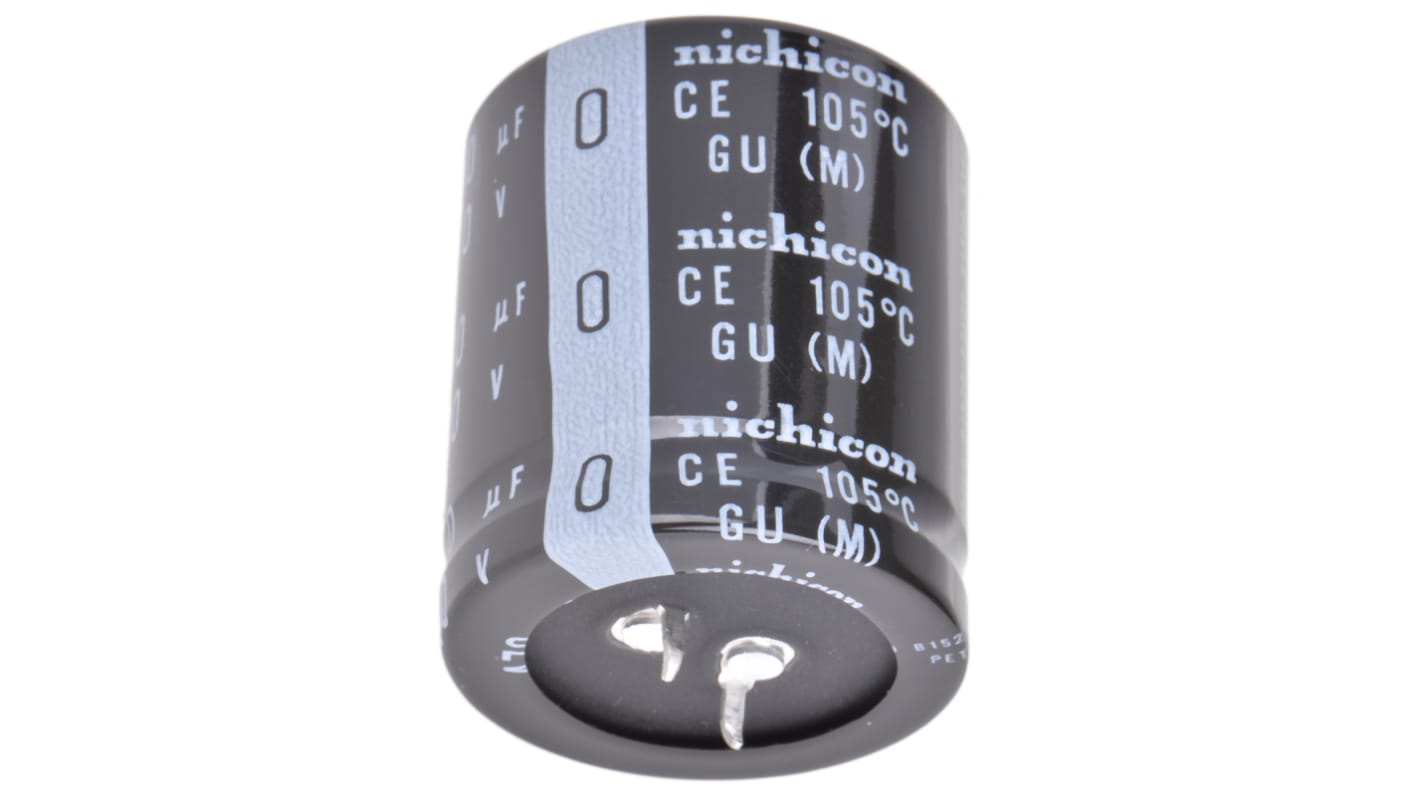

Nichicon 470μF Aluminium Electrolytic Capacitor 400V dc, Snap-In - LGU2G471MELC

RS Stock No.:: 165-3892
Mfr. Part No.:: LGU2G471MELC
Brand:: Nichicon

Nichicon 470μF Aluminium Electrolytic Capacitor 400V dc, Snap-In - LGU2G471MELC

Available to back order for despatch 10/06/2024

Added

Price Each (In a Bag of 200)

£4.616

(exc. VAT)

£5.539

(inc. VAT)

Units	Per unit	Per Bag*
200 +	£4.616	£923.20
*price indicative

RS Stock No.:: 165-3892
Mfr. Part No.:: LGU2G471MELC
Brand:: Nichicon

Technical Reference

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Nichicon GU Series

Nichicon GU Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GU Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 16 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors.

Snap-In terminals
Endurance rating ripple current 3000 hours guaranteed
PET sleeve (non PVC)
Lead-free terminal plating

Specifications

Attribute	Value
Capacitance	470µF
Voltage	400V dc
Mounting Type	Snap-In
Technology	Aluminium Electrolytic
Dimensions	35 (Dia.) x 40mm
Height	40mm
Minimum Operating Temperature	-25°C
Diameter	35mm
Maximum Operating Temperature	+105°C
Lead Pitch	10mm
Lifetime	3000h
Leakage Current	1300 μA
Ripple Current	1.9A
Tolerance	±20%
Series	GU
