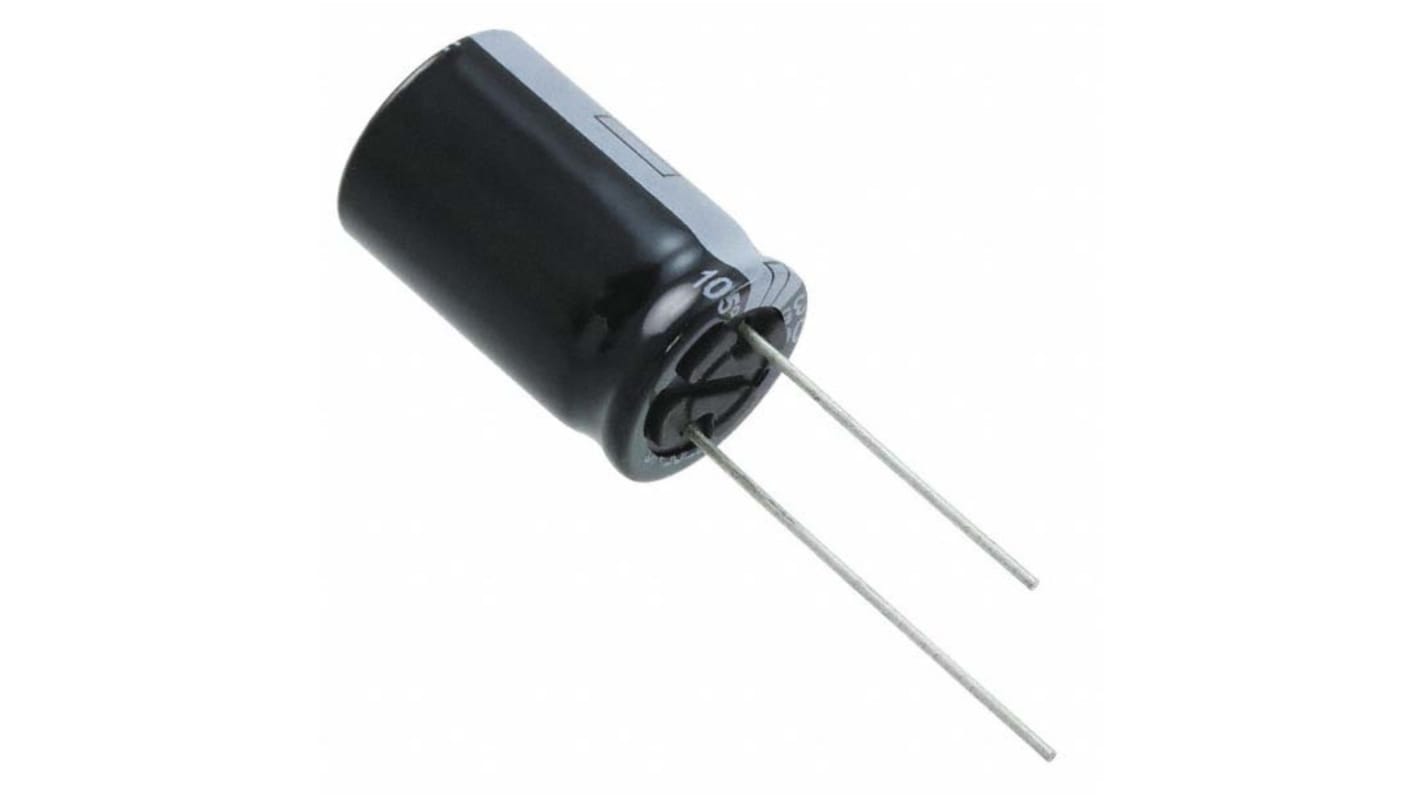

Panasonic 6200μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - EEUFS1C622
- RS Stock No.:
- 145-8496
- Mfr. Part No.:
- EEUFS1C622
- Brand:
- Panasonic
100 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.71
(exc. VAT)
£2.05
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £1.71 | £8.55 |
| 10 - 45 | £1.21 | £6.05 |
| 50 + | £1.15 | £5.75 |
| *price indicative | ||
- RS Stock No.:
- 145-8496
- Mfr. Part No.:
- EEUFS1C622
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Low ESR, Miniaturized (1 size smaller than series FR)
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Specifications
Attribute | Value |
|---|---|
| Capacitance | 6200µF |
| Voltage | 16V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 16 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 7.5mm |
| Ripple Current | 3820mArms |
| Series | FS |
| Leakage Current | ≤0.01 CV μA |
| Polarised | Polar |
| Tolerance | ±20% |
| Dissipation Factor | 0.16% |
