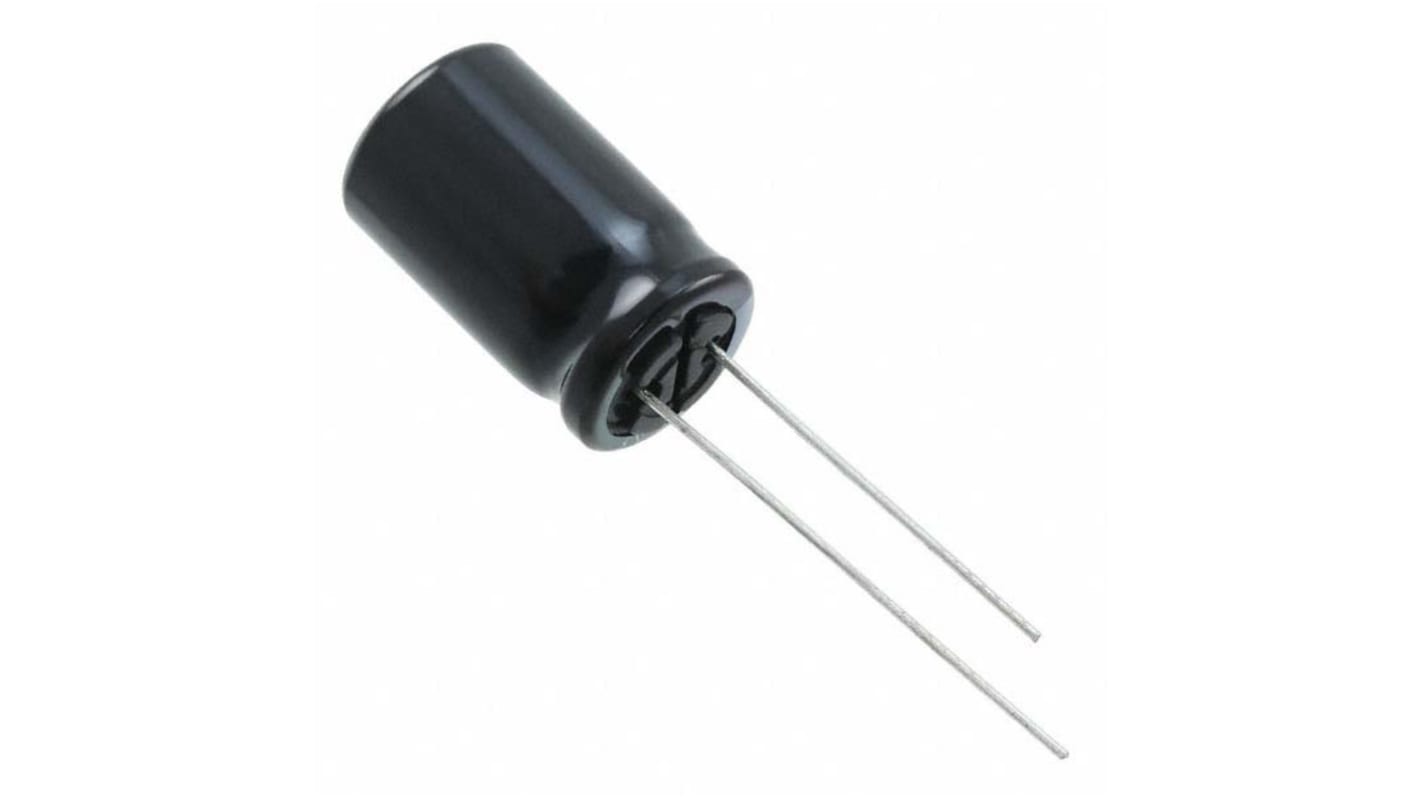

Panasonic 2400μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - EEUFS1C242
- RS Stock No.:
- 145-8413
- Mfr. Part No.:
- EEUFS1C242
- Brand:
- Panasonic
Available to back order for despatch 27/09/2024
Added
Price Each (In a Box of 200)
£0.536
(exc. VAT)
£0.643
(inc. VAT)
| Units | Per unit | Per Box* |
| 200 - 800 | £0.536 | £107.20 |
| 1000 + | £0.523 | £104.60 |
| *price indicative | ||
- RS Stock No.:
- 145-8413
- Mfr. Part No.:
- EEUFS1C242
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Low ESR, Miniaturized (1 size smaller than series FR)
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2400µF |
| Voltage | 16V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 12.5 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 5mm |
| Series | FS |
| Leakage Current | ≤0.01 CV μA |
| Ripple Current | 2600mArms |
| Tolerance | ±20% |
| Polarised | Polar |
| Dissipation Factor | 0.16% |
