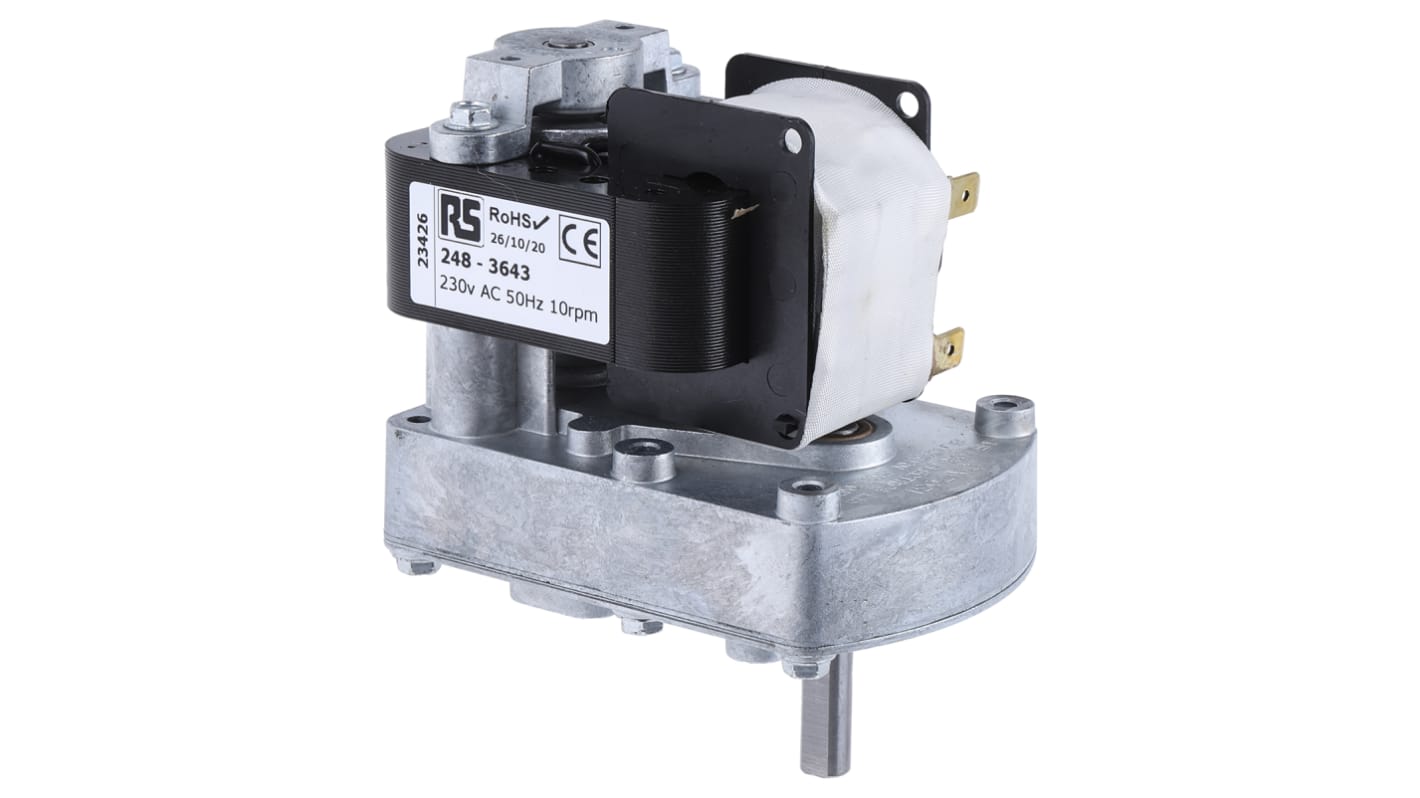

Mellor Electric Clockwise Shaded Pole Geared AC Geared Motor, 24 W, 230 V
- RS Stock No.:
- 248-3643
- Mfr. Part No.:
- UB1001
- Brand:
- Mellor Electric
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£62.92
(exc. VAT)
£75.50
(inc. VAT)
| Units | Per unit |
| 1 + | £62.92 |
- RS Stock No.:
- 248-3643
- Mfr. Part No.:
- UB1001
- Brand:
- Mellor Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Shaded Pole Motor, Type 100
A higher power shaded pole motor available with or without a gearbox, suitable for many applications requiring a low cost unit, which is quiet running and has compact dimensions. Typical applications include test equipment, industrial process equipment. Class F insulation and a thermal cut-out protection. Motor without gearbox has a dual output shaft
Note
This motor is not rated for continuous operation. Maximum on time 20 minutes. Minimum off time 40 minutes.
Specifications
Attribute | Value |
|---|---|
| Power Rating | 24 W |
| AC Motor Type | Shaded Pole Geared |
| Supply Voltage | 230 V |
| Output Speed | 10 rpm |
| Gearhead Type | Spur |
| Shaft Diameter | 7.95mm |
| Width | 50mm |
| Length | 62mm |
| Maximum Output Torque | 1.68 Ncm |
| Rotation | Clockwise |
| Dimensions | 62 x 50 x 73 mm |
| Depth | 73mm |
