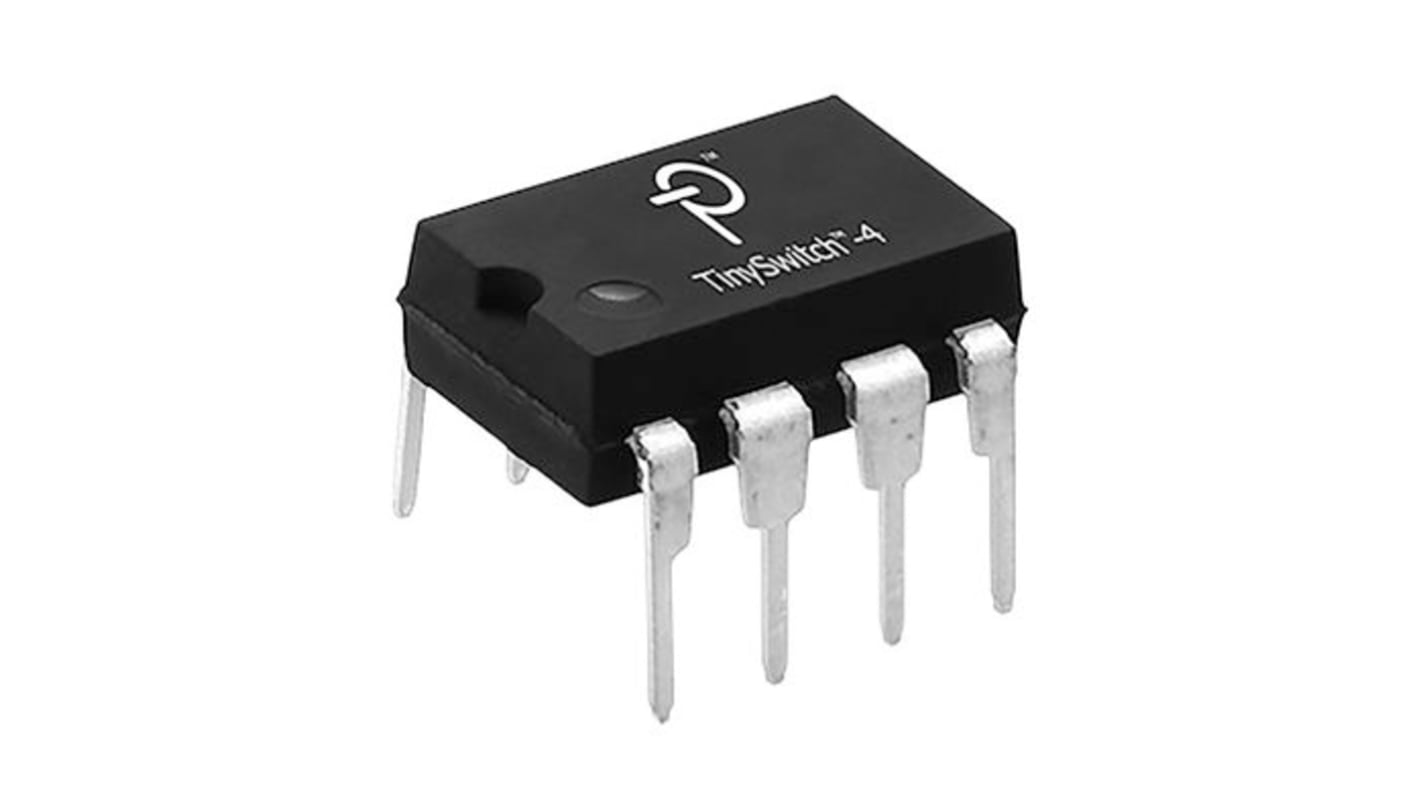

Power Integrations, AC-DC Converter, Minimum of 50 V dc 7-Pin, DIP TNY288PG
- RS Stock No.:
- 146-2509
- Mfr. Part No.:
- TNY288PG
- Brand:
- Power Integrations
200 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£0.873
(exc. VAT)
£1.048
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | £0.873 | £43.65 |
| *price indicative | ||
- RS Stock No.:
- 146-2509
- Mfr. Part No.:
- TNY288PG
- Brand:
- Power Integrations
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TinySwitch-4 series Offline AC-DC Converters
A range of energy-efficient, off-line AC-DC converters from Power Integrations. The TinySwitch-4 series combine a high voltage power MOSFET and ON/OFF flyback power supply controller in a single compact package. These devices have excellent no-load and light-load efficiency and extremely fast transient response and are available in both through-hole and SMT options.
• Line compensated overload power reduces maximum overload variation over input voltage range
• Simple ON/OFF control, no loop compensation needed
• Selectable current limit through BP/M capacitor value
• Self-biased: no bias winding or bias components
• Frequency jittering reduces EMI filter costs
• Pin-out simplifies heat sinking to the PCB
• Accurate hysteretic thermal shutdown protection with automatic recovery
• Auto-restart delivers <3% of maximum power in short-circuit and open-loop fault conditions
• Extended creepage between MOSFET drain and all other pins
• Easily meets all global energy efficiency regulations
• No-load <30 mW with bias winding, <150 mW at 265 VAC without bias winding
• Simple ON/OFF control, no loop compensation needed
• Selectable current limit through BP/M capacitor value
• Self-biased: no bias winding or bias components
• Frequency jittering reduces EMI filter costs
• Pin-out simplifies heat sinking to the PCB
• Accurate hysteretic thermal shutdown protection with automatic recovery
• Auto-restart delivers <3% of maximum power in short-circuit and open-loop fault conditions
• Extended creepage between MOSFET drain and all other pins
• Easily meets all global energy efficiency regulations
• No-load <30 mW with bias winding, <150 mW at 265 VAC without bias winding
AC-DC Converters, Power Integrations
Specifications
Attribute | Value |
|---|---|
| Maximum Input Voltage | 265 V ac |
| Mounting Type | Through Hole |
| Pin Count | 7 |
| Dimensions | 9.83 x 6.6 x 3.68mm |
| Maximum Output Current | 1.95A |
| Package Type | DIP |
| Input Voltage Range | 85 → 265 V ac |
| Current Limit | 588mA |
| Minimum Input Voltage | 85 V ac |
| Maximum Operating Temperature | +150 °C |
| Length | 9.83mm |
| Width | 6.6mm |
| Height | 3.68mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 50 V dc |
| Output Current Range | Maximum of 1950 mA |
| Output Voltage Range | Minimum of 50 V dc |
| Typical Operating Supply Voltage | 230 V ac |
| Operating Temperature Range | -40 → +150 °C |
