RS PRO 6W Plug-In AC/DC Adapter 12V dc Output, 500mA Output
- RS Stock No.:
- 903-2863
- Brand:
- RS PRO
11 In stock - FREE next working day delivery available
Added
Price Each
£18.82
(exc. VAT)
£22.58
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £18.82 |
| 5 - 9 | £18.25 |
| 10 - 24 | £17.69 |
| 25 - 49 | £17.12 |
| 50 + | £16.56 |
- RS Stock No.:
- 903-2863
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
RS PRO, 6 W Plug In Power Supply 12 V DC, 500 mA, Level VI Efficiency, 1 Output Power Supply, European, Interchangeable

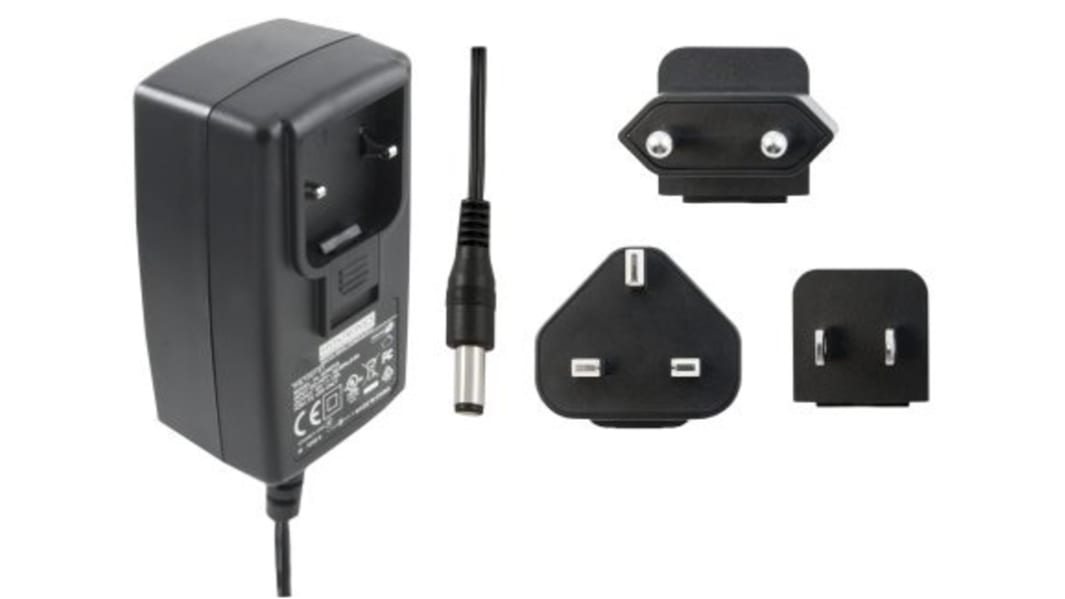

This 12 V DC adapter with interchangeable plugs from the RS PRO range is designed to work with European, US and UK sockets. The 6 W plug-in power supply has three AC plugs that can be changed quickly, making it a convenient and compact solution to use when travelling.
This model comes with both overvoltage and short-circuit protection to ensure safe use. It also has a 1.5-metre cable, so it reaches a range of outlets easily.
The adapter has been tested to meet US-recognised Energy Efficiency Level VI standards. It's suitable for use with a number of DC-powered devices including external drives and laptops.
This model comes with both overvoltage and short-circuit protection to ensure safe use. It also has a 1.5-metre cable, so it reaches a range of outlets easily.
The adapter has been tested to meet US-recognised Energy Efficiency Level VI standards. It's suitable for use with a number of DC-powered devices including external drives and laptops.
Features and Benefits
- Universal plug input connector
- Input frequency range of 47 to 63 Hz
- Input voltage rating of 100 V AC to 240 V AC
- Line regulation of ±3%
- Maximum input current of 300 mA
- Operating temperature range of 0°C to +40°C
- Dimensions of 64 (length) x 40.5 (width) x 30 mm (depth)
- Single output
- Centre positive output connector dimensions of 2.1 x 5.5 x 12 mm
- Output current of 500 mA
- Ripple and noise of
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | European, Interchangeable UK, US Plugtop |
| Output Voltage | 12V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 500mA |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 6W |
| Cable Length | 1.5m |
| Standards Met | CB, CCC, CE, cUL/UL, cULus, GS, RCM, VI |
| Length | 64mm |
| Type | AC/DC Adapter |
| Energy Efficiency Level | VI |
| Minimum Temperature | 0°C |
| Width | 40.5mm |
| Depth | 30mm |
