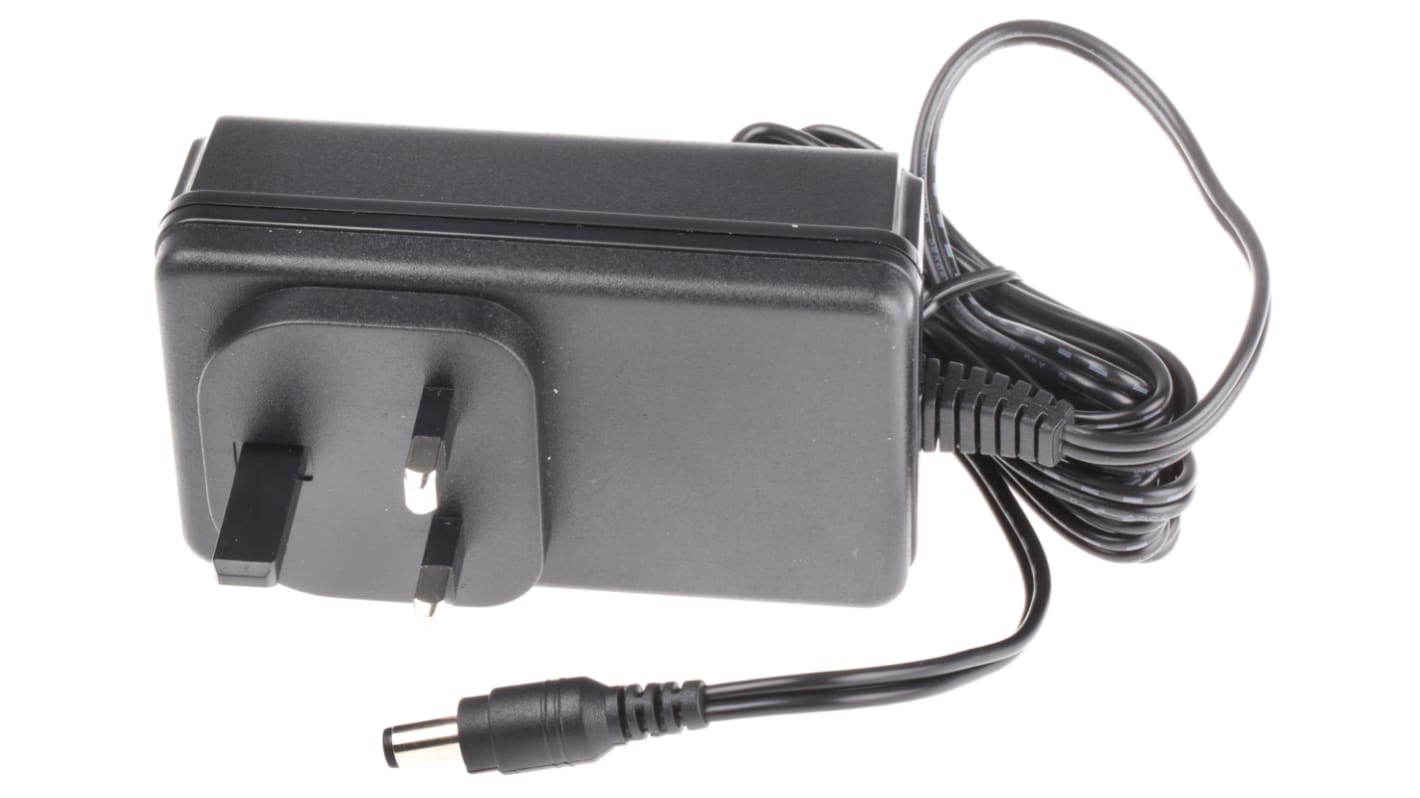

RS PRO 60W Plug In Power Supply 12V Output, 0 → 5A Output
- RS Stock No.:
- 816-0090
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 816-0090
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Plug-in Switch Mode Power Supplies - ECP UK Series
Energy saving external switch mode plug-top power supplies that are compact and lightweight. These external switch mode plug-top power supplies are Class II double insulated and ErP level V compliant.
Very low No-load power consumption
Regulated output
ErP level V compliant
Class II double insulated
Short circuit, overload voltage and overload current protection
1.2 metre (approx) output lead with 2.1x5.5x9.5mm centre positive output connector
EMC compliance to EN 55022 Class B
Regulated output
ErP level V compliant
Class II double insulated
Short circuit, overload voltage and overload current protection
1.2 metre (approx) output lead with 2.1x5.5x9.5mm centre positive output connector
EMC compliance to EN 55022 Class B
Note
Conforms to Energy-related Product Directive 2009/125/EC,MTBF to MIL-HDBK-217F (25°C)
Specifications
Attribute | Value |
|---|---|
| Plug Type | Type G - British 3-Pin |
| Output Voltage | 12V |
| Input Voltage | 90 → 264V ac |
| Output Current | 0 → 5A |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 9.5 mm Centre Positive |
| Number of Outputs | 1 |
| Power Rating | 60W |
| Efficiency | 81% |
| Standards Met | EN 55022 Class B, EN 61000-11, EN 61000-2, EN 61000-3, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-6, EN 61000-8, TUV EN 60950-1, UL 60950-1 |
| Depth | 34.7mm |
| Minimum Temperature | 0°C |
| Energy Efficiency Level | V |
| Type | Power Adapter |
| Width | 54mm |
| Length | 96mm |
